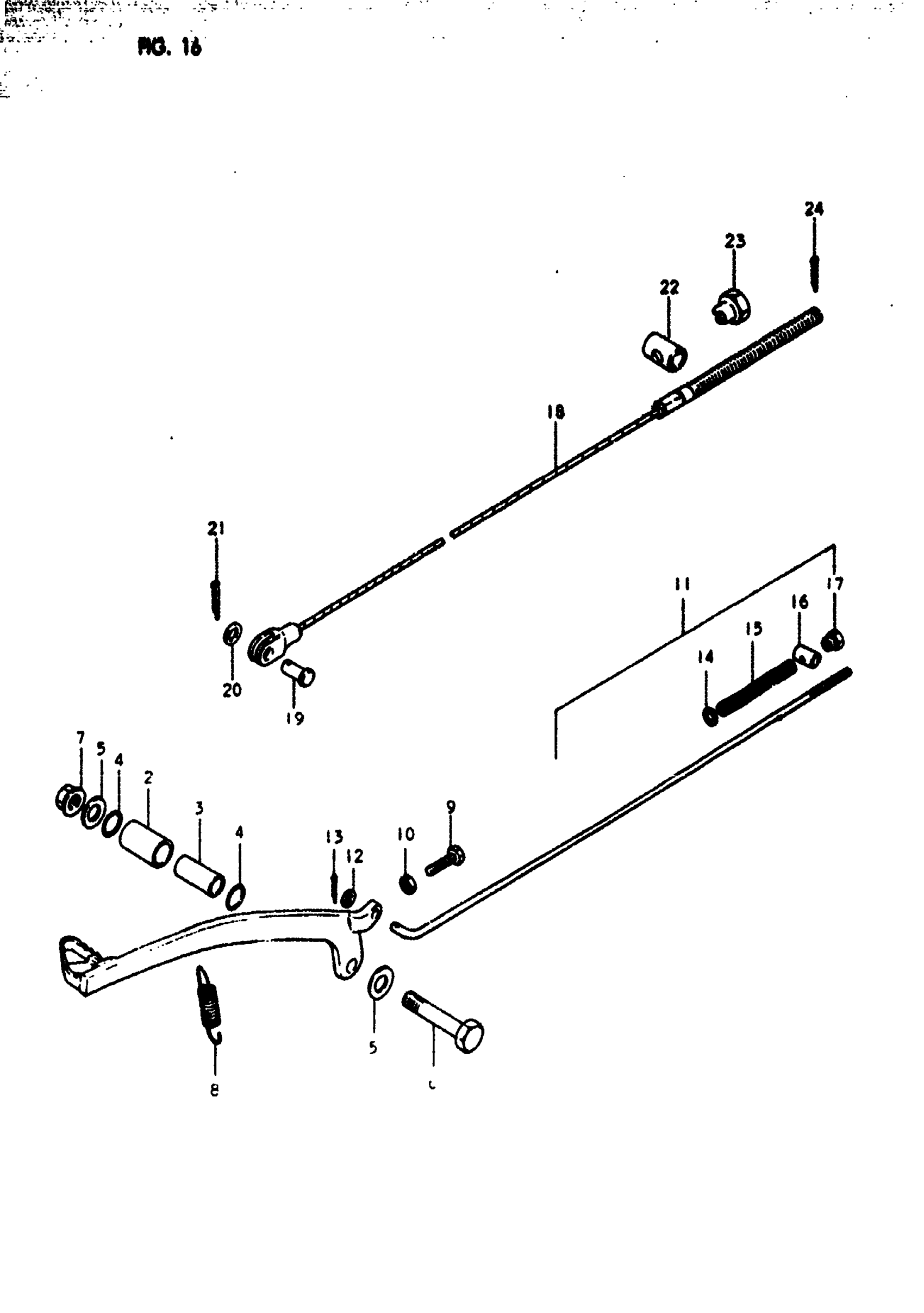

Suzuki RM125 (1980) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE | N This part replaces 43110-40200.

43110-40201

Unavailable

1

PEDAL, BRAKE | T

43110-40201

Unavailable

2

BUSH | N,T

09319-14003

Unavailable

3

SPACER | N,T

09180-10055

Unavailable

4

O RING | N,T

09280-14007

$1.65

5

THRUST WASHER | N,T

08211-10221

$2.28

6

BOLT, RH | N,T This part replaces 09100-10122.

09100-10021

Unavailable

7

NUT | N,T This part replaces 08319-21108.

09159-10027

$3.10

8

SPRING | N,T This part replaces 09443-11006.

09443-11006-XC0

Unavailable

9

BOLT | N,T

09100-06009

$1.91

10

.NUT | N,T This part replaces 08310-11068.

08310-00067

$2.13

11

ROD ASSY, REAR BRAKE | N; Includes Item(s) 12 - 17

43300-40200

Unavailable

12

WASHER | N This part replaces 08322-21058.

08322-01057

$2.13

13

COTTER PIN | N This part replaces 04111-20208.

04111-2020A

$1.49

14

WASHER | N This part replaces 08322-21068.

08322-01067

$2.13

15

SPRING | N

09440-09004

$2.20

16

PIN | N

09209-13004

Unavailable

17

.NUT | N This part replaces 09150-06001.

09150-06010

$3.10

18

CABLE ASSY, REAR BRAKE | T

58510-40400

Unavailable

19

PIN | T

09200-05001

$1.65

20

WASHER | T This part replaces 08322-21068.

08322-01067

$2.13

21

COTTER PIN | T This part replaces 04111-20208.

04111-2020A

$1.49

22

PIN, ADJUSTER | T

09209-13004

Unavailable

23

.NUT | T This part replaces 09150-06001.

09150-06010

$3.10

24

.COTTER PIN | T This part replaces 04111-20158.

04111-2015A

$1.49
