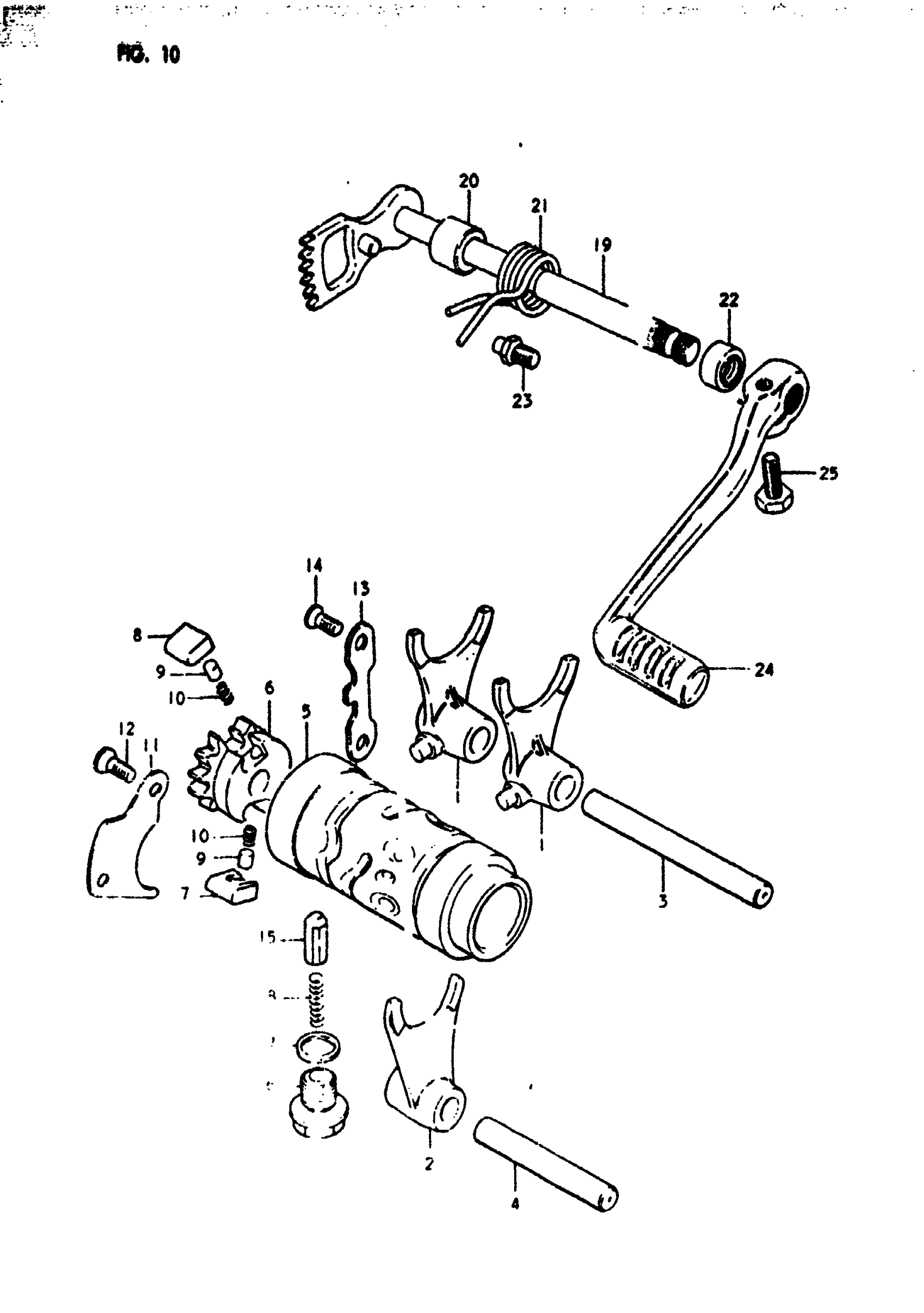

Suzuki RM125 (1980) GEAR SHIFTING Diagram

FORK, NO.1 | N,T This part replaces 25211-41300.

25211-41301

$87.70

NO DESCRIPTION AVAILABLE | N,T This part replaces 25221-41301.

25221-41X00

Unavailable

SHAFT, GEAR SHI | N,T This part replaces 25411-16400.

25411-48001

Unavailable

SHAFT, NO.1 | N,T This part replaces 25421-40000.

25421-35410

$23.47

CAM | N,T This part replaces 25310-41300.

25310-14100

Unavailable

GEAR, GEAR SHIFT CAM DRIVEN | N,T This part replaces 25322-11000.

25322-31310

$26.93

PAWL, GEAR SHIFT NO.1 | N,T This part replaces 25323-11000.

25323-34201

$7.22

PAWL, GEAR SHIFT NO.2 | N,T This part replaces 25324-11000.

25324-34201

$7.22

PIN | N,T

09261-05003

$1.54

SPRING | N,T

09440-04003

$1.54

LIFTER, PAWL | N,T

25331-11001

$6.38

SCREW | N,T This part replaces 02122-06128.

02122-06127

$1.84

GUIDE, CAM | N,T This part replaces 25341-40400.

25341-40001

$12.17

SCREW | N,T This part replaces 02122-06128.

02122-06127

$1.84

STOPPER, CAM | N,T This part replaces 25351-11000.

25351-11010

$7.22

HOLDER, STOPPER | N,T This part replaces 25352-11000.

25352-11010

$7.22

GASKET | N,T

09168-14004

$1.83

SPRING | N,T

09440-05007

$1.82

NO DESCRIPTION AVAILABLE | N,T This part replaces 25510-40200.

25510-402V0

Unavailable

SPACER | N,T

09180-12083

$2.45

SPRING | N,T

09444-26013

$3.10

OIL SEAL (12X22X9) | N,T This part replaces 09285-12002.

09285-12006

$6.32

STOPPER, ARM | N,T This part replaces 25671-01000.

25671-01011

$4.48

LEVER,GEAR SHIF | N This part replaces 25611-40301.

25600-40304

Unavailable

LEVER,GEAR SHIF | T This part replaces 25600-40810.

25600-40304

Unavailable

BOLT | N,T This part replaces 01107-06258.

01500-06257

$1.97
