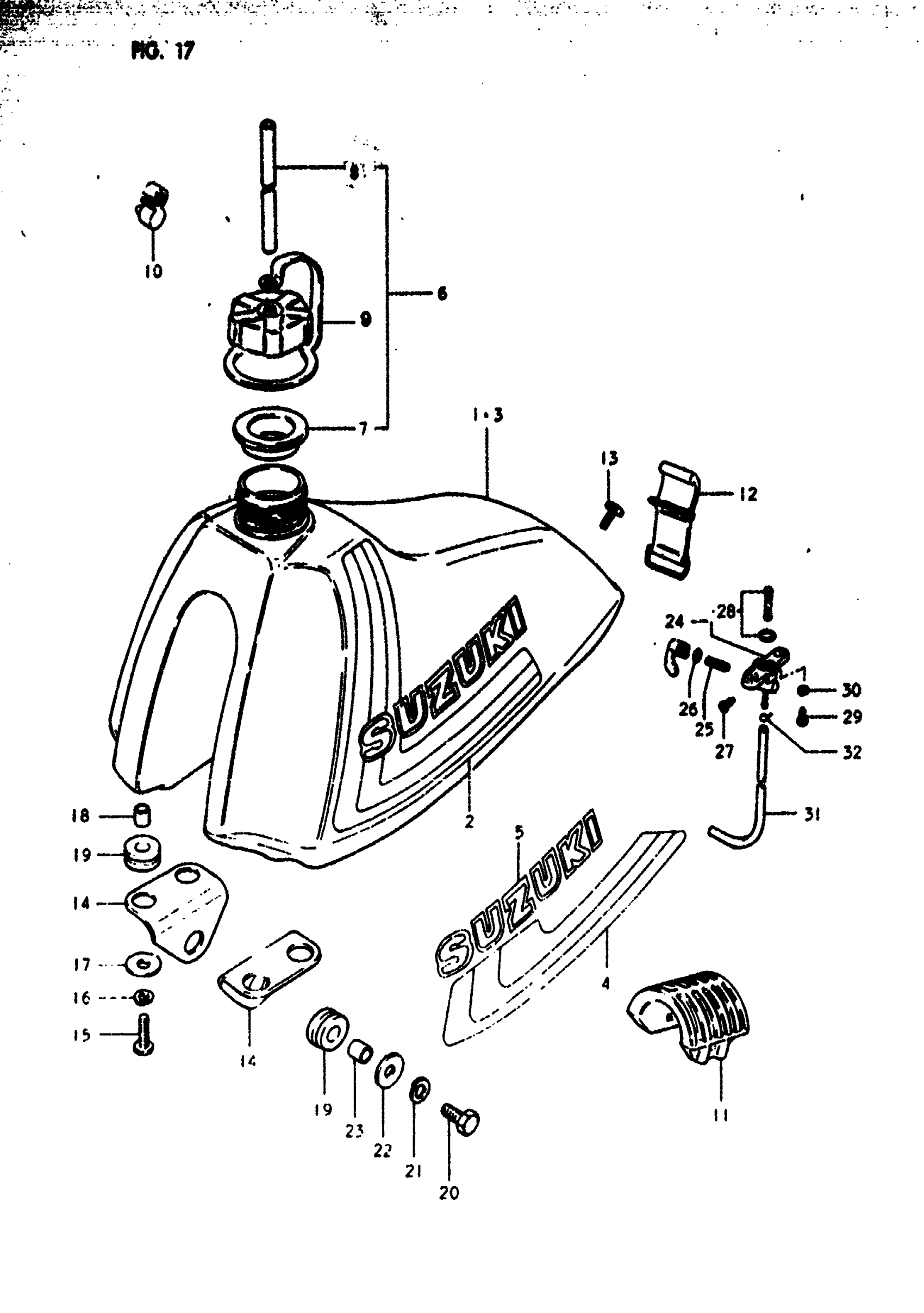

Suzuki RM125 (1980) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N; Includes Item(s) 2 This part replaces 44100-40200-163.

44110-40200-163

Unavailable

2

TAPE SET | N

68100-40820

Unavailable

3

NO DESCRIPTION AVAILABLE | T; Includes Item(s) 4 - 5 This part replaces 44100-40210-163.

44110-40200-163

Unavailable

4

TAPE SET | T

68110-40210-67H

Unavailable

5

EMBLEM | T This part replaces 68111-40200-019.

68111-40210-64D

Unavailable

6

CAP SET,FUEL TA | N,T; Includes Item(s) 7 - 10 This part replaces 44200-40400.

44200-40822

$14.76

7

GASKET | N,T This part replaces 44248-40400.

44248-05211

$3.76

8

HOSE,5X10X600 | N This part replaces 09343-05031.

44421-13ER0

$10.06

8

HOSE,5X10X600 | T This part replaces 09343-05129.

44421-13ER0

$10.06

9

BAND | N,T

44487-40400

Unavailable

10

CLAMP | N,T

44486-32101

$3.65

11

CUSHION, UPPER | N,T

44541-41300

Unavailable

12

BAND, REAR | N,T

44560-41300

Unavailable

13

SCREW | N,T

09125-06029

$1.72

14

BRACKET, LOWER | N This part replaces 44521-41111.

44521-40401

Unavailable

14

BRACKET, LOWER | T

44521-40401

Unavailable

15

SCREW | N,T This part replaces 02112-06258.

02112-06257

$1.78

16

LOCK WASHER | N,T This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER, FRONT | N,T This part replaces 09160-06004.

09160-06134

$1.91

18

SPACER | N,T

09180-06076

$2.68

19

CUSHION | N,T

09320-11008

$2.60

20

BOLT | N,T This part replaces 01304-08258.

01500-08257

$2.50

21

.LOCK WASHER | N,T This part replaces 08321-21088.

08321-01087

$2.13

22

WASHER | N,T This part replaces 09160-08021.

09160-08130

$2.03

23

SPACER (8.5X12X11) | N,T This part replaces 09180-08001.

09180-08189

$2.58

24

COCK ASSY, FUEL | N,T; Includes Item(s) 25 - 28 This part replaces 44300-41370.

44300-41371

$46.36

25

SPRING | N,T This part replaces 44357-41370.

44357-32470

$2.21

26

O RING | N,T

44353-41370

$4.37

27

SCREW | N,T

44343-41370

$2.22

28

FILTER SET | N,T

44300-41810

$11.24

29

SCREW | N,T This part replaces 02112-06168.

02112-06167

$1.49

30

LOCK WASHER | N,T This part replaces 08321-21068.

08321-01067

$2.13

31

HOSE,5X10X600 | N,T This part replaces 09343-05129.

44421-13ER0

$10.06

32

CLIP | N

09401-08402

$1.49

32

CLIP | T This part replaces 09401-08404.

09401-08301

$1.65
