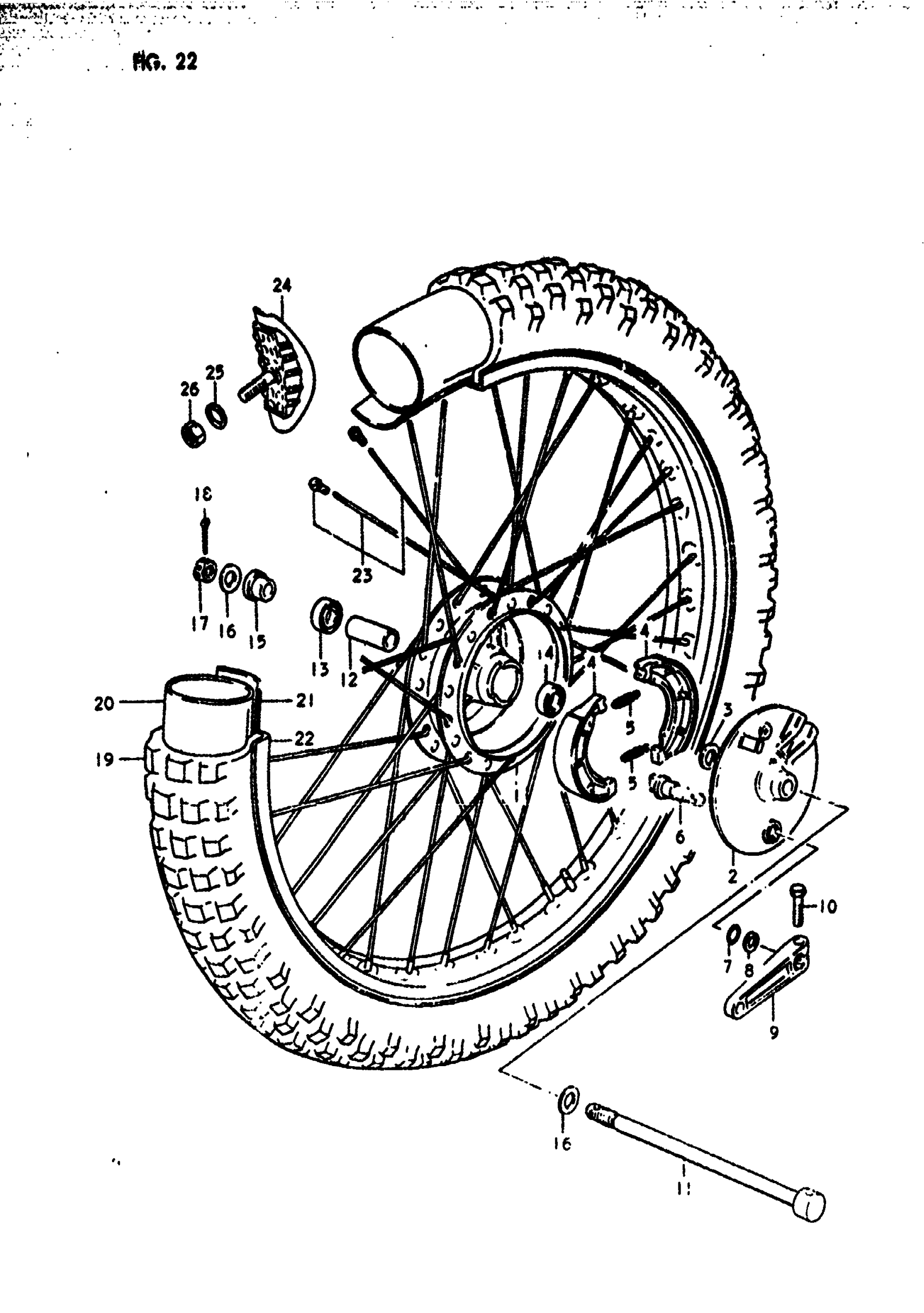

Suzuki RM125 (1980) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL (F.NO.102503~ | N,T; TO 54110-40201 USED WITH 55320N,T; TO 54110-40201 USED WITH 55320-40201 This part replaces 54110-40200.

54110-40201

Unavailable

1

HUB, FRONT WHEEL (F.NO.102503~ | TT

54110-40201

Unavailable

2

NO DESCRIPTION AVAILABLE | N,T; Includes Item(s) 3 This part replaces 54210-41300.

54210-41301

Unavailable

3

BOSS | N,T

54221-41300

Unavailable

4

SHOE SET, BRAKE | N,T This part replaces 54410-07002.

54401-07810

Unavailable

5

SPRING | N,T This part replaces 09443-07001.

09443-07025

$2.08

6

CAM, BRAKE | N,T

54441-41300

Unavailable

7

DUST SEAL | N,T

09280-12001

$2.90

8

WASHER (12.5x20x1) | N,T

09160-12011

$1.54

9

NO DESCRIPTION AVAILABLE | N,T This part replaces 54451-41300.

54451-41301

Unavailable

10

BOLT | N,T This part replaces 01107-06258.

01500-06257

$1.97

11

AXLE, FRONT | N,T

54711-30501

Unavailable

12

SPACER (12.5X19X52) | N,T This part replaces 09180-12041.

09180-12144

$10.30

13

BEARING | N,T This part replaces 08123-62017.

08133-62017

$18.47

14

BEARING | N,T This part replaces 08143-62017.

08143-6201B

$10.80

15

SPACER | N,T This part replaces 54740-40300.

54741-41100

$15.13

16

WASHER | N,T This part replaces 08322-11128.

08322-01127

$1.84

17

NUT | N,T This part replaces 08314-41128.

08314-4012A

$2.50

18

PIN | N,T This part replaces 04111-30308.

04111-3030A

$1.49

19

TIRE, FRONT (3.00-21) | N,T This part replaces 55100-40430.

55100-14230

Unavailable

20

TIRE, FRONT | N,T This part replaces 55200-28330.

55200-16511

$36.73

21

PROTECTOR, INNER TUBE | N,T This part replaces 55261-28330.

55261-14540

$3.83

22

NO DESCRIPTION AVAILABLE | N,T This part replaces 55311-40200.

55311-40201

Unavailable

23

NO DESCRIPTION AVAILABLE | N,T; ~F.NO.102502 This part replaces 55300-40821.

55320-40200

Unavailable

23

SPOKE SET | T; F.NO. 102503~

55370-40201

Unavailable

24

STOPPER, BEAD | N,T This part replaces 65270-30001.

65270-43D00

$58.75

25

WASHER | N,T This part replaces 08322-11088.

08322-01087

$2.13

26

NUT | N,T This part replaces 08310-12088.

08310-00087

$2.13
