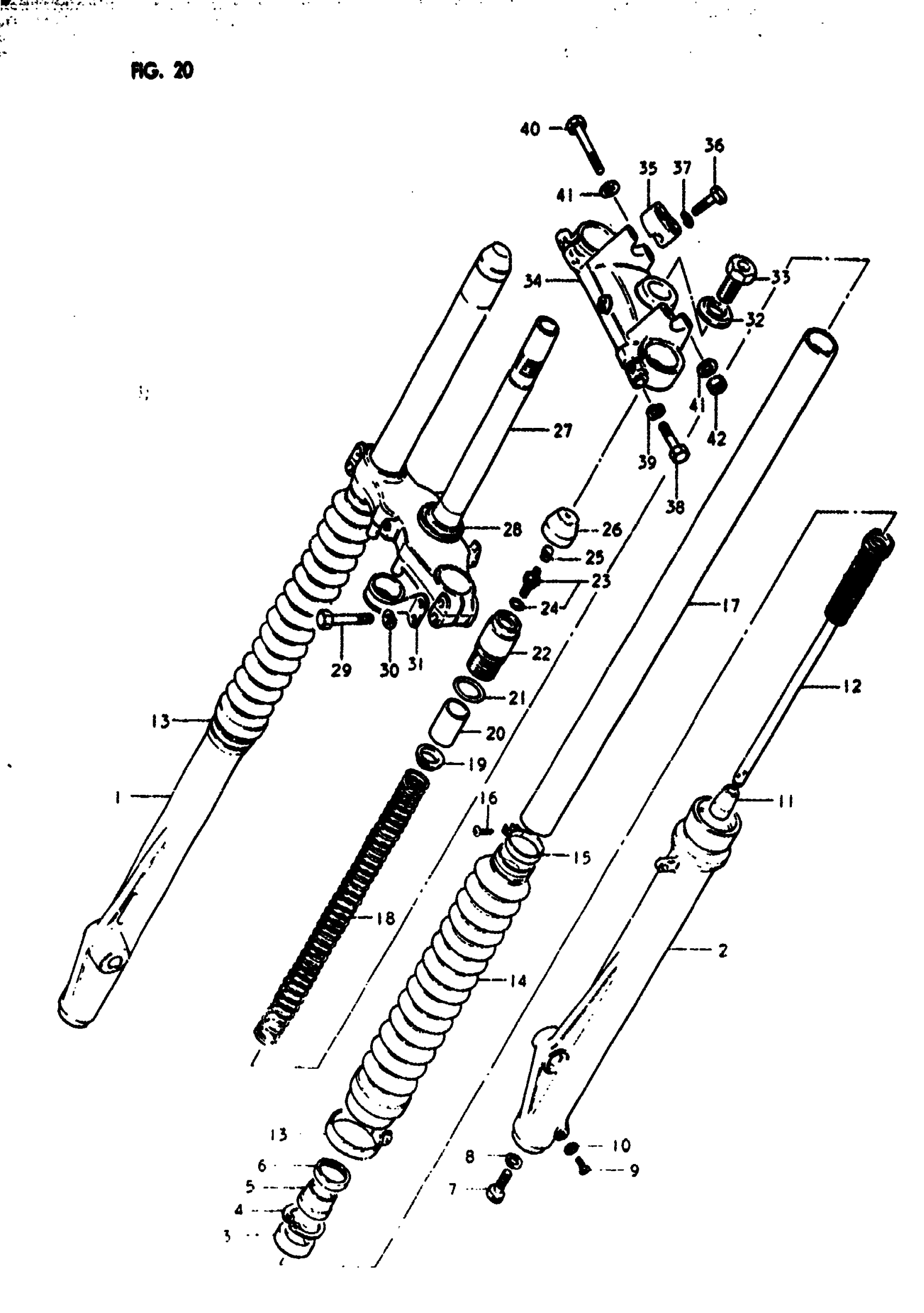

Suzuki RM125 (1980) FRONT FORK (RM125T) Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 42 This part replaces 51100-40201-08C.

51100-40202-08C

Unavailable

1

OUTER TUBE, RH

51130-40201

Unavailable

2

OUTER TUBE, LH

51140-40201

Unavailable

3

OIL SEAL

51153-40300

Unavailable

4

SNAP RING

51156-40301

$5.05

5

DUST SEAL

51173-40301

Unavailable

6

CASE, DUST SEAL

51149-40301

Unavailable

7

BOLT

51147-40300

$5.38

8

GASKET

51148-40300

$2.03

9

SCREW This part replaces 02111-04087.

02112-04087

$1.49

10

GASKET

51183-03010

$2.07

11

PIECE, OIL LOCK

51195-40300

Unavailable

12

CYLINDER

51146-40200

Unavailable

13

BAND

51573-40300

Unavailable

14

BOOT

51571-40300

Unavailable

15

BAND BOOTS UPPE This part replaces 51575-40300.

51575-44B00

Unavailable

16

SCREW This part replaces 02112-04108.

02112-04107

$1.55

17

INNER TUBE

51110-40300

Unavailable

18

SPRING

51171-40200

Unavailable

19

GUIDE, SPRING

51172-40300

$6.48

20

SPACER

51176-40300

Unavailable

21

O RING

51117-40300

$3.09

22

CAP

51351-40300

Unavailable

23

VALVE, AIR

51293-49001

Unavailable

24

O RING

51117-41211

Unavailable

25

CAP

51294-40400

$8.12

26

CAP

51189-41220

Unavailable

27

STEM, STEARING (GOLD)

51410-40301-08C

Unavailable

28

NO DESCRIPTION AVAILABLE This part replaces 51621-40030.

51621-40X00

Unavailable

29

BOLT This part replaces 01107-08458.

01500-08453

$2.50

30

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

31

CLIP This part replaces 58621-40300.

58621-40301

Unavailable

32

WASHER

51356-41310

Unavailable

33

BOLT

51351-41320

Unavailable

34

HEAD, STEERING STEM (GOLD)

51311-40200-08C

Unavailable

35

HOLDER, HANDLE (GOLD)

56211-40300-08C

Unavailable

36

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

37

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

38

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

39

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

40

BOLT This part replaces 01107-08508.

01500-08507

$3.05

41

WASHER This part replaces 08322-21088.

08322-01087

$2.13

42

NUT This part replaces 08310-12088.

08310-00087

$2.13
