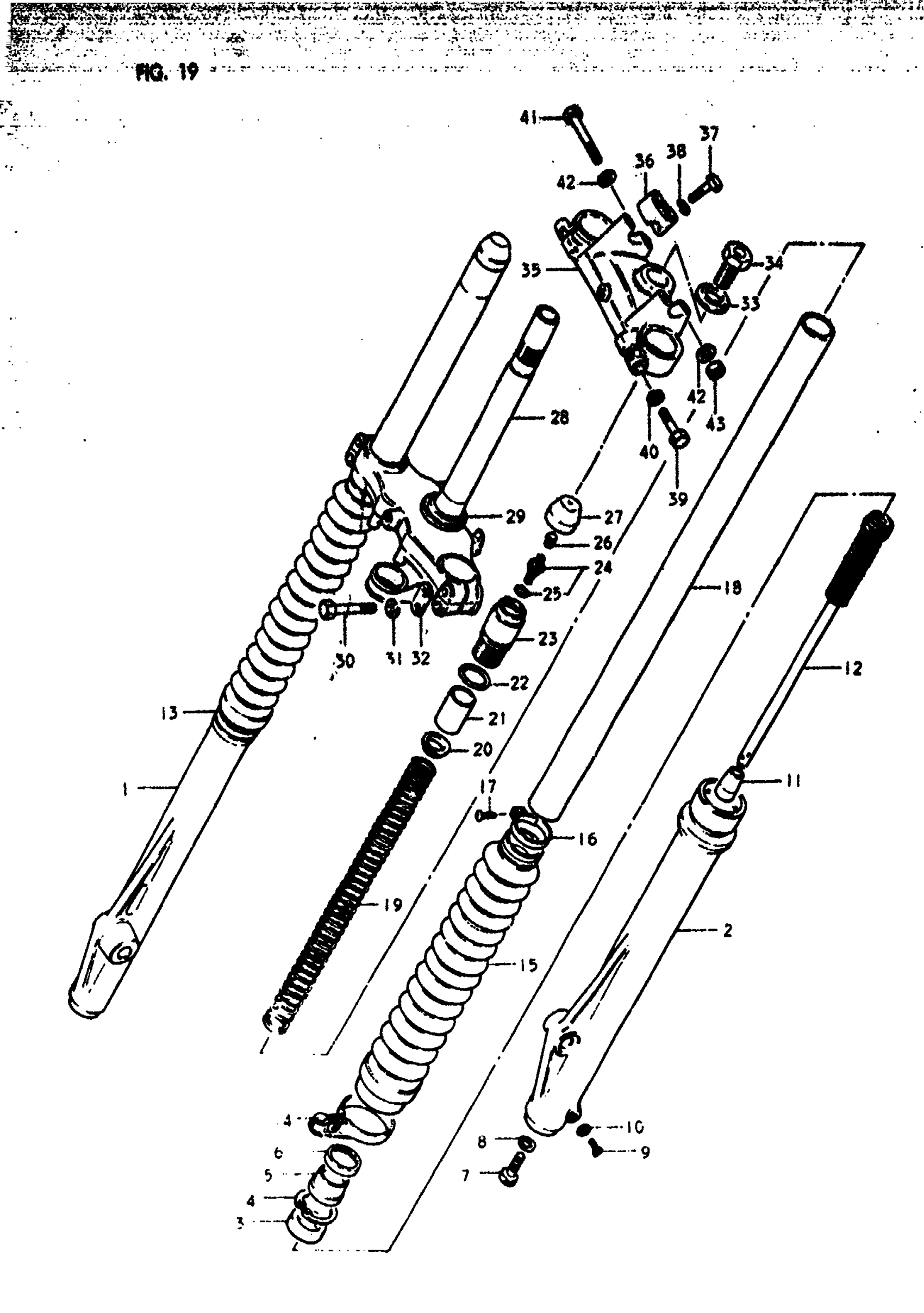

Suzuki RM125 (1980) FRONT FORK (RM125N) Diagram

#

Description
Price

0

FRONT FORK ASSY (GOLD) | Includes Item(s) 1 - 43

51100-40200-08C

Unavailable

1

OUTER TUBE, RH

51130-40200

Unavailable

2

OUTER TUBE, LH

51140-40200

Unavailable

3

OIL SEAL

51153-40300

Unavailable

4

SNAP RING

51156-40300

Unavailable

5

DUST SEAL This part replaces 51173-40300.

51173-40301

Unavailable

6

CASE, DUST SEAL

51149-40300

Unavailable

7

BOLT

51147-40300

$5.38

8

GASKET

51148-40300

$2.03

9

SCREW This part replaces 02111-04087.

02112-04087

$1.49

10

GASKET

51183-03010

$2.07

11

PIECE, OIL LOCK

51195-40300

Unavailable

12

CYLINDER

51146-40200

Unavailable

13

BAND

51573-40300

Unavailable

14

CLIP

51572-40300

Unavailable

15

BOOT

51571-40300

Unavailable

16

BAND BOOTS UPPE This part replaces 51575-40300.

51575-44B00

Unavailable

17

SCREW This part replaces 02112-04208.

02112-0420A

$1.49

18

INNER TUBE

51110-40300

Unavailable

19

SERING

51171-40200

Unavailable

20

GUIDE, SPRING

51172-40300

$6.48

21

SPACER

51176-40300

Unavailable

22

O RING

51117-40300

$3.09

23

CAP

51351-40300

Unavailable

24

VALVE, AIR

51293-49001

Unavailable

25

O RING

51117-41211

Unavailable

26

CAP

51294-40400

$8.12

27

CAP

51189-41220

Unavailable

28

STEM, STEERLING (GOLD)

51410-40300-08C

Unavailable

29

NO DESCRIPTION AVAILABLE This part replaces 51621-40030.

51621-40X00

Unavailable

30

BOLT This part replaces 01107-08458.

01500-08453

$2.50

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

CLIP This part replaces 58621-40300.

58621-40301

Unavailable

33

WASHER

51356-41310

Unavailable

34

BOLT

51351-41320

Unavailable

35

HEAD, STEERING STEM (GOLD)

51311-40200-08C

Unavailable

36

HOLDER, HANDLE (GOLD)

56211-40300-08C

Unavailable

37

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

38

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

39

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

40

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

41

BOLT This part replaces 01107-08508.

01500-08507

$3.05

42

WASHER This part replaces 08322-21088.

08322-01087

$2.13

43

NUT This part replaces 08310-12088.

08310-00087

$2.13
