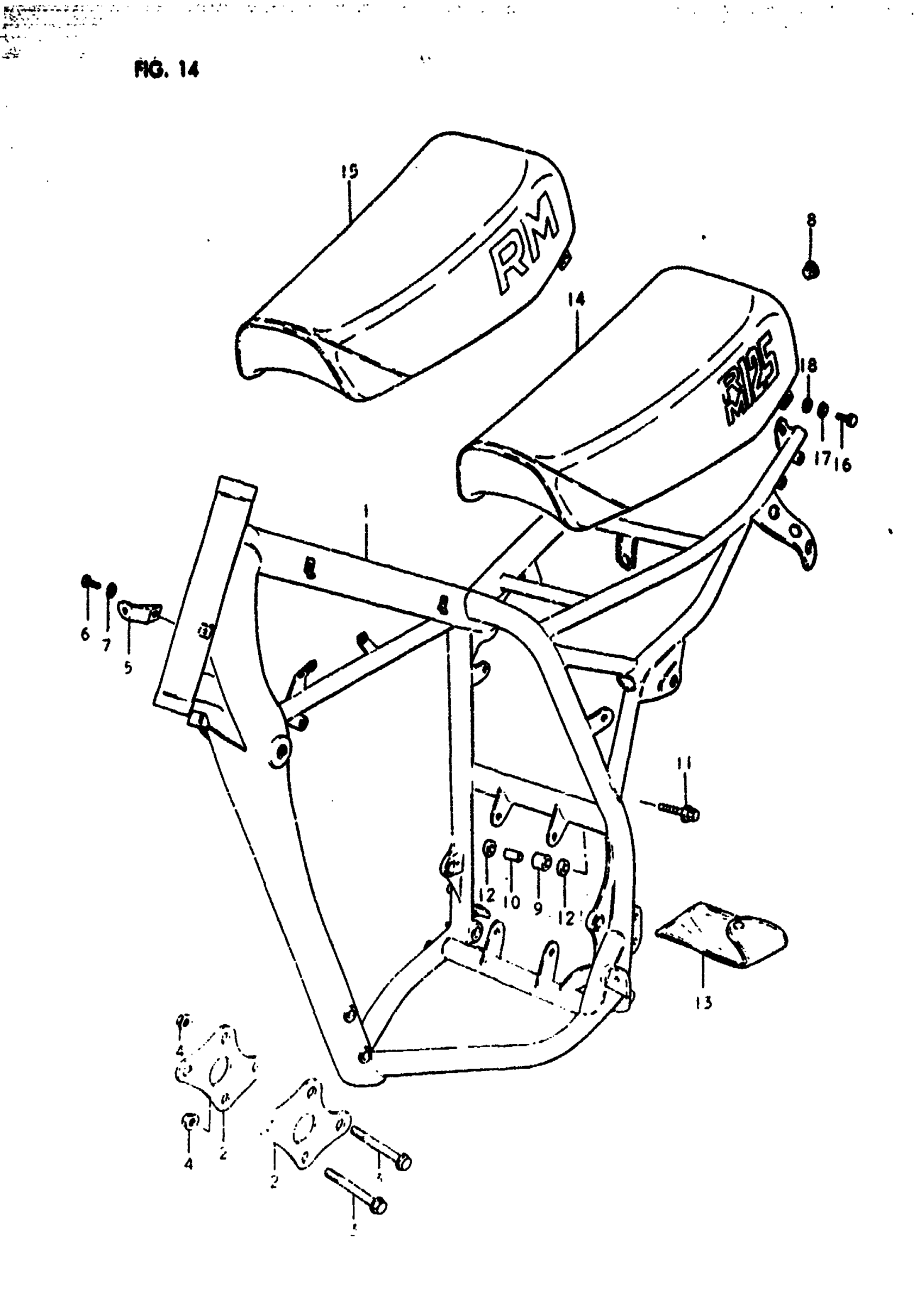

Suzuki RM125 (1980) FRAME - SEAT Diagram

#

Description
Price

1

FRAME (BLACK) | N

41100-40200-019

Unavailable

1

FRAME (BLACK) | T

41100-40201-019

Unavailable

2

PLATE, ENGINE MOUNTING | T

41991-40200

Unavailable

3

BOLT | T

09103-08037

$5.57

4

NUT | T This part replaces 08319-31088.

08319-3108A

$2.32

5

BRACKET, CDI UNIT | N,T

41890-41300

Unavailable

6

BOLT | N,T This part replaces 01107-06128.

01500-06127

$1.97

7

LOCK WASHER | N,T This part replaces 08321-21068.

08321-01067

$2.13

8

PLUG | N,T

09250-14005

$2.06

9

ROLLER, CHAIN LOWER | T This part replaces 43911-40400.

43911-14200

Unavailable

10

SPACER, CHAIN LENGTH ROLLER | T

43913-40400

Unavailable

11

BOLT | T

09103-08043

$3.18

12

WASHER | T This part replaces 09160-08035.

09160-08130

$2.03

13

TOOL SET | N This part replaces 09800-00170.

09800-08800

Unavailable

13

TOOL SET | T This part replaces 09800-00218.

09800-08800

Unavailable

14

NO DESCRIPTION AVAILABLE | N This part replaces 45100-40200-865.

45100-40221-48F

Unavailable

15

NO DESCRIPTION AVAILABLE | T This part replaces 45100-40220-865.

45100-40221-48F

Unavailable

16

BOLT, CANISTER | N,T This part replaces 01107-06168.

01500-06167

$1.97

17

LOCK WASHER | N,T This part replaces 08321-21068.

08321-01067

$2.13

18

WASHER (6.5X18X1.0) | N,T

09160-06028

$1.49
