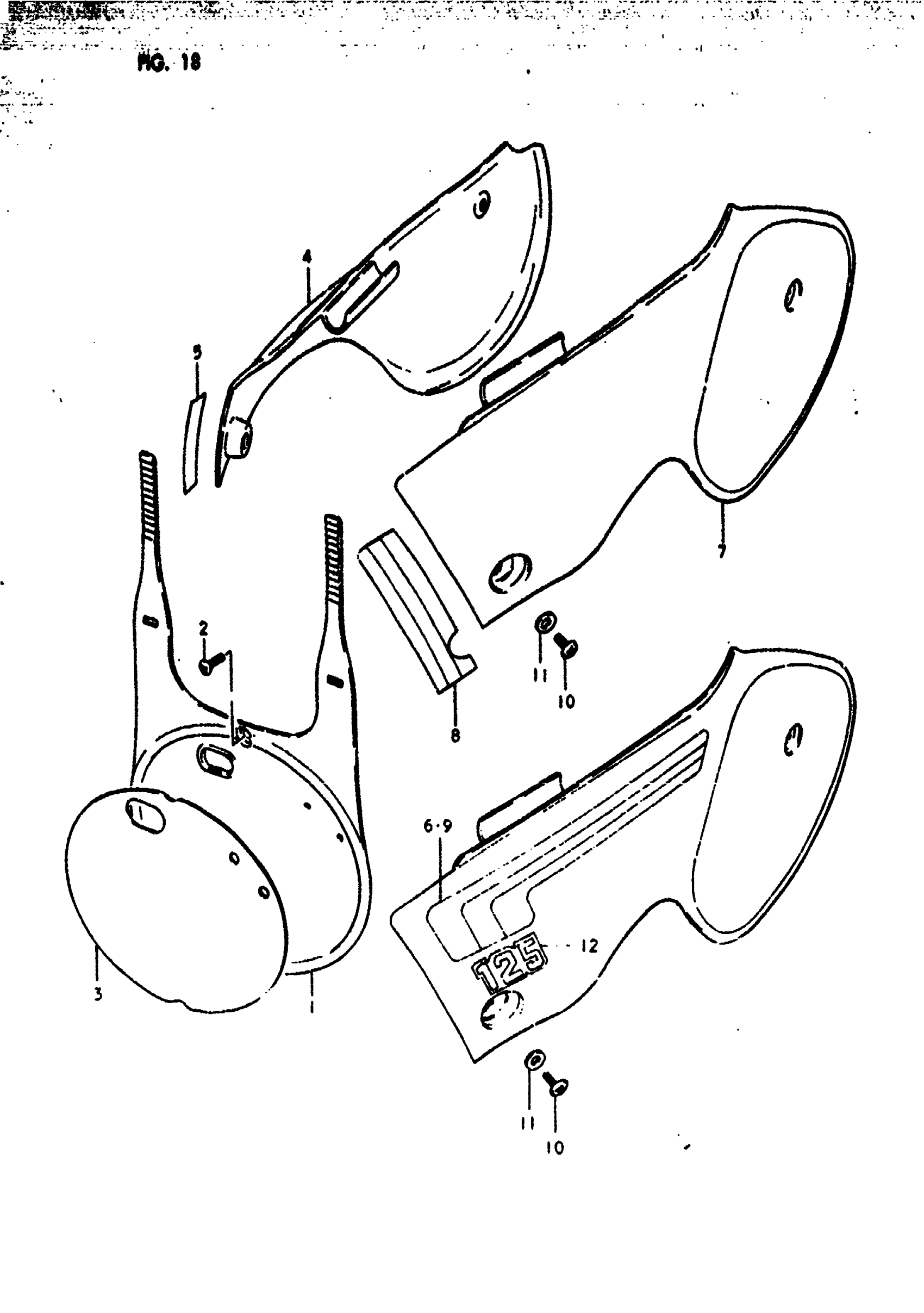

Suzuki RM125 (1980) FRAME COVER Diagram

#

Description
Price

1

PLATE, FRONT NUMBER | N,T

94911-41300

Unavailable

2

SCREW | N,T This part replaces 02142-05208.

02142-05207

$1.49

3

EMBLEM | N,T This part replaces 68169-41300.

68169-41110

Unavailable

4

COVER,FRAME | N,T This part replaces 47111-40200-163.

47111-40201-13L

Unavailable

5

TAPE, RH | N

68134-40200-67H

Unavailable

6

TAPE, RH | T

68136-40210-67H

Unavailable

7

COVER, FRAME LH (YELLOW) | N,T

47211-40200-163

Unavailable

8

TAPE, LH | N

68144-40200-67H

Unavailable

9

TAPE, LH | T

68146-40210-67H

Unavailable

10

SCREW | N,T

02142-06127

$1.49

11

WASHER | N,T This part replaces 09160-06007.

09160-06084

$1.78

12

EMBLEM "125" | T

68131-40210-64D

Unavailable
