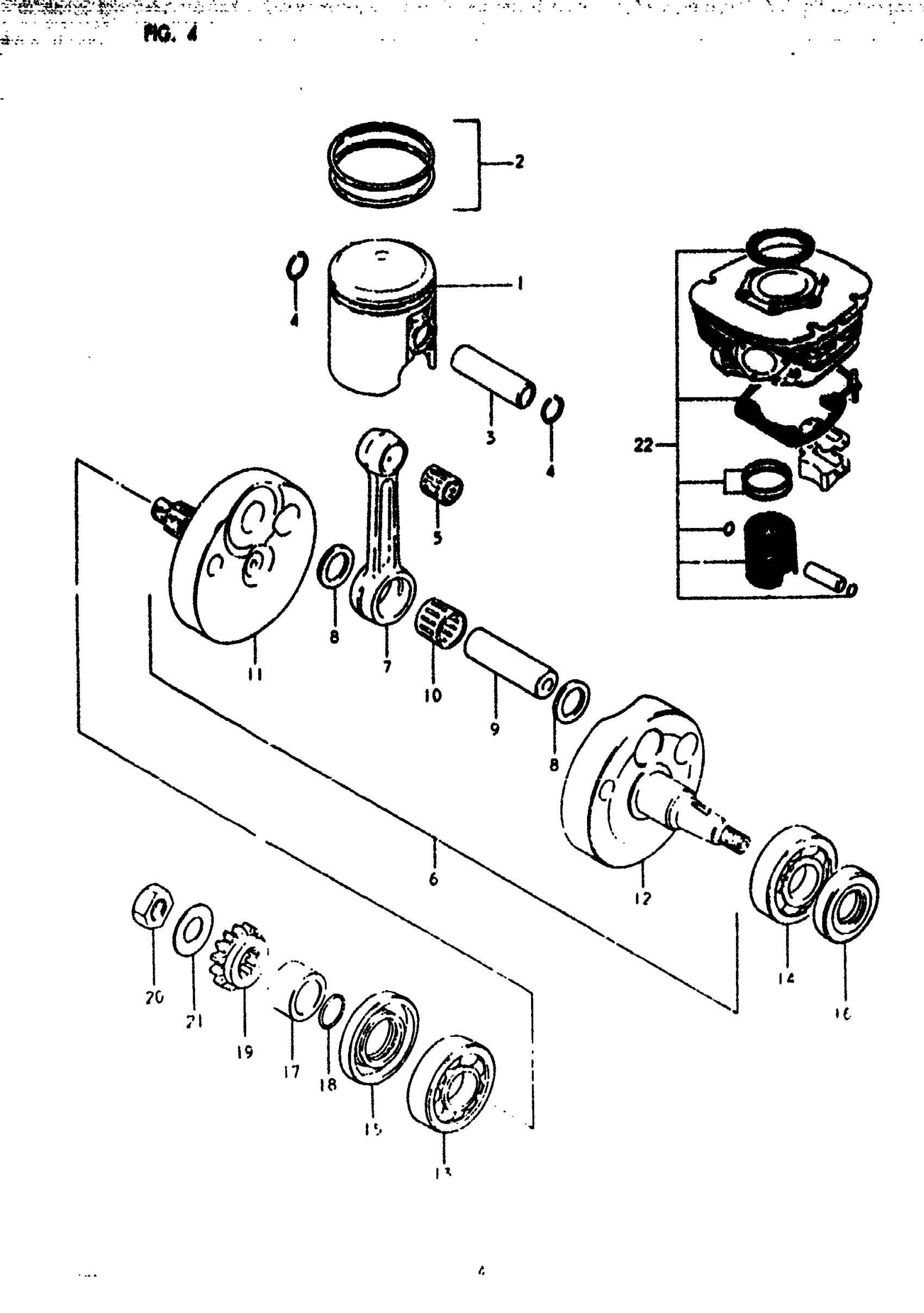

Suzuki RM125 (1980) CRANKSHAFT Diagram

NO DESCRIPTION AVAILABLE | N,T This part replaces 12110-41310.

12110-41311

Unavailable

NO DESCRIPTION AVAILABLE | N,T This part replaces 12110-41310-025.

12110-41311-025

Unavailable

NO DESCRIPTION AVAILABLE | N,T This part replaces 12110-41310-050.

12110-41311-050

Unavailable

RING SET, PISTON (STD) | N,T

12140-41310

Unavailable

RING SET, PISTON (OS:0.25) | N,T

12140-41310-025

Unavailable

RING SET, PISTON (OS:0.5) | N,T

12140-41310-050

Unavailable

PIN, PISTON | N,T This part replaces 12151-11000.

12151-39300

$20.88

RING | N,T

09381-14001

$1.49

ROLLR BRG,14X18 | N,T This part replaces 09263-14006.

09263-14022

$11.97

CRANKSHAFT ASSY | N

12200-40200

Unavailable

CRANKSHAFT ASSY | T; Includes Item(s) 7 - 12

12200-40220

Unavailable

CONNECTING ROD | N,T This part replaces 12161-12002.

12161-39300

$69.47

WASHER | N,T

09160-19001

$3.27

PIN CRANK | N This part replaces 12211-03001.

12211-03020

$31.08

PIN CRANK | T This part replaces 12211-10301.

12211-03020

$31.08

BEARING | N,T

09263-19009

$16.75

CRANKSHAFT, RH | N

12221-40200

Unavailable

CRANKSHAFT, RH | T

12221-40220

Unavailable

CRANKSHAFT, LH | N

12261-40200

Unavailable

CRANKSHAFT, LH | T

12261-40220

Unavailable

BEARING, RH (22X56X16) | N,T This part replaces 09262-22012.

09262-22025

$57.67

BEARING, LH | N,T This part replaces 09262-25052.

09262-25070-0A0

$37.33

OIL SEAL, RH | N,T

09289-29002

Unavailable

OIL SEAL, LH | N,T This part replaces 09283-25037.

09283-25066

$7.50

SPACER | N,T

09180-20064

Unavailable

O RING | N,T

09280-20004

$1.58

GEAR, PRIMARY DRIVE (NT:19) | N,T This part replaces 21111-40200.

21111-40202

Unavailable

NUT | N,T

09140-16002

$3.16

WASHER | N,T

09164-16002

$3.16

NO DESCRIPTION AVAILABLE | N,T; NOT SHOWN This part replaces 12100-40820.

12100-40821

Unavailable

NO DESCRIPTION AVAILABLE | N,T; NOT SHOWN This part replaces 12100-40820-025.

12100-40821-025

Unavailable
