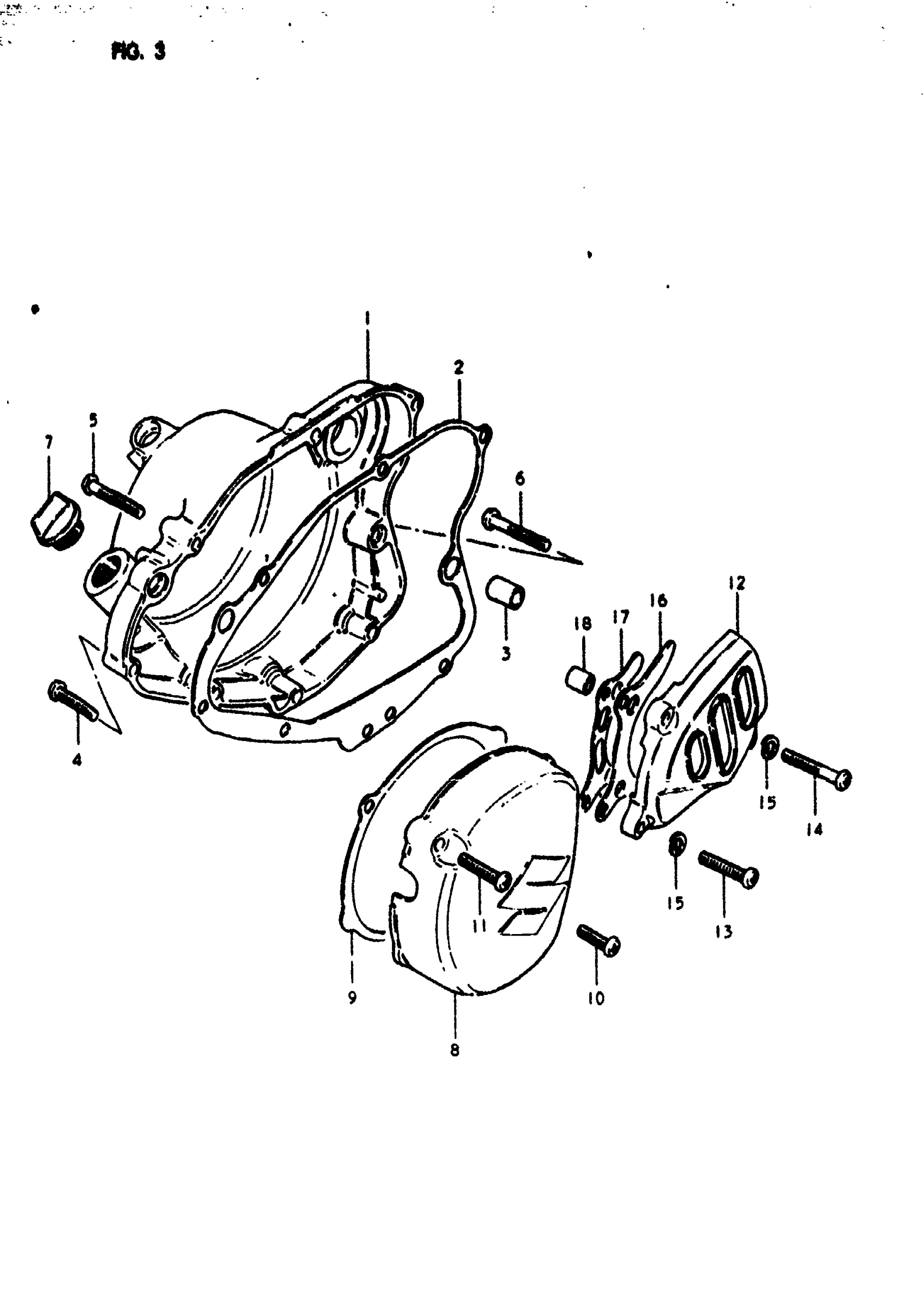

Suzuki RM125 (1980) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | N,T This part replaces 11341-40200.

11341-40201

Unavailable

2

GASKET,CL COVER | N,T This part replaces 11482-40200.

11482-40200-H17

$12.69

3

PIN | N,T This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW | N,T This part replaces 02112-06308.

02112-06307

$1.97

5

SCREW (6X40) | N,T This part replaces 02112-06408.

02112-06407

$1.78

6

SCREW (6X45) | N,T This part replaces 02112-06458.

02112-06457

$1.78

7

PLUG SET | N,T This part replaces 09259-20003.

09200-20811

$4.02

8

COVER, MAGNETO | N,T This part replaces 11351-40400.

11351-40402

Unavailable

9

GASKET,MAGNETO | N,T This part replaces 11483-41301.

11483-41312-H17

Unavailable

10

SCREW | N,T This part replaces 02112-06208.

02112-06207

$1.78

11

SCREW | N,T This part replaces 02112-06308.

02112-06307

$1.97

12

COVER, SPROCKET | N,T

11360-40200

Unavailable

13

BOLT | N,T This part replaces 01517-06358.

01550-06357

$2.77

14

SCREW (6X45) | N,T This part replaces 02112-06458.

02112-06457

$1.78

15

LOCK WASHER | N,T This part replaces 08321-21068.

08321-01067

$2.13

16

NO DESCRIPTION AVAILABLE | N This part replaces 27641-40210.

27641-40211

Unavailable

17

PLATE, CHAIN GUIDE | T

27641-41500

Unavailable

18

SPACER | N,T

09180-07004

$2.30
