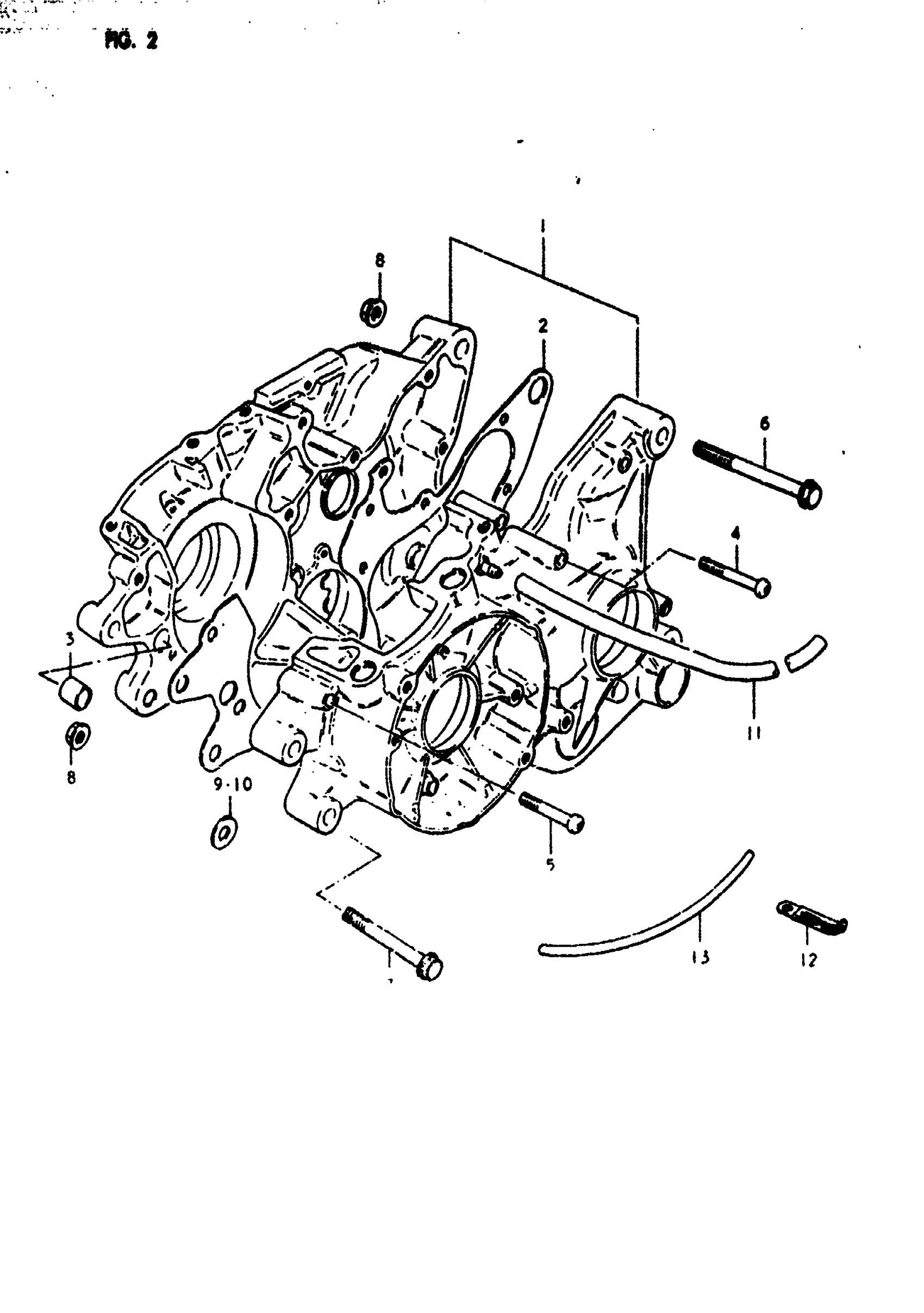

Suzuki RM125 (1980) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N This part replaces 11300-40810.

11300-40811

Unavailable

1

CRANKCASE SET | T; Includes Item(s) 2 - 5

11300-40840

Unavailable

2

GASKET, CRANKCA | N This part replaces 11481-40200.

11481-40220

Unavailable

2

GASKET,CRANKCAS | T This part replaces 11481-40210.

11481-40210-H17

Unavailable

3

PIN | N,T This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW | N,T

02112-06557

$2.53

5

SCREW (6X45) | N,T This part replaces 02112-06458.

02112-06457

$1.78

6

BOLT | N,T This part replaces 01517-08908.

01550-08907

$5.18

7

BOLT (8x70) | N,T

09103-08037

$5.57

8

NUT | N,T This part replaces 08319-31088.

08319-3108A

$2.32

9

WASHER (1) | (0~1)N,T

09169-08022

Unavailable

10

WASHER (2) | (0~1)N,T

09169-08023

Unavailable

11

HOSE | N,T This part replaces 09343-05021.

09352-50005-00B

$13.93

12

CLAMP | N,T This part replaces 09404-06402.

09404-06039

$1.74

13

HOSE 4X7X600 | N,TN,T This part replaces 09343-04010.

09352-40706-600

$5.11
