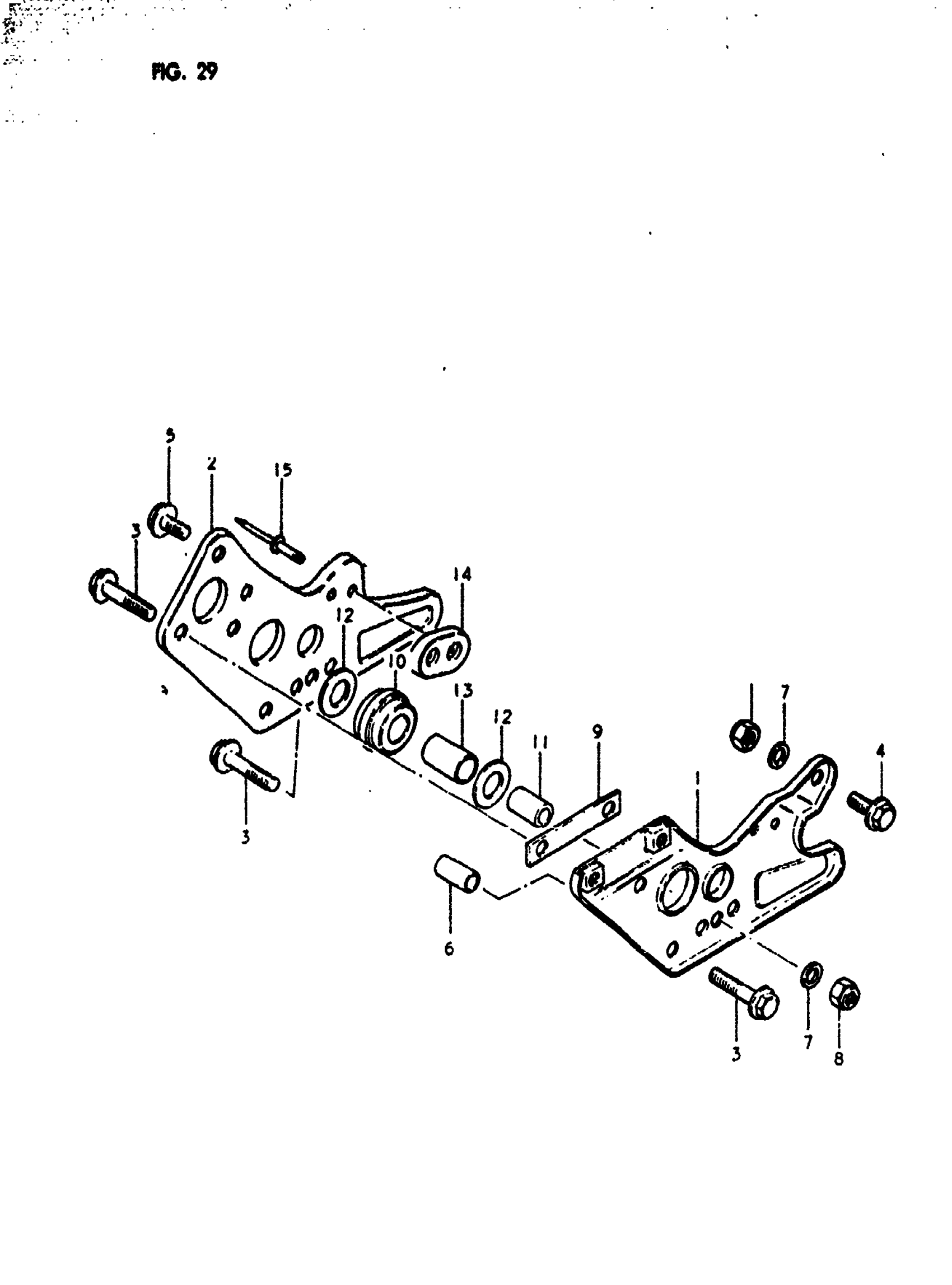

Suzuki RM125 (1980) CHAIN GUIDE (RM125T) Diagram

#

Description
Price

1

GUIDE, CHAIN OUTER

61341-40402

Unavailable

2

GUIDE, CHAIN INNER

61342-40402

Unavailable

3

BOLT This part replaces 01517-06358.

01550-06357

$2.77

4

BOLT This part replaces 01517-06128.

01550-06127

$2.30

5

BOLT This part replaces 01517-06168.

01550-06167

$2.30

6

SPACER

09180-06036

Unavailable

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

9

WASHER

61347-40250

Unavailable

10

ROLLOR This part replaces 61345-40211.

61345-40220

Unavailable

11

SPACER

61346-40210

Unavailable

12

WASHER

08211-10221

$2.28

13

BUSHING

61347-40211

Unavailable

14

PAD This part replaces 61439-40210.

61349-40211

Unavailable

15

RIVET

09229-03009

Unavailable
