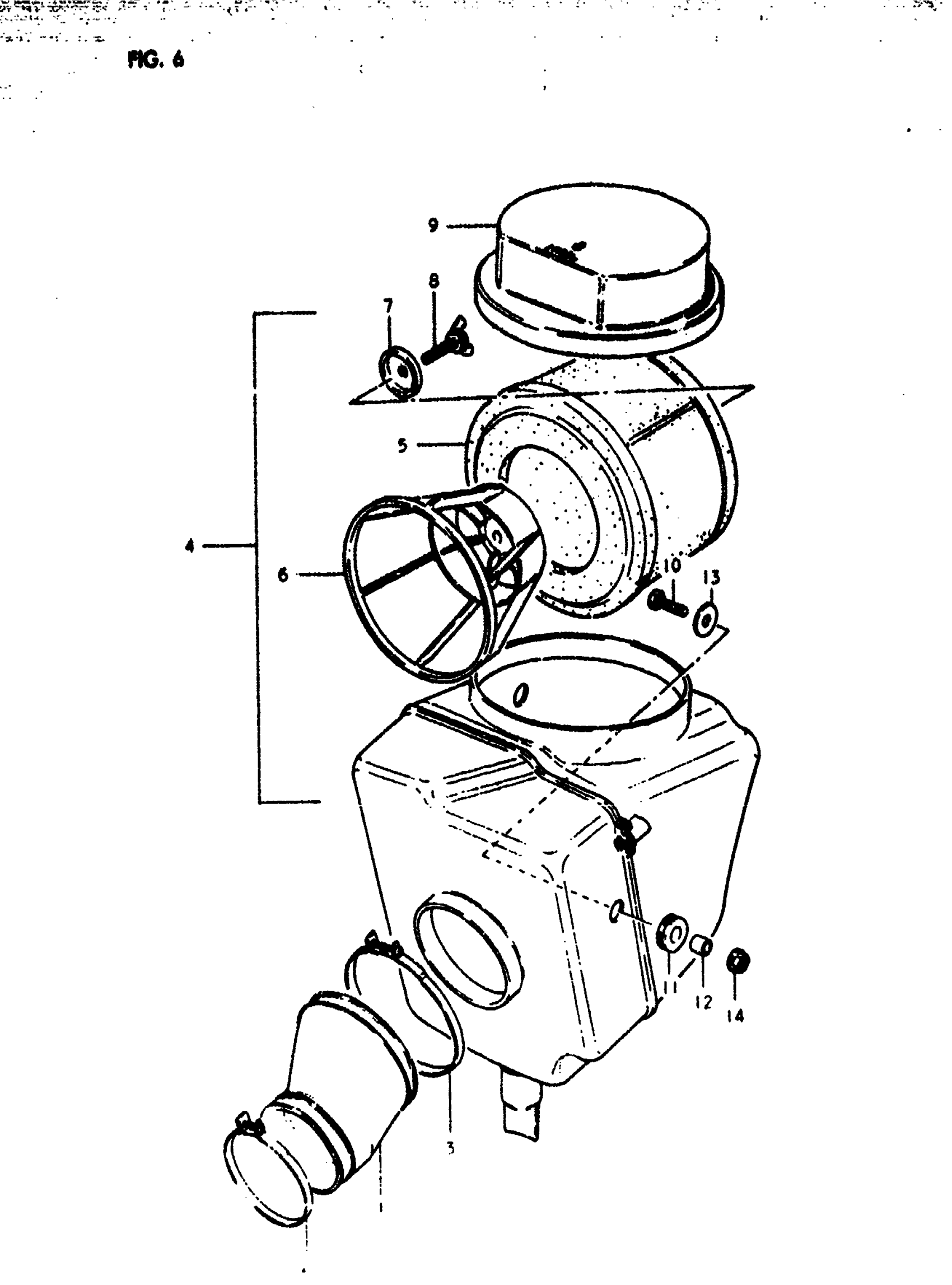

Suzuki RM125 (1980) AIR CLEANER Diagram

#

Description
Price

1

HOSE CARB AIR I | N,T This part replaces 13881-40200.

13881-40201

Unavailable

2

CLAMP | N,T This part replaces 09402-64306.

09402-64203

$6.58

3

CLAMP (2) | N

09402-86306

Unavailable

3

CLAMP | T This part replaces 09402-84306.

09402-84306-XC0

Unavailable

4

CLEANER ASSY, AIR | N This part replaces 13700-40200.

13700-40210

Unavailable

4

CLEANER ASSY, AIR | T; Includes Item(s) 5 - 9

13700-40210

Unavailable

5

FILTER | N,T

13781-40200

Unavailable

6

HOLDER | N,T

13791-40200

Unavailable

7

WASHER | N,T This part replaces 13792-40400.

13792-13A01

$4.34

8

BOLT | N,T This part replaces 13911-40400.

09119-06017-XC0

$3.72

9

CAP | N,T

13741-40200

Unavailable

10

BOLT | N,T This part replaces 01107-06208.

01500-06207

$2.28

11

CUSHION (8.5X20X8) | N,T This part replaces 09320-08007.

09320-08510

$1.97

12

SPACER (6.5X9X9) | N,T This part replaces 09180-06011.

09180-06263

$2.03

13

WASHER (6.5X20X1.2) | N,T This part replaces 09160-06027.

09160-06077

$1.91

14

NUT | N,T This part replaces 08319-31068.

08319-31067

$2.03
