1978 Suzuki RM125 Rear Wheel Diagram

← All diagrams

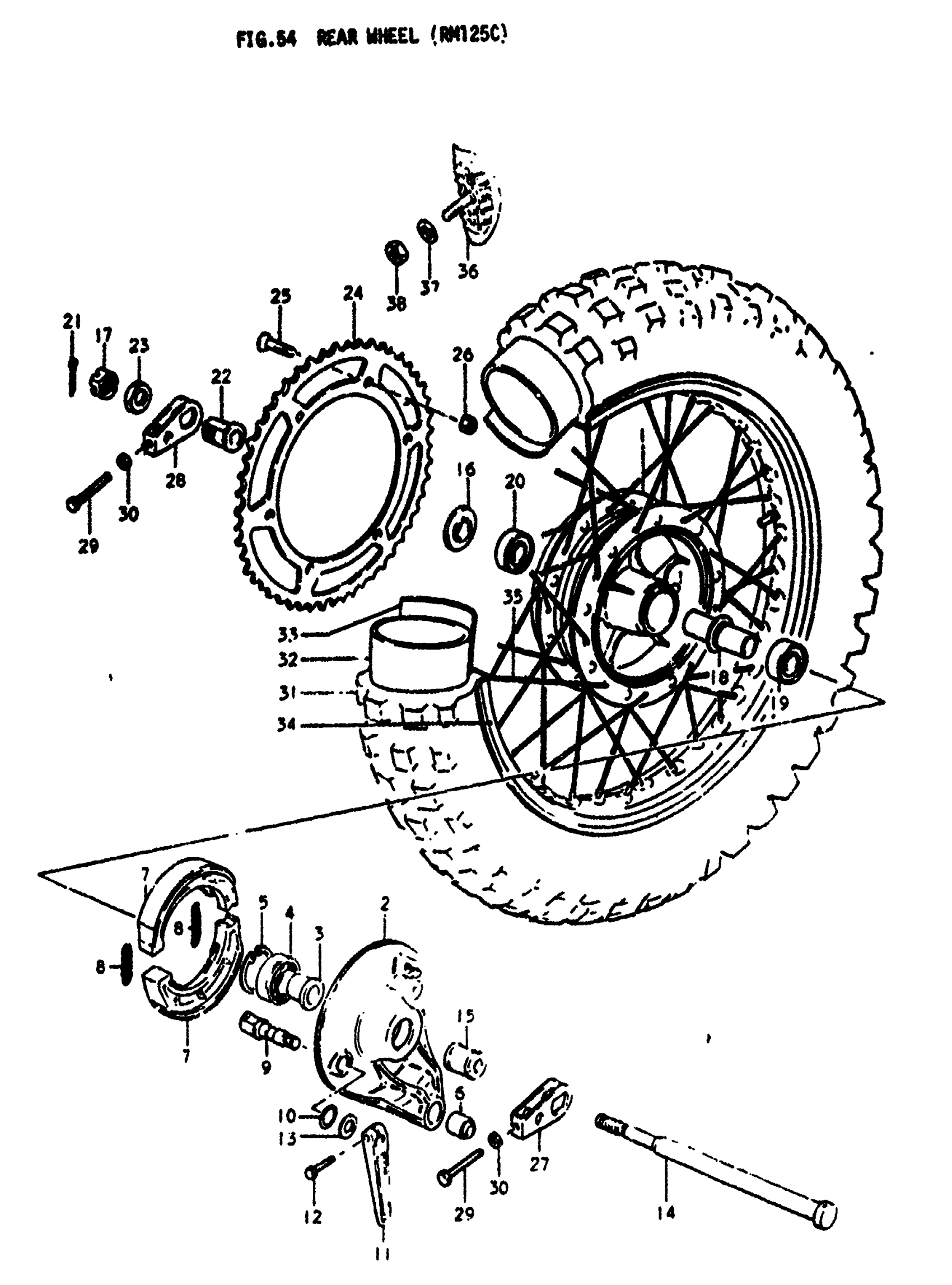

Find the part on the Rear Wheel diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Suzuki RM125 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64110-41320

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 64210-41320.

64200-41810

1
Out of stock

3

SPACER, PANEL

64213-41320

1
Out of stock

4

BEARING, RH This part replaces 08123-60047.

08133-60047

1
Out of stock

5

CIRCLIP This part replaces 08331-21429.

08331-41429

1
Out of stock

6

BUSH

09319-10008

1
Out of stock

7

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

2
Out of stock

8

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

9

CAM, BRAKE

54441-01002

1
Out of stock

10

DUST SEAL

09280-12001

1

$3.25

In stock

11

NO DESCRIPTION AVAILABLE This part replaces 54451-41300.

54451-41301

1
Out of stock

12

BOLT This part replaces 01107-06208.

01500-06207

1
Out of stock

13

WASHER | 12.5x20x1

09160-12011

1
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 64711-28001.

64711-4130V

1
Out of stock

15

SPACER, AXLE RH

64741-41320

1
Out of stock

16

SPACER, AXLE LH

64750-28000

1
Out of stock

17

NUT This part replaces 08314-41128.

08314-4012A

1
Out of stock

18

SPACER, HUB BEARING

64730-28001

1
Out of stock

19

BEARING, LH This part replaces 08143-62020.

08143-62027

1
Out of stock

20

BEARING This part replaces 08123-63020.

08123-6302B

1
Out of stock

21

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

22

SPACER, CHAIN ADJUSTER

64791-41700

1
Out of stock

23

NUT This part replaces 09140-18005.

09140-18501

1
Out of stock

24

NO DESCRIPTION AVAILABLE | NT : 59 This part replaces 64511-41030.

64511-41031

1
Out of stock

24

NO DESCRIPTION AVAILABLE | OPT; NT : 57 This part replaces 64511-41010.

64511-41011

1
Out of stock

24

NO DESCRIPTION AVAILABLE | OPT; NT :61 This part replaces 64511-41050.

64511-41051

1
Out of stock

25

SCREW This part replaces 09120-08003.

09120-08004

6
Out of stock

26

NUT

09159-08021

6
Out of stock

27

ADJUSTER, CHAIN RH

61410-41700

1
Out of stock

28

ADJUSTER, CHAIN LH

61420-41700

1
Out of stock

29

BOLT | 8x40

09100-08146

2
Out of stock

30

2

$1.93

In stock

31

TIRE (41018) | 4.10-18 This part replaces 65100-41311.

65100-14130

1
Out of stock

32

TUBE ASSY, WHEEL INNER | 4.10-18 This part replaces 65200-41310.

65200-42AA1

1
Out of stock

33

PROTECTOR, INNER TUBE | 25x18 This part replaces 65261-16510.

65261-33030

1
Out of stock

34

RIM, WHEEL (185x18) | 1.85-18 This part replaces 65311-41320.

65311-40200

1
Out of stock

35

NO DESCRIPTION AVAILABLE This part replaces 65300-41871.

65300-41872

1
Out of stock

36

STOPPER, BEAD This part replaces 65270-30001.

65270-43D00

2
Out of stock

37

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

38

NUT This part replaces 08310-12086.

08310-0008A

2
Out of stock
