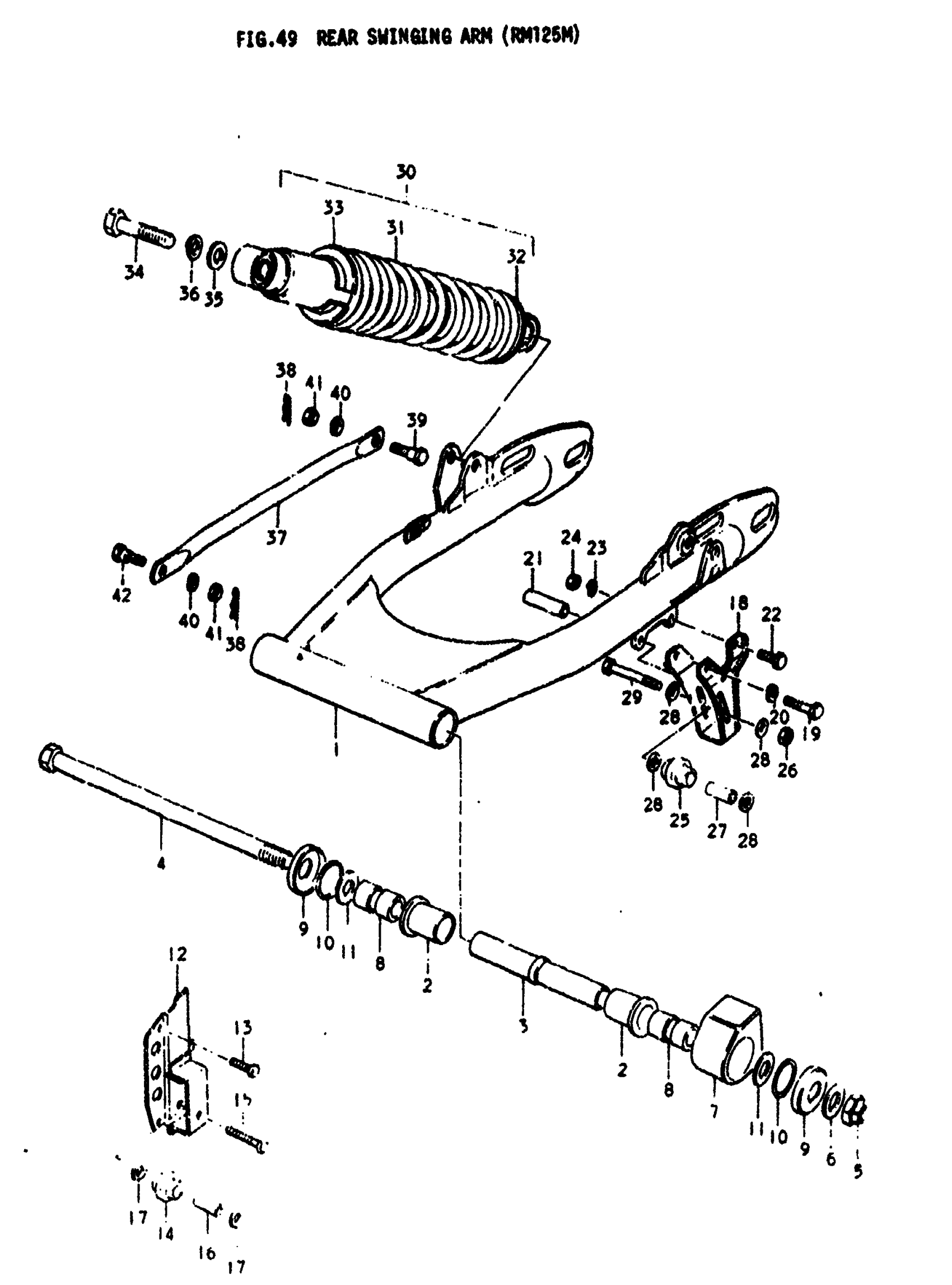

Suzuki RM125 (1978) REAR SWINGING ARM (RM125M) Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 3

61100-41813-019

Unavailable

2

BUSHING | TO 09307-18002 This part replaces 09307-18001.

09307-18002

$10.21

3

SPACER

61280-28000

Unavailable

4

SHAFT, PIVOT This part replaces 61211-28001.

61211-28002

Unavailable

4

SHAFT, PIVOT | F.NO.12255~

61211-28002

Unavailable

5

NUT

09159-12102

$3.23

6

WASHER This part replaces 08322-11128.

08322-01127

$1.84

7

BUFFER,CHAIN TO This part replaces 61273-28001.

61273-28002

$11.02

8

SPACER

61251-28000

$13.36

9

COVER, DUST SEAL

61262-09200

$3.59

10

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

11

THRUST WASHER | 12.5x24x2.3

09160-12005

$2.38

12

GUIDE, CHAIN FRONT

27640-41000

Unavailable

13

BOLT This part replaces 01112-06128.

01500-06127

$1.97

14

RUBBER, CHAIN GUIDE | L:22

61345-28301

Unavailable

14

ROLLER | L:22.5 This part replaces 61345-41100.

61345-41101

$5.83

15

BOLT This part replaces 01112-06358.

64455-07L00

$1.59

16

SPACER | L:22

61346-16200

Unavailable

16

SPACER | L:22.5

09180-06067

$2.59

17

WASHER (6.5X14X2.3) | 6.5x13x2.3 This part replaces 09160-06017.

09160-06127

$2.30

17

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

18

GUIDE, CHAIN

61340-40600

Unavailable

19

BOLT This part replaces 01112-06508.

01500-06507

$3.03

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

SPACER | 6.5x10.5x34

09180-06056

Unavailable

22

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

.NUT This part replaces 08311-11068.

08310-00067

$2.13

25

RUBBER, CHAIN GUIDE | L:22

61345-28301

Unavailable

25

ROLLER | L:22.5 This part replaces 61345-41100.

61345-41101

$5.83

26

NUT

09159-06018

Unavailable

27

SPACER | L:22

61346-16200

Unavailable

27

SPACER | L:22.5

09180-06067

$2.59

28

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

29

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

30

SHOCK ABSORBER ASSY, REAR | Includes Item(s) 31 - 33

62100-41010

Unavailable

31

SPRING

62211-41010

Unavailable

32

GUIDE, SPRING

62225-41010

Unavailable

33

SEAT, SPRING

62191-32112

Unavailable

34

BOLT 10X 40 | 10x30.5 This part replaces 09100-10096.

09100-10184

$3.16

35

WASHER This part replaces 08322-11108.

08322-01107

$2.15

36

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

37

TORQUE LINK REA This part replaces 64311-28000.

64311-28000-019

$18.80

38

CLIP This part replaces 09385-10001.

09385-10005

$1.56

39

BOLT

09111-08013

$3.04

40

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

41

NUT

09140-08008

$1.49

42

BOLT

09111-08015

$3.16
