Partiron

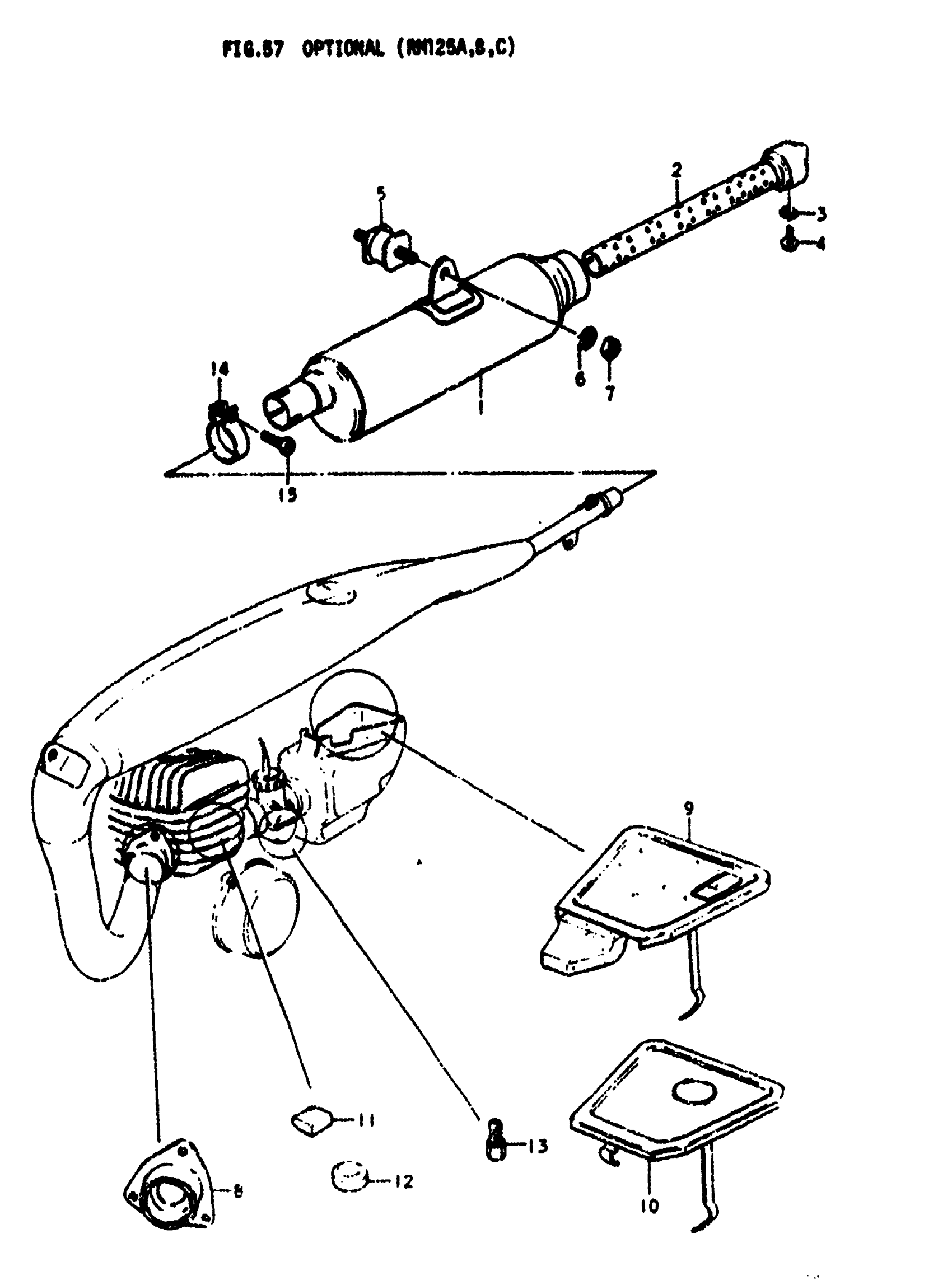

Suzuki RM125 (1978) OPTIONAL (RM125A Diagram

#

Description
Price

0

MUFFLER & AIR CLEANER COVER SE | A; FOR ARREST OF NOISESA; FOR ARREST OF NOISES

14300-41810

Unavailable

0

MUFFLER & AIR CLEANER COVER SE | B; FOR ARREST OF NOISESB; FOR ARREST OF NOISES This part replaces 14300-41830.

14301-41830

Unavailable

0

MUFFLER & AIR CLEANER COVER SE | C; FOR ARREST OF NOISESC; FOR ARREST OF NOISES; Includes Item(s) 1 - 15

14301-41830

Unavailable

1

MUFFLER ASSY, 2ND | A

14303-41700

Unavailable

1

MUFFLER ASSY, 2ND | B,C

14303-41720

Unavailable

2

PIPE, BATTLE | A,B,C

14510-41700

Unavailable

3

LOCK WASHER | A,B,C This part replaces 08321-21068.

08321-01067

$2.13

4

SCREW | A,B,C This part replaces 02112-06088.

02112-06087

$1.49

5

DAMPER | A,B,C

14770-41600

Unavailable

6

.LOCK WASHER | A,B,C This part replaces 08321-21088.

08321-01087

$2.13

7

NUT | A,B,C This part replaces 08310-12088.

08310-00087

$2.13

8

FLANGE, EXHAUST PIPE | A,B,C

14170-41700

Unavailable

9

COVER, AIR CLEANER | A,B

13750-41700

Unavailable

10

COVER, AIR CLEANER | C

13750-41500

Unavailable

11

RUBBER PAD | A

11252-25000

$4.52

12

RUBBER PAD | B,C This part replaces 11252-28000.

11252-13630

$3.25

13

JET, MAIN (200) | A,B,C; #200 This part replaces 09491-40004.

09491-40006

Unavailable

14

CLAMP | B,C

09402-28601

Unavailable

15

BOLT | B,C This part replaces 09128-06006.

09128-06057

$1.65
