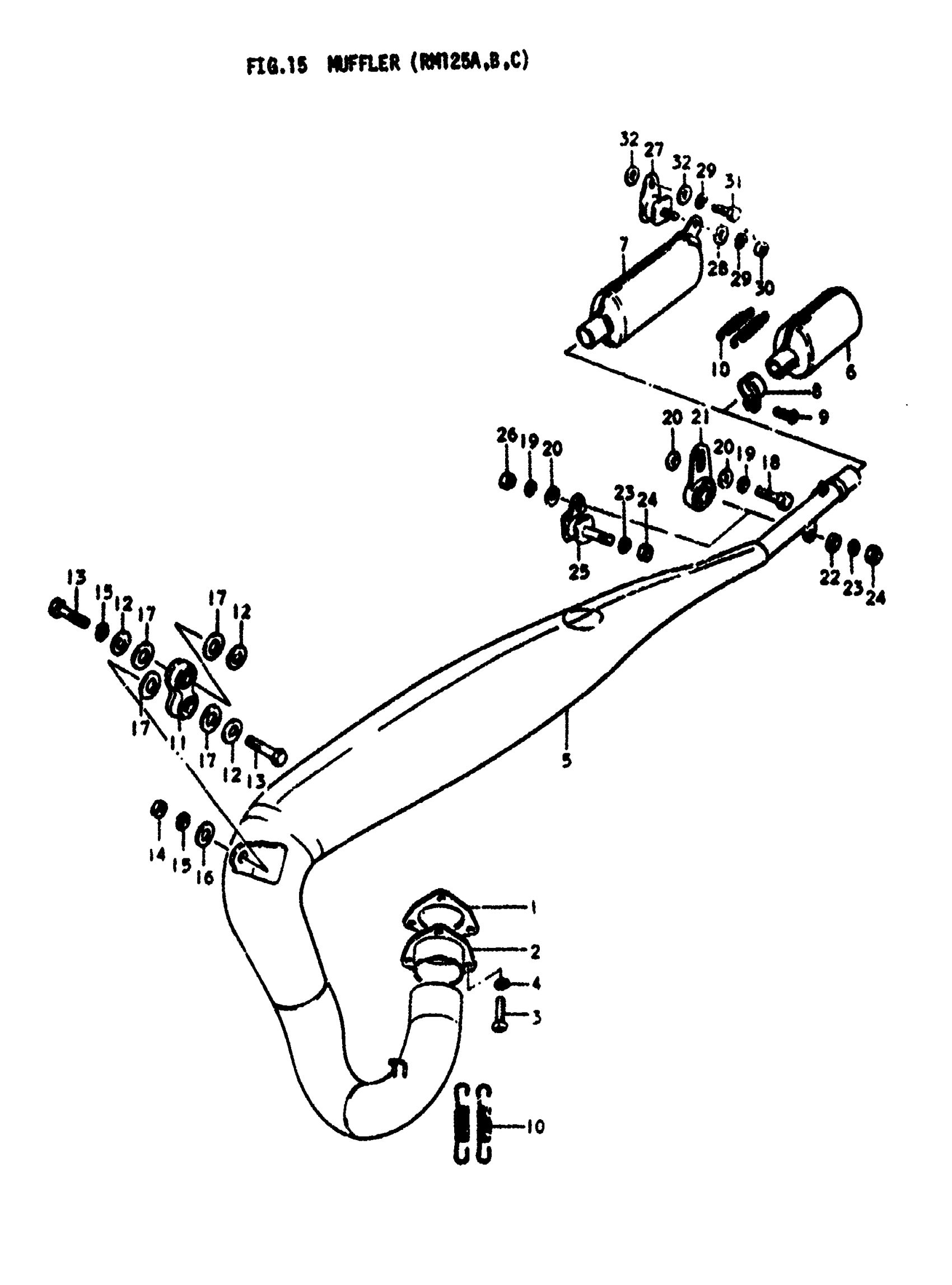

Suzuki RM125 (1978) MUFFLER (RM125A Diagram

#

Description
Price

1

GASKET,EXH FLAN | A,B,C This part replaces 14181-41300.

14181-40200-H17

Unavailable

2

FLANGE, EXHAUST PIPE | A,B,C

14170-41300

Unavailable

3

SCREW | A,B,C This part replaces 02112-06168.

02112-06167

$1.49

4

LOCK WASHER | A,B,C This part replaces 08321-21068.

08321-01067

$2.13

5

MUFFLER, 1ST | A

14310-41300

Unavailable

5

MUFFLER, 1ST | B,C

14310-41301

Unavailable

6

NO DESCRIPTION AVAILABLE | A; TO 14330-41760 This part replaces 14330-41300.

14330-41760-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | B,C This part replaces 14330-41601.

14330-41601-H01

Unavailable

8

CLAMP | A

09402-25601

Unavailable

9

BOLT | A This part replaces 09128-06006.

09128-06057

$1.65

10

SPRING | A,B,C

09443-11002

$3.10

11

DAMPER, MUFFLER | A,B,C

14770-40000

Unavailable

12

WASHER | A,B,C; 8.5x23x1.2 This part replaces 09160-08035.

09160-08130

$2.03

13

BOLT | A,B,C This part replaces 01107-08358.

01500-0835B

$3.04

14

NUT | A,B,C This part replaces 08310-12088.

08310-00087

$2.13

15

.LOCK WASHER | A,B,C This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER | A,B,C This part replaces 08322-11088.

08322-01087

$2.13

17

WASHER | A,B,C

09161-13001

Unavailable

18

BOLT | A This part replaces 01122-08308.

01500-08307

$3.04

19

.LOCK WASHER | A This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER, EXHAUST SUPPORT | A; 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

21

DAMPER, REAR | A This part replaces 14770-16440.

14700-40810

Unavailable

22

WASHER | A This part replaces 08322-21088.

08322-01087

$2.13

23

.LOCK WASHER | A This part replaces 08321-21088.

08321-01087

$2.13

24

NUT | A This part replaces 08312-11088.

08310-00087

$2.13

25

DAMPER, MUFFLER SUPPORT REAR | A; F.NO.36069~

14770-41320

Unavailable

26

NUT | A; F.NO.36069~ This part replaces 08312-11088.

08310-00087

$2.13

27

DAMPER, MUFFLER SUPPORT REAR | B,C

14770-41101

$17.14

28

WASHER | B,C This part replaces 08322-11088.

08322-01087

$2.13

29

LOCK WASHER | B,C This part replaces 08321-21086.

08321-0108A

$1.84

30

NUT | B,C This part replaces 08310-12088.

08310-00087

$2.13

31

BOLT, REAR | B,C This part replaces 01107-08208.

01500-08207

$2.53

32

WASHER (8.5X20X1.6) | B,C; 8.5x20x1.6 This part replaces 09160-08010.

09160-08054

$1.49
