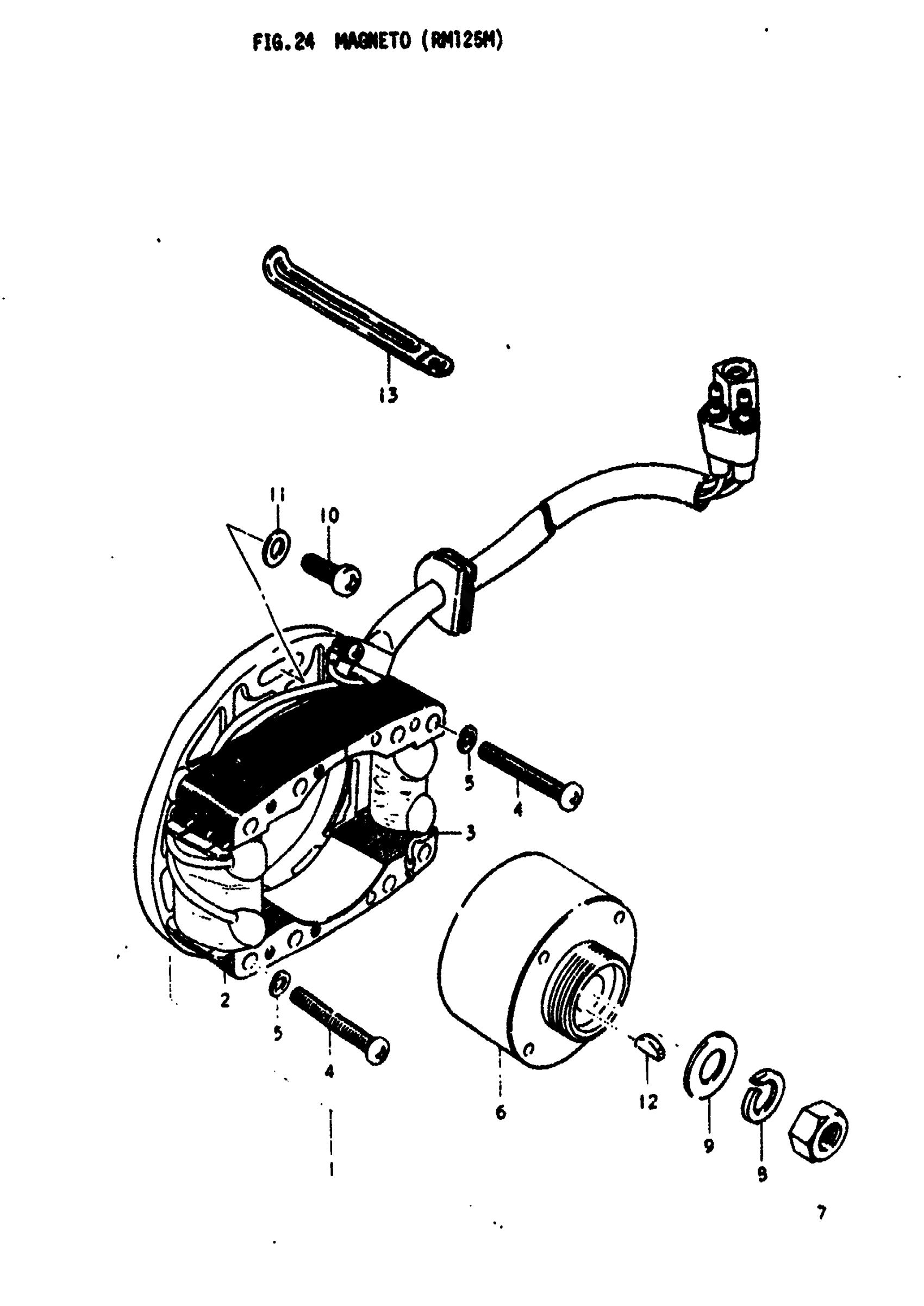

Suzuki RM125 (1978) MAGNETO (RM125M) Diagram

#

Description
Price

1

MAGNETO ASSY | TIMING MARK (1PCS)

32100-28300

Unavailable

1

MAGNETO ASSY | TIMING MARK (2PCS); Includes Item(s) 2 - 6

32100-28301

Unavailable

2

COIL, PRIMARY

32140-28300

Unavailable

3

COIL, PULSER

32150-28300

Unavailable

4

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

ROTOR | TIMING MARK (1PC) This part replaces 32102-28300.

32102-28301

Unavailable

6

ROTOR | TIMING MARK (2PCS)

32102-28301

Unavailable

7

NUT This part replaces 09140-10003.

09140-10041

$2.38

8

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

9

WASHER This part replaces 08322-11108.

08322-01107

$2.15

10

SCREW This part replaces 02112-06208.

02112-06207

$1.78

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

KEY

08341-31039

$1.89

13

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74
