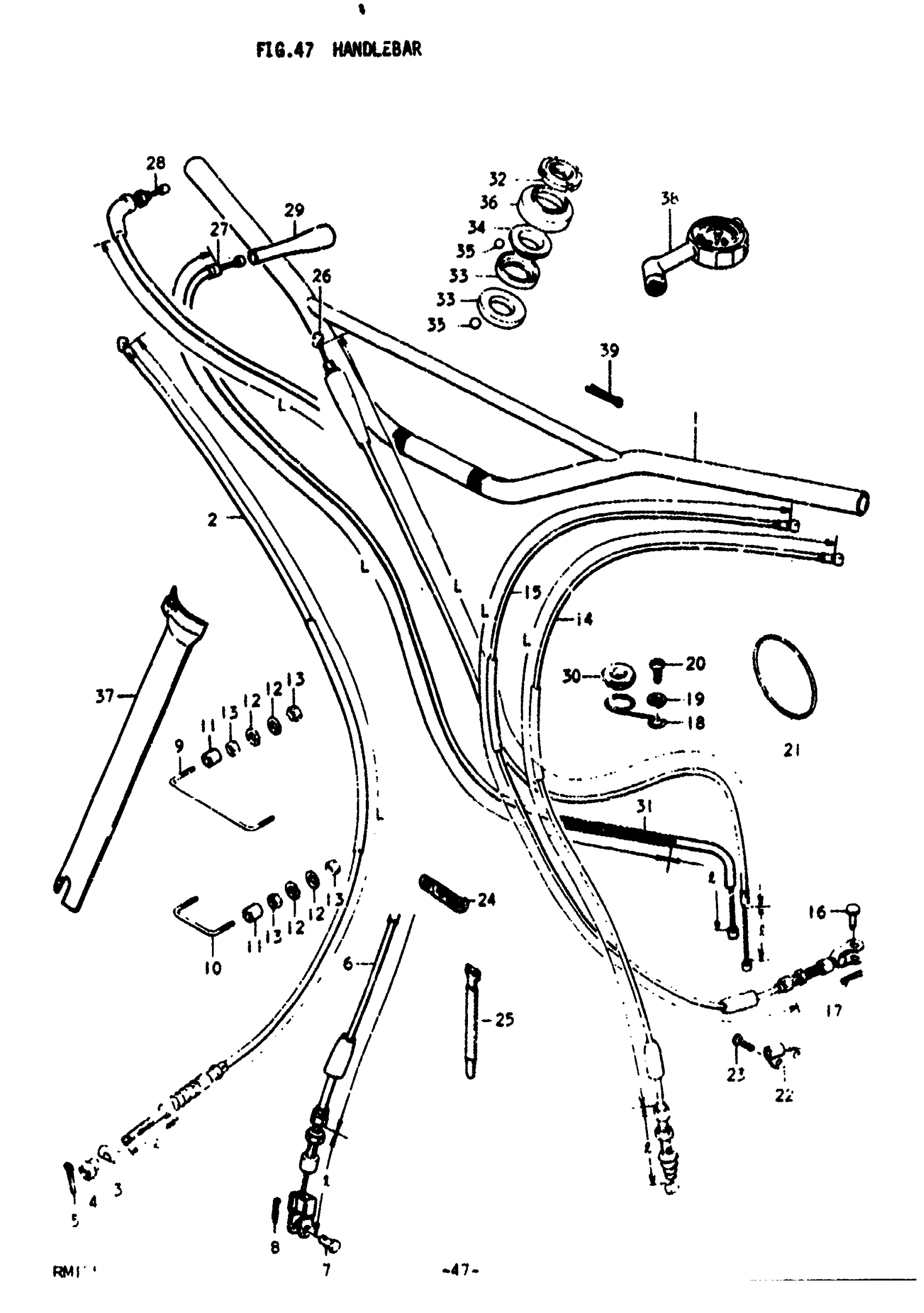

Suzuki RM125 (1978) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | M

56110-41000

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 56110-41301.

56110-41311

Unavailable

1

NO DESCRIPTION AVAILABLE | C This part replaces 56110-41110.

56110-41111

Unavailable

2

CABLE ASSY, FRONT BRAKE | M; L:1150, l:80 TO 58100-41001

58100-41000

Unavailable

2

CABLE ASSY, FRONT BRAKE | A; L:1175, l:80 FROM 58100-41001; Includes Item(s) 3 - 4

58100-41002

Unavailable

3

.PIN (13X18) | M,A This part replaces 09209-13003.

09209-13018

$3.42

4

.NUT | M,A This part replaces 09150-06001.

09150-06010

$3.10

5

.COTTER PIN | M,A This part replaces 04111-20158.

04111-2015A

$1.49

6

CABLE,FR BRAKE | B,C This part replaces 58100-41300.

58100-37200

Unavailable

7

PIN | B,C

09200-05001

$1.65

8

.COTTER PIN | B,C This part replaces 04111-20158.

04111-2015A

$1.49

9

GUIDE, CABLE NO.1 | M

58625-41000

Unavailable

10

GUIDE, CABLE NO.2 | M,A,BC

58626-41000

Unavailable

11

ROLLER | M,A,BC

09306-04002

Unavailable

12

WASHER | M,A,BC This part replaces 08322-21038.

08322-01037

$1.93

13

NUT | M,A,BC This part replaces 08311-11038.

08310-0003B

$2.83

14

CABLE ASSY, CLUTCH | M; L:980, l:110

58200-28301

Unavailable

15

CABLE ASSY, CLUTCH | A,B,C; L:1050

58200-41301

Unavailable

16

PIN | A,B,C

09200-06004

$2.20

17

.COTTER PIN | A,B,C This part replaces 04111-20158.

04111-2015A

$1.49

18

GUIDE, CLUTCH CABLE | M

09403-13401

$2.30

19

LOCK WASHER | M This part replaces 08321-21068.

08321-01067

$2.13

20

SCREW | M This part replaces 02112-06128.

02112-06127

$1.84

21

O RING, CLUTCH CABLE GUIDE | M

09280-76001

Unavailable

22

STOPPER, CLUTCH CABLE | A,B,C

58634-41300

Unavailable

23

SCREW | A,B,C This part replaces 02112-06108.

02112-06107

$1.49

24

CLAMP | A,B,C This part replaces 09404-06401.

09404-06039

$1.74

25

CLAMP | M; L:110 This part replaces 09407-11302.

09407-18302

$2.28

25

CLAMP | A,B,C; L:180 This part replaces 09407-18301.

09407-18302

$2.28

26

CABLE ASSY, THROTTLE | M; L:1150, l:117

58310-41000

Unavailable

27

CABLE,THROTTLE | A; L:1130, l:138 TO 58300-41611 This part replaces 58310-41300.

58300-41X02

Unavailable

28

CABLE,THROTTLE | A,B,C; L:1130, l:138 F.NO.40470~ This part replaces 58300-41612.

58300-41X02

Unavailable

29

DUST SEAL | M,A

58333-40000

Unavailable

30

GROMMET | M,A

09308-12002

$1.99

31

PROTECTOR | A,B,C

58399-27100

$3.78

32

NUT, STEERING STEM | M,A,B,C

51631-28000

$17.37

33

INNER RACE, STEERING LOWER | M,A,B,C

51611-33002

$13.81

34

OUTER RACE, STEERING UPPER | M,A,B,C

51621-30001

Unavailable

35

STEEL BALL | M,A,B,C

06111-08003

$1.49

36

DUST SEAL | M,A,B,C

51643-30000

Unavailable

37

PROTECTOR, FRONT FORK | M,A

51201-40001

Unavailable

38

GAUGE, FRONT FORK AIR | C This part replaces 96200-41310.

96200-41330

Unavailable

39

PIN | C This part replaces 04111-25258.

04111-2530A

$1.49
