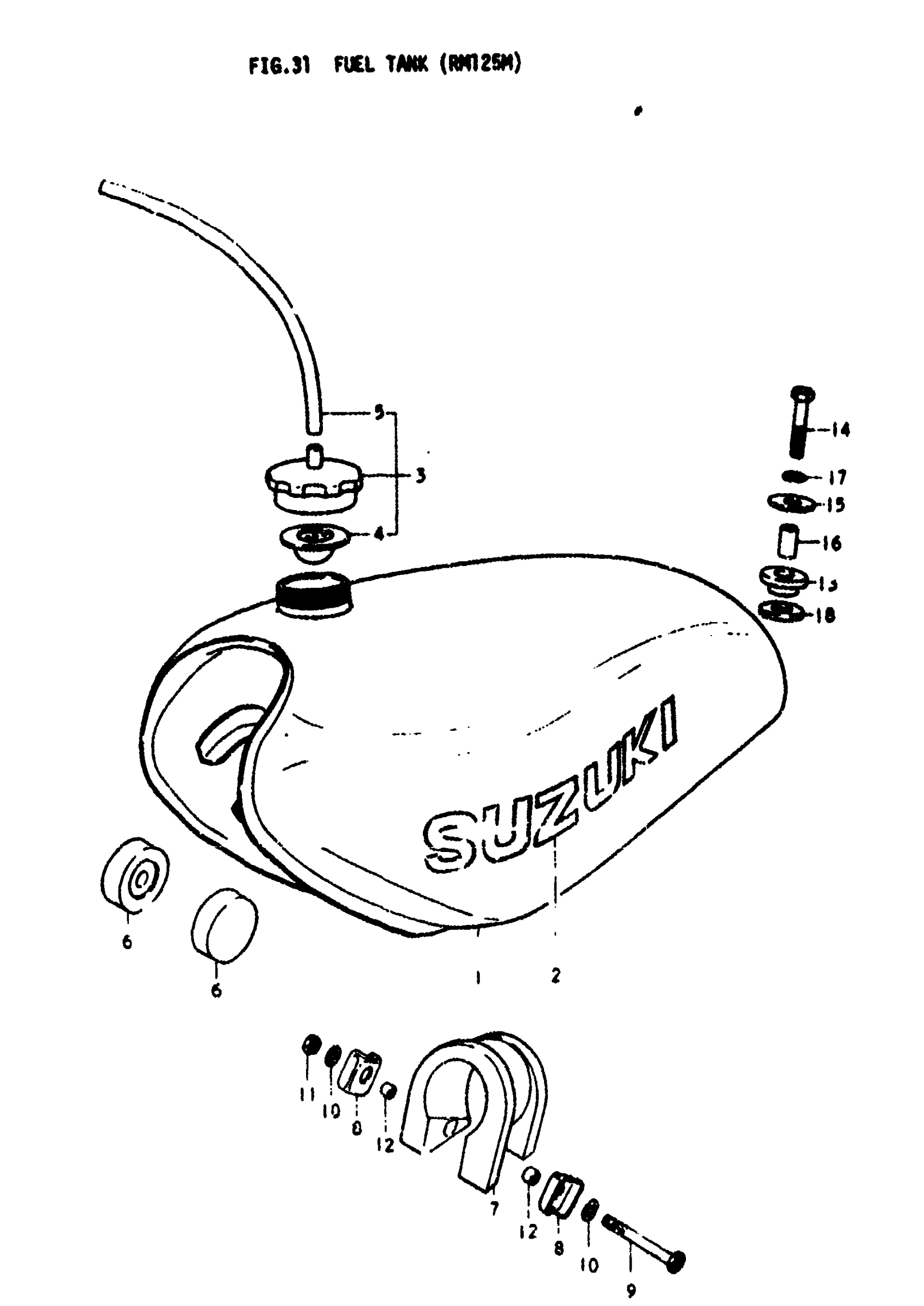

Suzuki RM125 (1978) FUEL TANK (RM125M) Diagram

#

Description
Price

1

FUEL TANK | TO 44110- 41002-163

44110-41001-163

Unavailable

1

FUEL TANK | F.NO. 13544~; Includes Item(s) 2

44110-41002-163

Unavailable

2

EMBLEM

68111-41600-60D

Unavailable

3

CAP ASSY, FUEL TANK | Includes Item(s) 4 - 5

44200-28300

Unavailable

4

GASKET

44248-28300

Unavailable

5

HOSE,5X10X600 | 5x8.2x150 This part replaces 09343-05036.

44421-13ER0

$10.06

6

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

7

CUSHION, FUEL TANK CENTER

44541-30000

Unavailable

8

PLATE, CUSHION

44549-30000

Unavailable

9

BOLT This part replaces 01112-06508.

01500-06507

$3.03

10

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

SPACER | 6.4x8x5.2 This part replaces 09180-06032.

09180-06246

$2.12

13

CUSHION

09320-12013

$2.60

14

WASHER, MUFFLER SUPPORT This part replaces 09160-08001.

09160-08503

$2.50

15

WASHER, MUFFLER SUPPORT | 8.5x30x2.3 This part replaces 09160-08001.

09160-08503

$2.50

16

SPACER 8.2X12X1 | 8x12x17 This part replaces 09180-08049.

09180-08143

$3.77

17

.LOCK WASHER This part replaces 08321-21089.

08321-01087

$2.13

18

CUSHION, FUEL TANK REAR LOWER

09320-12020

Unavailable
