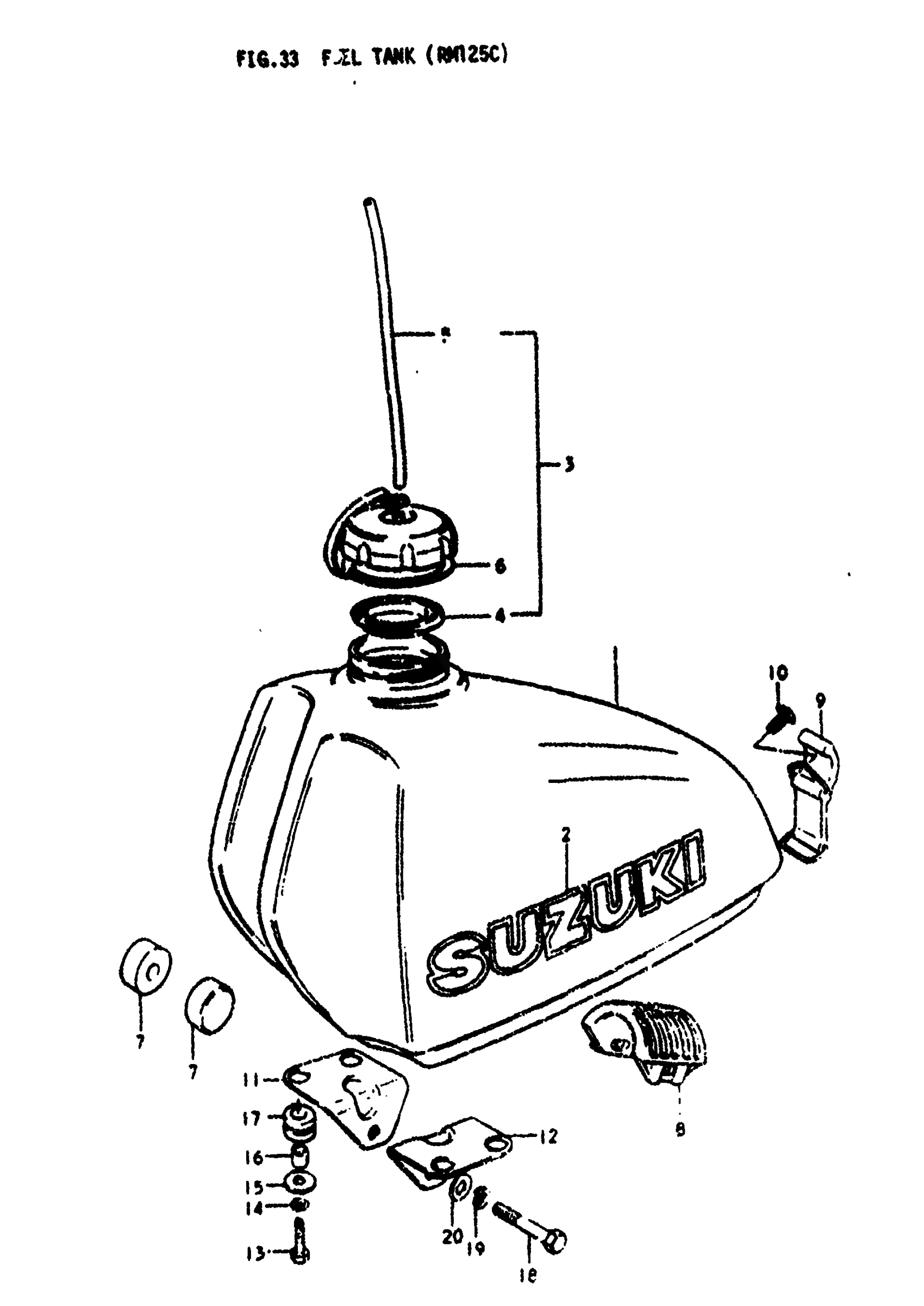

Suzuki RM125 (1978) FUEL TANK (RM125C) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-41310-163.

44100-41311-163

Unavailable

2

EMBLEM

68111-41110-019

$14.73

3

CAP ASSY, FUEL TANK | Includes Item(s) 4 - 6

44200-41110

Unavailable

4

GASKET

44248-41300

Unavailable

5

HOSE,5X10X600 | 3x8.2x220 This part replaces 09343-05031.

44421-13ER0

$10.06

6

BAND

44487-41300

Unavailable

7

CUSHION, FRONT

09329-10011

Unavailable

8

CUSHION, UPPER

44541-41300

Unavailable

9

BAND, REAR

44560-41300

Unavailable

10

SCREW

09125-06029

$1.72

11

NO DESCRIPTION AVAILABLE This part replaces 44520-41300.

44520-41301

Unavailable

12

BRACKET, LOWER LH

44531-41300

Unavailable

13

BOLT This part replaces 01107-06258.

01500-06257

$1.97

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

16

SPACER (6.5X10X10) | 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

17

.CUSHION This part replaces 09320-10010.

09320-10015

$2.54

18

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER

08322-21008

Unavailable
