Partiron

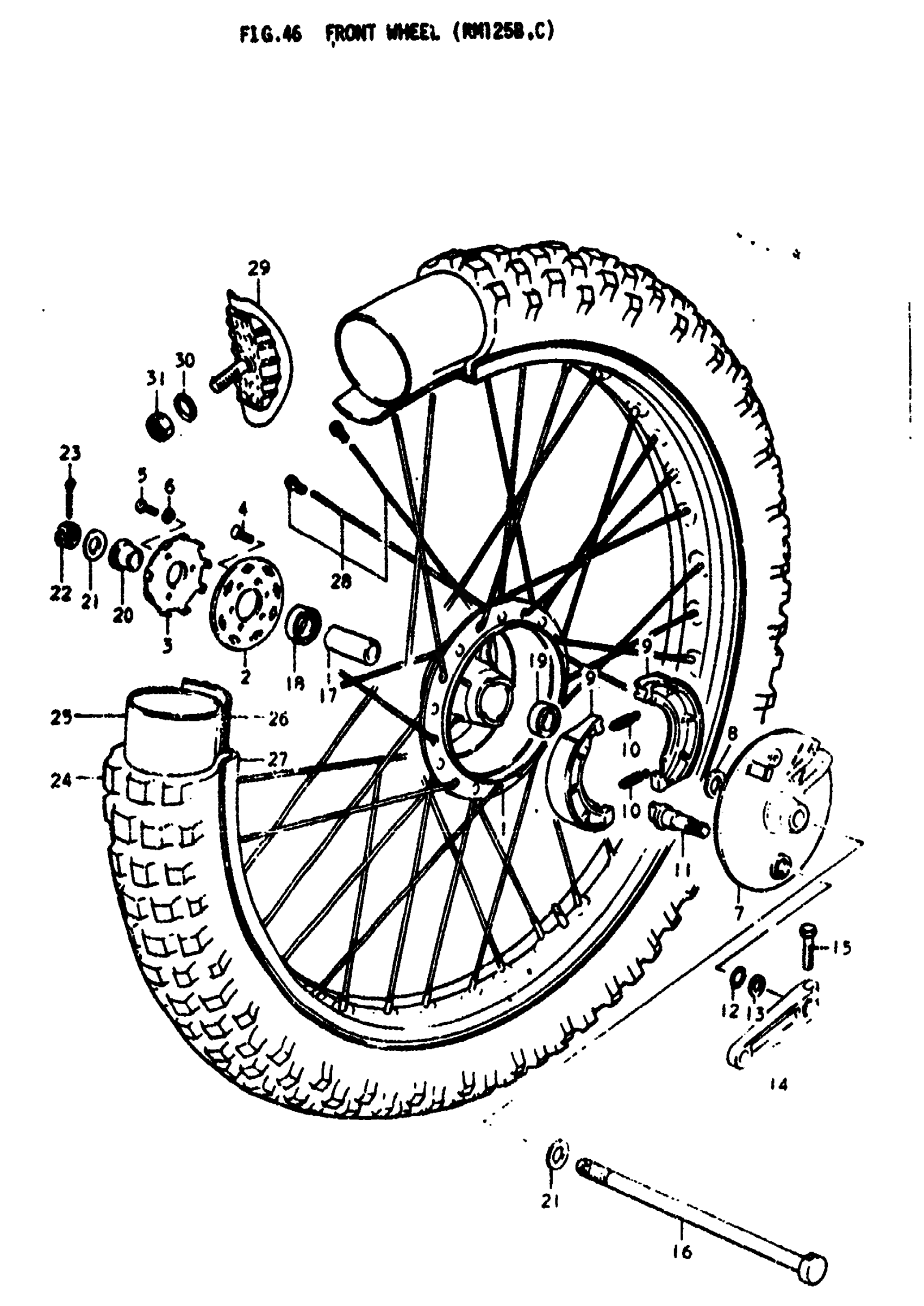

Suzuki RM125 (1978) FRONT WHEEL (RM125B Diagram

#

Description
Price

1

HUB, FRONT WHEEL | B; TO 54110-41301 This part replaces 54110-41300.

54110-41301

Unavailable

1

HUB, FRONT WHEEL | C

54110-41301

Unavailable

2

HUB FLANGE, FRONT RH | B

54112-41300

Unavailable

2

HUB FLANGE, FRONT RH | C

54112-41301

Unavailable

3

HOLDER, HUB BEARING RH | B,C

54151-30500

$8.42

4

SCREW | B,C This part replaces 02122-06168.

02122-06167

$1.49

5

BOLT, CANISTER | B,C This part replaces 01107-06168.

01500-06167

$1.97

6

LOCK WASHER | B,C This part replaces 08321-21068.

08321-01067

$2.13

7

NO DESCRIPTION AVAILABLE | B,C; Includes Item(s) 8 This part replaces 54210-41300.

54210-41301

Unavailable

8

BOSS | B,C

54221-41300

Unavailable

9

SHOE SET, BRAKE | B,C This part replaces 54410-07002.

54401-07810

Unavailable

10

SPRING | B,C This part replaces 09443-07001.

09443-07025

$2.08

11

CAM, BRAKE | B,C

54441-41300

Unavailable

12

DUST SEAL | B,C

09280-12001

$2.90

13

WASHER | B,C; 12.5x20x1

09160-12011

$1.54

14

NO DESCRIPTION AVAILABLE | B,C This part replaces 54451-41300.

54451-41301

Unavailable

15

BOLT | B,C This part replaces 01107-06258.

01500-06257

$1.97

16

AXLE,FRONT | B,C This part replaces 64711-43000.

64711-43001

$41.97

17

SPACER (12.5X19X52) | B,C; 12.6x19x52 This part replaces 09180-12041.

09180-12144

$10.30

18

BEARING | B,C This part replaces 08123-62010.

08133-62017

$18.47

19

BEARING | B,C This part replaces 08143-62010.

08143-6201B

$10.80

20

SPACER, RH | B,C

54741-41100

$15.13

21

WASHER | B,C This part replaces 08322-11128.

08322-01127

$1.84

22

NUT | B,C This part replaces 08314-41128.

08314-4012A

$2.50

23

PIN | B,C This part replaces 04111-30308.

04111-3030A

$1.49

24

TIRE, FRONT | B; 3.00-21

55100-41310

Unavailable

24

TIRE, FRONT | C; 3.00-21

55100-41311

Unavailable

25

TIRE, FRONT | B,C; 3.00-21 This part replaces 55200-16510.

55200-16511

$36.73

26

PROTECTOR, INNER TUBE | B,C; 25x21 This part replaces 55261-16510.

55261-14540

$3.83

27

RIM, WHEEL | B,C; 1.60Ax21

55311-41320

Unavailable

28

NO DESCRIPTION AVAILABLE | B This part replaces 55300-41830.

55300-41831

Unavailable

28

NO DESCRIPTION AVAILABLE | C This part replaces 55300-41840.

55300-41841

Unavailable

29

STOPPER, BEAD | B,C This part replaces 65270-30001.

65270-43D00

$58.75

30

WASHER | B,C This part replaces 08322-11088.

08322-01087

$2.13

31

NUT | B,C This part replaces 08310-12088.

08310-00087

$2.13
