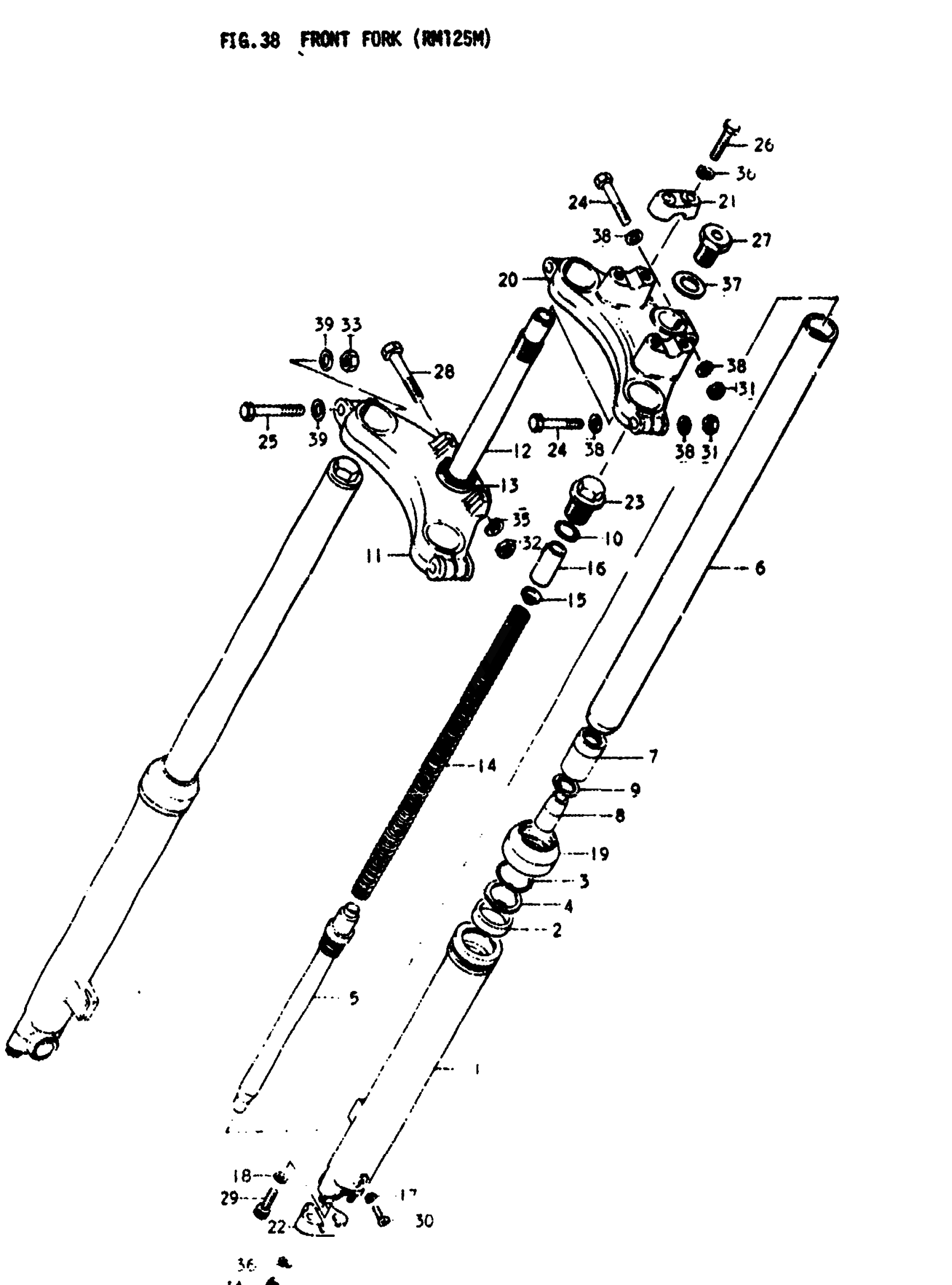

Suzuki RM125 (1978) FRONT FORK (RM125M) Diagram

#

Description
Price

0

FRONT FORK ASSY | Includes Item(s) 1 - 39

51100-41011

Unavailable

1

OUTER TUBE

51140-32111

Unavailable

2

OIL SEAL

51153-34010

Unavailable

3

SNAP RING

51156-32110

Unavailable

4

WASHER

51158-32110

Unavailable

5

CYLINDER

51146-41011

Unavailable

6

INNER TUBE

51111-41010

Unavailable

7

PISTON

51112-38010

Unavailable

8

PIECE, OIL LOCK

51195-38010

Unavailable

9

SNAP RING

51118-38010

Unavailable

10

O RING

51117-16310

Unavailable

11

STEERING STEM

51411-41010

Unavailable

12

SHAFT, STEERING

51401-32110

Unavailable

13

OUTER RACE

51621-33001

$16.25

14

SPRING

51171-41010

Unavailable

15

GUIDE, SPRING

51172-38010

Unavailable

16

SPACER

51176-41010

Unavailable

17

GASKET, DRAIN PLUG

51183-03010

$2.07

18

GASKET

51148-16510

Unavailable

19

DUST SEAL

51173-32110

Unavailable

20

STEERING STEM HEAD

51311-41010

Unavailable

21

HOLDER, HANDLEBAR

56211-27100

$15.23

22

HOLDER, FRONT AXLE

51132-16510

Unavailable

23

CAP This part replaces 51351-38010.

51351-40210

Unavailable

24

BOLT This part replaces 01122-08508.

01500-08507

$3.05

25

BOLT This part replaces 01121-12558.

01500-1255B

$4.77

26

BOLT This part replaces 01221-08357.

01204-08357

$2.09

27

BOLT

51351-28310

Unavailable

28

BOLT This part replaces 01122-10608.

01500-1060A

$4.41

29

BOLT

51147-16510

$4.34

30

SCREW This part replaces 02111-04087.

02112-04087

$1.49

31

NUT This part replaces 08312-12088.

08310-00087

$2.13

32

NUT This part replaces 08312-12108.

08310-00107

$2.19

33

NUT, FIXED DRIVE FACE This part replaces 08312-11128.

09140-12039

$3.05

34

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

35

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

36

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

37

WASHER

51356-28310

Unavailable

38

WASHER This part replaces 08322-21088.

08322-01087

$2.13

39

WASHER This part replaces 08322-11128.

08322-01127

$1.84
