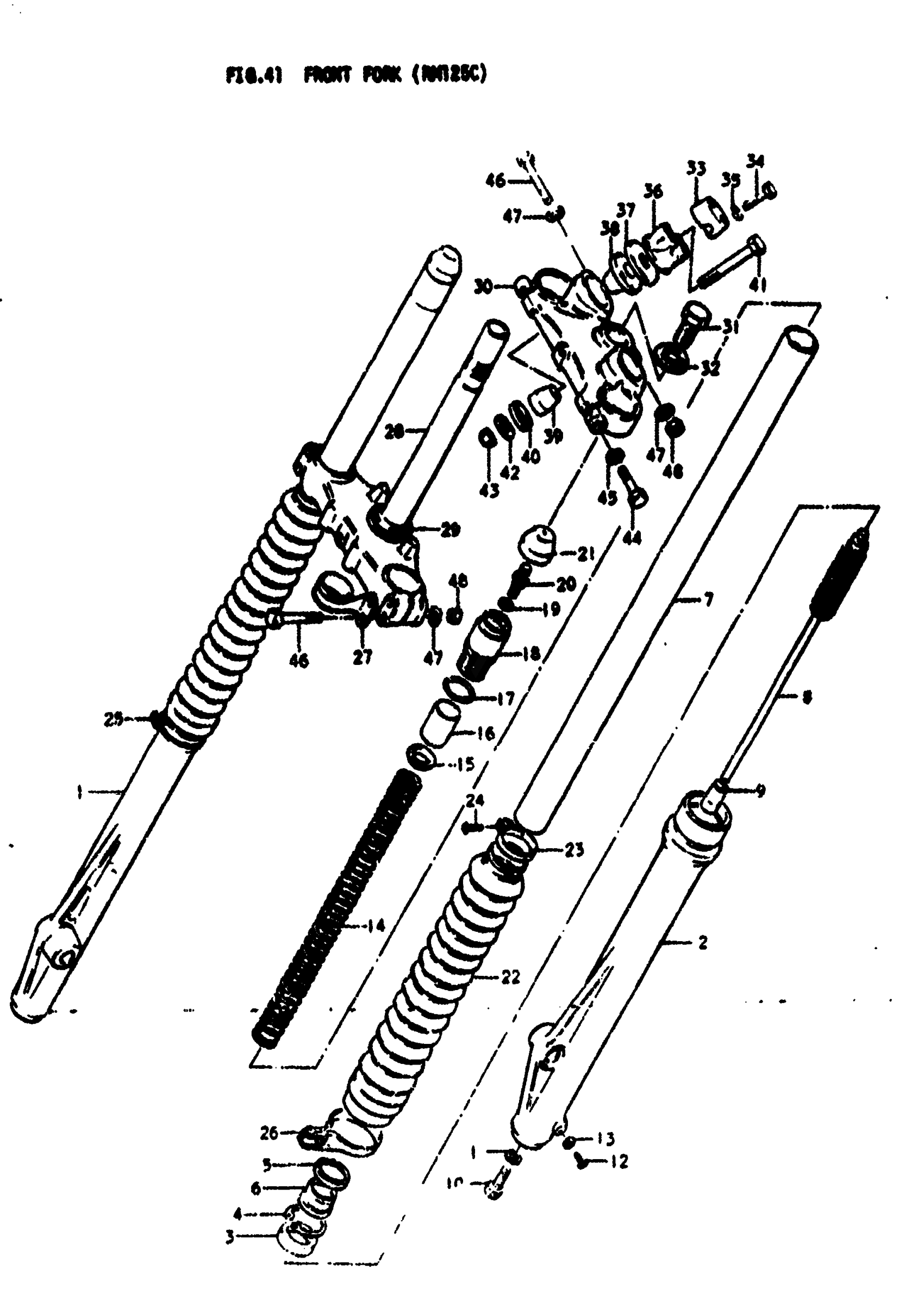

Suzuki RM125 (1978) FRONT FORK (RM125C) Diagram

#

Description
Price

0

FRONT FORK ASSY | Includes Item(s) 1 - 48

51100-41320

Unavailable

1

OUTER TUBE, RH

51130-41320

Unavailable

2

OUTER TUBE, LH

51140-41320

Unavailable

3

FORK OIL SEAL This part replaces 51153-41211.

51153-16730

Unavailable

4

SNAP RING

51156-41211

Unavailable

5

CASE, DUST SEAL This part replaces 51149-41211.

51149-40500

Unavailable

6

DUST SEAL

51173-41211

Unavailable

7

INNER TUBE This part replaces 51110-41320.

51110-41220

Unavailable

8

CYLINDER

51146-41320

Unavailable

9

PIECE, OIL LOCK This part replaces 51195-41210.

51195-49071

$21.43

10

BOLT

51147-16510

$4.34

11

GASKET

51148-41310

$2.26

12

SCREW This part replaces 02111-04087.

02112-04087

$1.49

13

GASKET

51183-03010

$2.07

14

SPRING

51171-41220

Unavailable

15

GUIDE, SPRING

51172-38010

Unavailable

16

SPACER

51176-49010

Unavailable

17

O RING

51117-16310

Unavailable

18

CAP

51351-41220

Unavailable

19

O RING

51117-41211

Unavailable

20

VALVE This part replaces 51169-41211.

51293-49001

Unavailable

21

CAP

51189-41220

Unavailable

22

BOOT This part replaces 51571-41211.

51571-38265-38K

Unavailable

23

BAND

51575-41410

Unavailable

24

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

25

BAND, RH

51573-41410

Unavailable

26

CLIP

51572-41220

Unavailable

27

CLIP

58621-41220

Unavailable

28

NO DESCRIPTION AVAILABLE This part replaces 51410-41220.

51410-41500

Unavailable

29

OUTER RACE

51621-33001

$16.25

30

HEAD, STEERING STEM

51311-41220

Unavailable

31

BOLT

51351-41320

Unavailable

32

WASHER

51356-41310

Unavailable

33

HOLDER, HANDLE UPPER

56211-27100

$15.23

34

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

35

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

36

HOLDER, HANDLE LOWER

56221-41220

Unavailable

37

COVER, UPPER

51721-41220

Unavailable

38

RUBBER, UPPER

56241-41220

Unavailable

39

RUBBER, LOWER

56242-41220

Unavailable

40

COVER, LOWER

51722-41220

Unavailable

41

BOLT

51321-41220

Unavailable

42

WASHER This part replaces 08322-21128.

08322-01127

$1.84

43

NUT This part replaces 08319-21128.

08319-2112A

$3.76

44

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

45

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

46

BOLT This part replaces 01107-08558.

01500-08557

$3.16

47

WASHER This part replaces 08322-21088.

08322-01087

$2.13

48

NUT This part replaces 08310-12088.

08310-00087

$2.13
