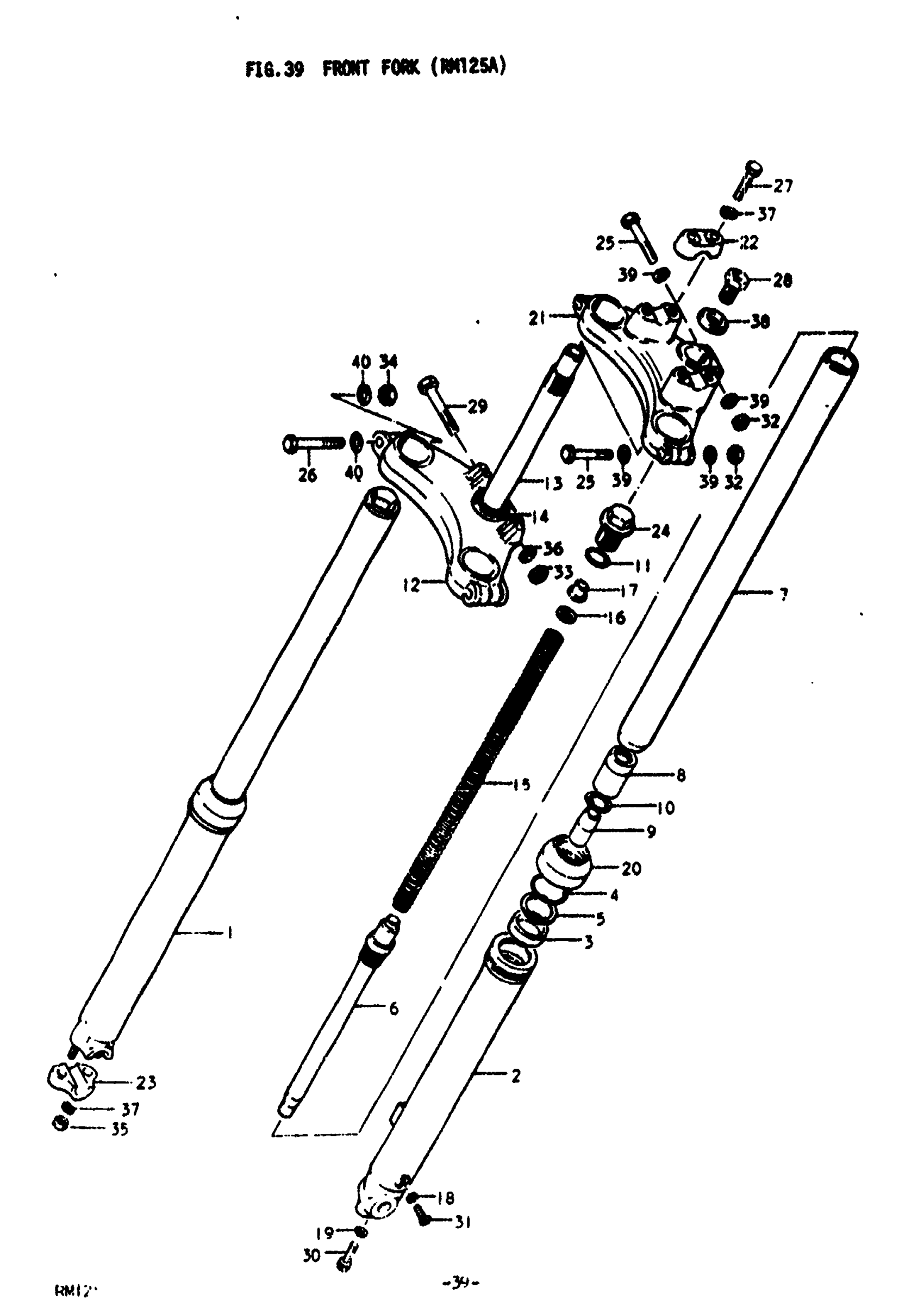

Suzuki RM125 (1978) FRONT FORK (RM125A) Diagram

#

Description
Price

0

FRONT FORK ASSY | TO 51100-41311 This part replaces 51100-41310.

51100-41311

Unavailable

0

FRONT FORK ASSY | F.NO.32716~; Includes Item(s) 1 - 40

51100-41311

Unavailable

1

OUTER TUBE, RH

51130-41310

Unavailable

2

OUTER TUBE, LH

51140-41310

Unavailable

3

OIL SEAL

51153-34010

Unavailable

4

SNAP RING

51156-32110

Unavailable

5

WASHER

51158-32110

Unavailable

6

CYLINDER

51146-41310

Unavailable

6

CYLINDER | F.NO.32716~

51146-41311

Unavailable

7

INNER TUBE

51111-41310

Unavailable

8

PISTON

51112-38010

Unavailable

9

PIECE, OIL LOCK

51195-38010

Unavailable

10

SNAP RING

51118-38010

Unavailable

11

O RING

51117-16310

Unavailable

12

STEERING STEM

51411-41310

Unavailable

13

SHAFT, STEERING

51401-41310

Unavailable

14

OUTER RACE

51621-33001

$16.25

15

SPRING

51171-41311

Unavailable

16

WASHER

51356-07010

$6.65

17

SPACER

51176-41310

Unavailable

18

GASKET, DRAIN PLUG

51183-03010

$2.07

19

GASKET

51148-41310

$2.26

20

DUST SEAL

51173-41310

Unavailable

21

STEERING STEM HEAD

51311-41010

Unavailable

22

HOLDER, HANDLEBAR

56211-27100

$15.23

23

HOLDER, FRONT AXLE

51132-16510

Unavailable

24

CAP This part replaces 51351-38010.

51351-40210

Unavailable

25

BOLT This part replaces 01122-08508.

01500-08507

$3.05

26

BOLT This part replaces 01121-12558.

01500-1255B

$4.77

27

BOLT This part replaces 01221-08357.

01204-08357

$2.09

28

BOLT

51351-41310

Unavailable

29

BOLT This part replaces 01122-10608.

01500-1060A

$4.41

30

BOLT

51147-41310

Unavailable

31

SCREW This part replaces 02111-04087.

02112-04087

$1.49

32

NUT This part replaces 08312-12088.

08310-00087

$2.13

33

NUT This part replaces 08312-12108.

08310-00107

$2.19

34

NUT, FIXED DRIVE FACE This part replaces 08312-11128.

09140-12039

$3.05

35

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

36

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

37

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

38

WASHER

51356-41310

Unavailable

39

WASHER This part replaces 08322-21088.

08322-01087

$2.13

40

WASHER This part replaces 08322-11128.

08322-01127

$1.84
