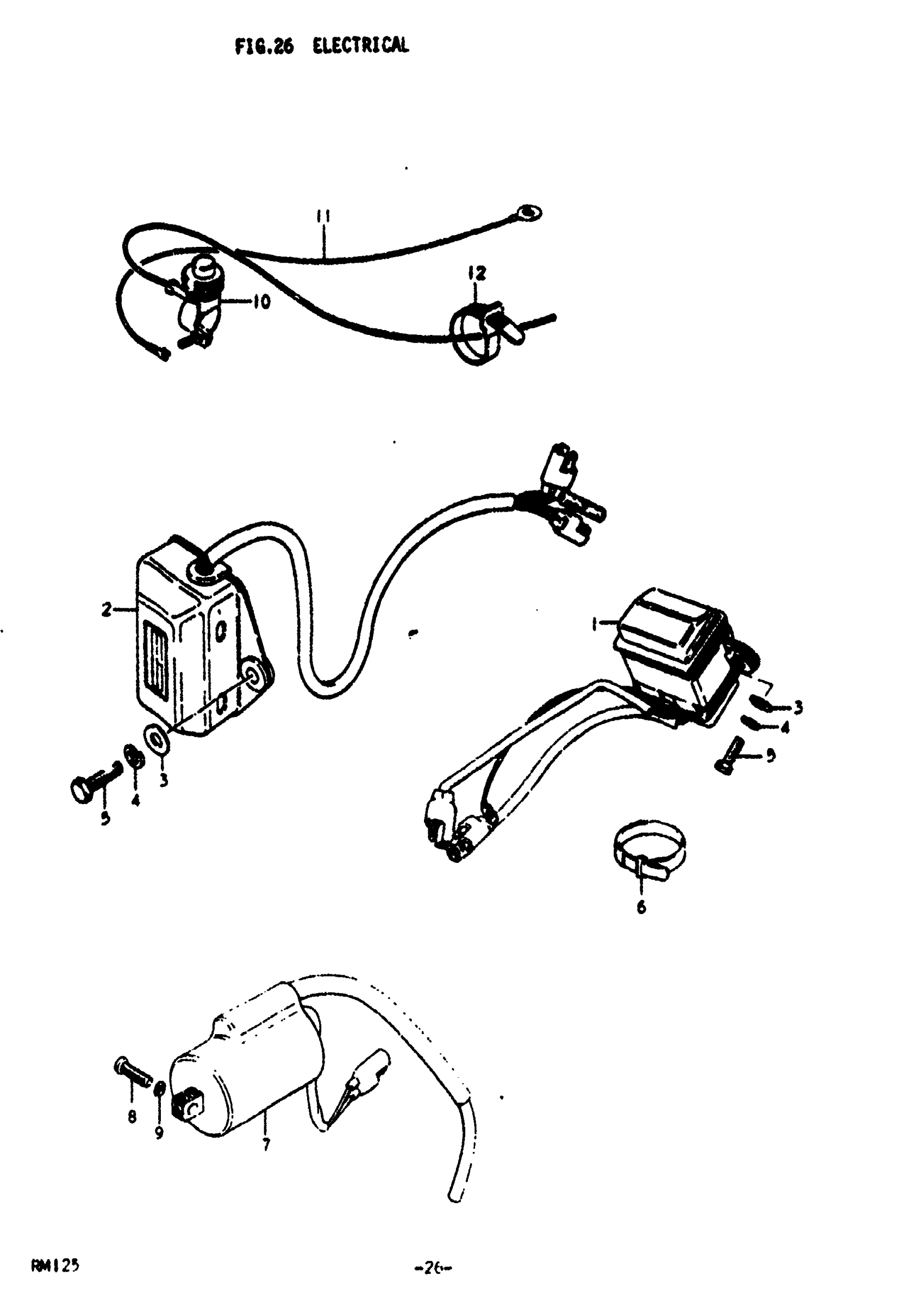

Suzuki RM125 (1978) ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT ASSY | M

31900-28300

Unavailable

2

CDI UNIT ASSY | A

32900-41320

Unavailable

2

CDI UNIT ASSY | B,C

32900-41321

Unavailable

3

.WASHER | M This part replaces 08322-11068.

08322-0106B

$2.26

3

WASHER | A,B,C; 6.5x16x1.2

09160-06019

$1.49

4

LOCK WASHER | M,A,B,C This part replaces 08321-21068.

08321-01067

$2.13

5

BOLT | M,A,B,C This part replaces 01107-06208.

01500-06207

$2.28

6

CLAMP | M; L:110 This part replaces 09407-11302.

09407-18302

$2.28

7

COIL ASSY, IGNITION | M This part replaces 33410-30020.

33410-14120

$115.17

7

COIL ASSY, IGNITION | A,B,C This part replaces 33410-41320.

33410-14120

$115.17

8

SCREW | M,A,B,C This part replaces 02112-05208.

02112-05207

$1.97

9

LOCK WASHER | M,A,B,C This part replaces 08321-21058.

08321-0105A

$1.84

10

SWITCH ASSY, ENGINE STOP | M,A,B; - TO 37820-04430 This part replaces 37820-16512.

37820-14X50

$48.54

10

SWITCH ASSY, ENGINE STOP | C This part replaces 37820-04430.

37820-14X50

$48.54

11

LEAD WIRE | A,B,C

36851-41200

Unavailable

12

CLAMP | M; L:120

09407-12402

$3.04
