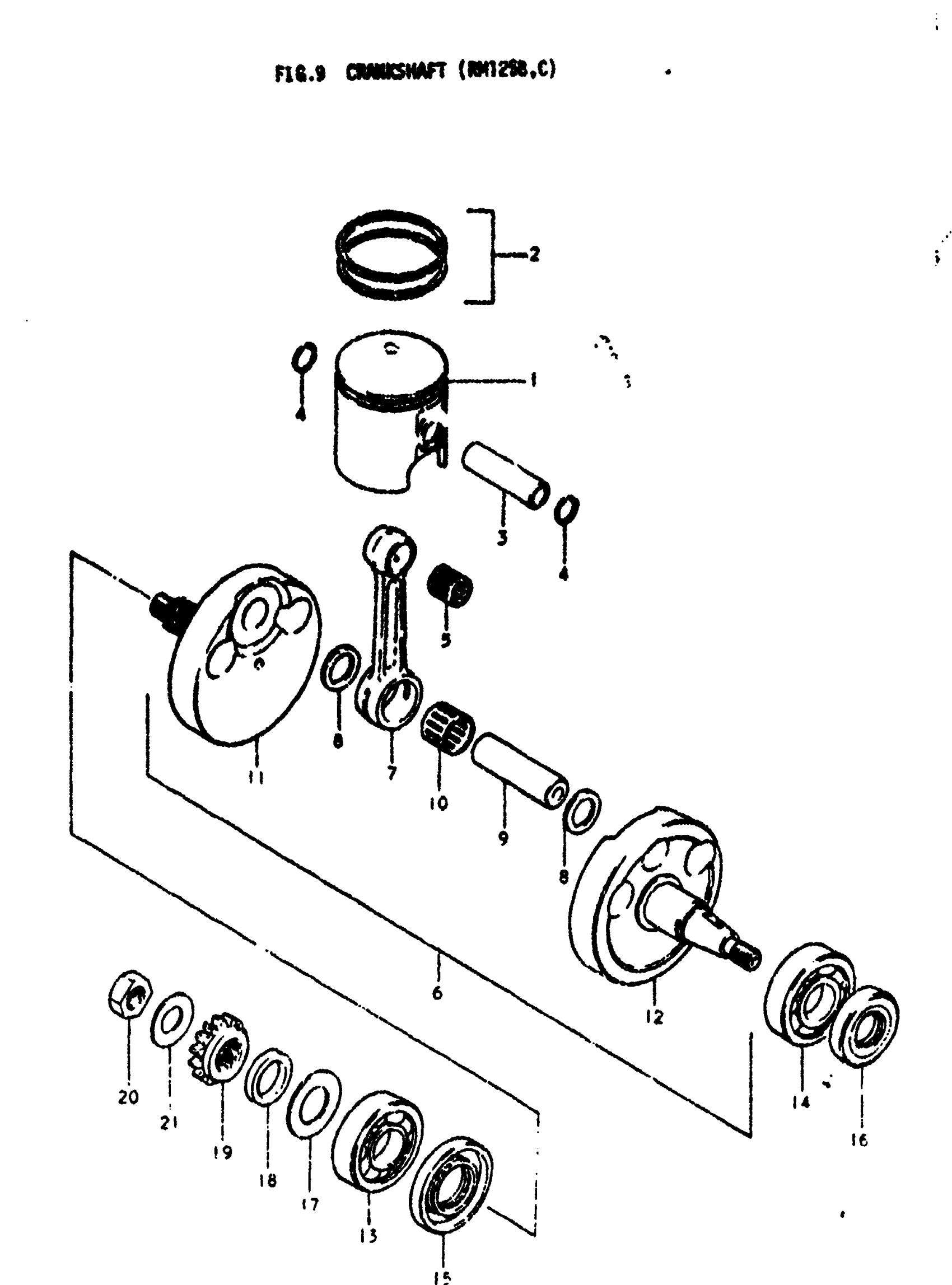

Suzuki RM125 (1978) CRANKSHAFT (RM125B Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B This part replaces 12110-41640.

12110-41311

Unavailable

1

NO DESCRIPTION AVAILABLE | C This part replaces 12110-41310.

12110-41311

Unavailable

1

NO DESCRIPTION AVAILABLE | B; OS:0.25 This part replaces 12110-41650.

12110-41311-025

Unavailable

1

NO DESCRIPTION AVAILABLE | C; OS:0.25 This part replaces 12110-41310-025.

12110-41311-025

Unavailable

1

NO DESCRIPTION AVAILABLE | B; OS:0.5 This part replaces 12110-41660.

12110-41311-050

Unavailable

1

NO DESCRIPTION AVAILABLE | C; OS:0.5 This part replaces 12110-41310-050.

12110-41311-050

Unavailable

2

RING SET, PISTON | B; FROM 12140-41630

12140-41660

Unavailable

2

RING SET, PISTON | C

12140-41310

Unavailable

2

NO DESCRIPTION AVAILABLE | C; OS:0.25 FROM 12140-41640 This part replaces 12140-41670.

12140-41660-025

Unavailable

2

RING SET, PISTON | C; OS:0.25

12140-41310-025

Unavailable

2

NO DESCRIPTION AVAILABLE | B; OS:0.5; FROM 12140-41650 This part replaces 12140-41680.

12140-41660-050

Unavailable

2

RING SET, PISTON | C; OS:0.5

12140-41310-050

Unavailable

3

PIN, PISTON | B,C This part replaces 12151-11000.

12151-39300

$20.88

4

RING | B,C

09381-14001

$1.49

5

ROLLR BRG,14X18 | B,C This part replaces 09263-14006.

09263-14022

$11.97

6

CRANKSHAFT ASSY | B,C; Includes Item(s) 7 - 12

12200-41610

Unavailable

7

CONNECTING ROD | B,C This part replaces 12161-12001.

12161-39300

$69.47

8

THRUST WASHER | B,C; 19x32x1

09160-19001

$3.27

9

PIN, CRANK | B,C This part replaces 12211-41000.

12211-48001

$38.85

10

BEARING | B,C

09263-19009

$16.75

11

CRANKSHAFT, RH | B,C

12220-41610

Unavailable

12

CRANKSHAFT, LH | B,C

12260-41610

Unavailable

13

BEARING, RH (22X56X16) | B,C; 22x56x16 This part replaces 09262-22012.

09262-22025

$57.67

14

BEARING, LH | B,C; 25x52x15 This part replaces 09262-25052.

09262-25070-0A0

$37.33

15

OIL SEAL, RH | B,C; 30x56x9

09289-30003

Unavailable

16

OIL SEAL, LH | B,C; 24.2x44x7 This part replaces 09283-25037.

09283-25066

$7.50

17

WASHER | B,C; 22x40x7

08212-22401

Unavailable

18

SPACER | B,C

09180-22013

Unavailable

19

GEAR, PRIMARY DRIVE | B,C; NT:18

21111-41301

Unavailable

20

NUT | B,C

09140-16002

$3.16

21

WASHER | B,C

09164-16002

$3.16
