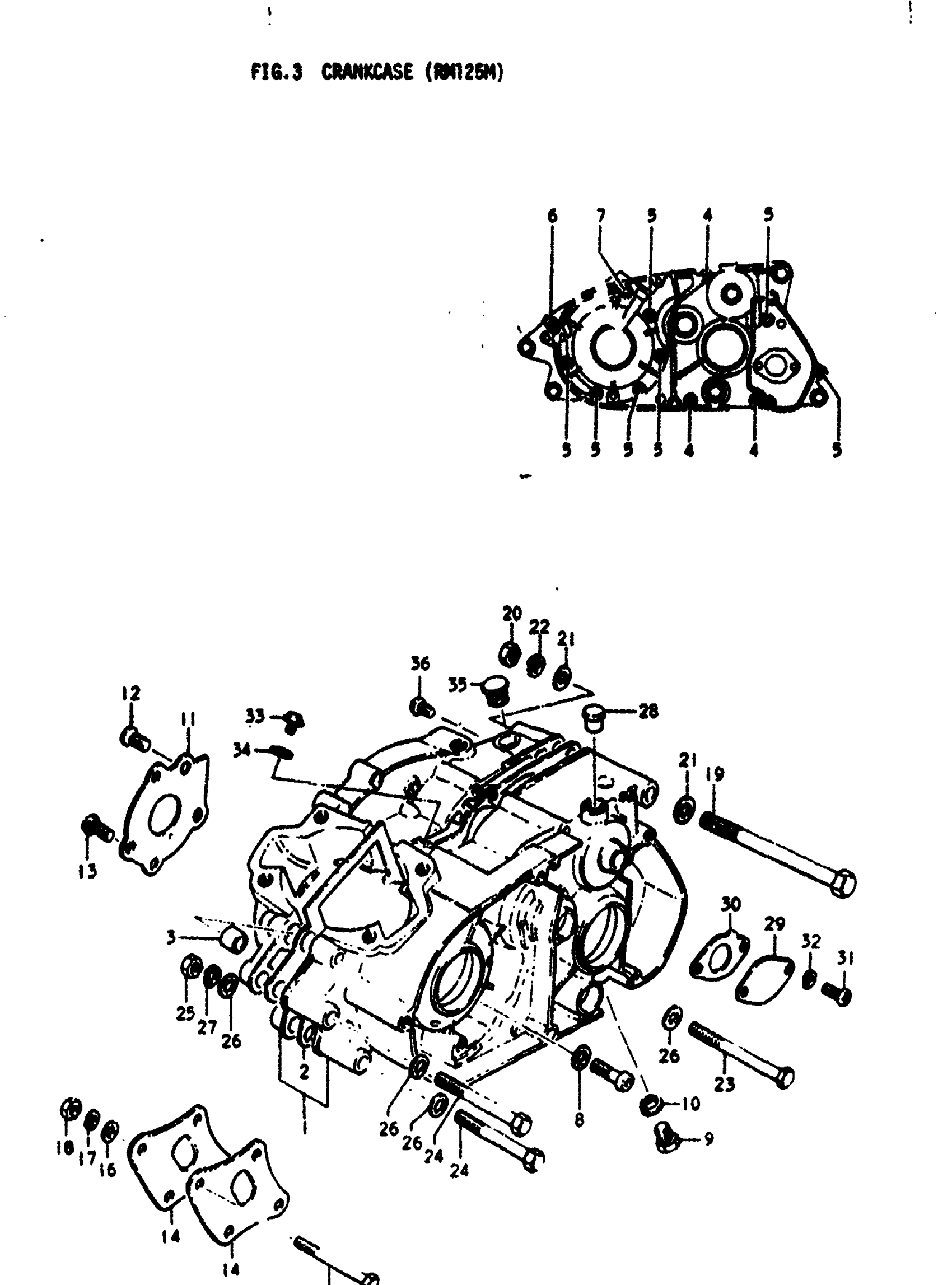

Suzuki RM125 (1978) CRANKCASE (RM125M) Diagram

#

Description
Price

1

CRANKCASE SET | INCLUDES DRIVESHATT BUSH (09303-15004 1PC.); Includes Item(s) 2 - 10

11300-28872

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-28000.

11481-28001

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW

02112-06657

$2.62

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW This part replaces 02112-06808.

02112-06807

$2.57

7

SCREW This part replaces 02112-06608.

02112-06607

$2.57

8

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

9

PLUG, OIL DRAIN

09247-10001

$2.20

10

GASKET

09168-10002

$2.13

11

PLATE, OIL RESERVER

12521-28002

Unavailable

12

SCREW This part replaces 02122-06128.

02122-06127

$1.84

13

SCREW This part replaces 02112-06168.

02112-06167

$1.49

14

PLATE, ENGINE MOUNTING

41591-28000

Unavailable

15

BOLT This part replaces 01112-08708.

01500-0870B

$3.49

16

WASHER This part replaces 08322-11088.

08322-01087

$2.13

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

NUT This part replaces 08312-11088.

08310-00087

$2.13

19

BOLT 10X125 | 10x125 This part replaces 09100-10051.

09100-10274

$7.15

20

NUT This part replaces 08312-12108.

08310-00107

$2.19

21

WASHER This part replaces 08322-11108.

08322-01107

$2.15

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

BOLT This part replaces 01122-08808.

01500-0880B

$3.49

24

BOLT This part replaces 01122-08708.

01500-0870B

$3.49

25

NUT This part replaces 08312-11088.

08310-00087

$2.13

26

WASHER This part replaces 08322-11088.

08322-01087

$2.13

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

PLUG, GEAR SHIFTING SWITCH HOL

09250-10001

$1.86

29

CAP

16745-16701

Unavailable

30

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

31

SCREW This part replaces 02111-05127.

02112-05127

$1.97

32

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

33

BOLT This part replaces 01511-06108.

01550-06107

$2.80

34

GASKET | 6.5x13x1

09168-06004

$1.49

35

PLUG(OD:19) This part replaces 09250-14002.

09250-14010

$2.25

36

SCREW This part replaces 02112-06068.

02112-06067

$1.93
