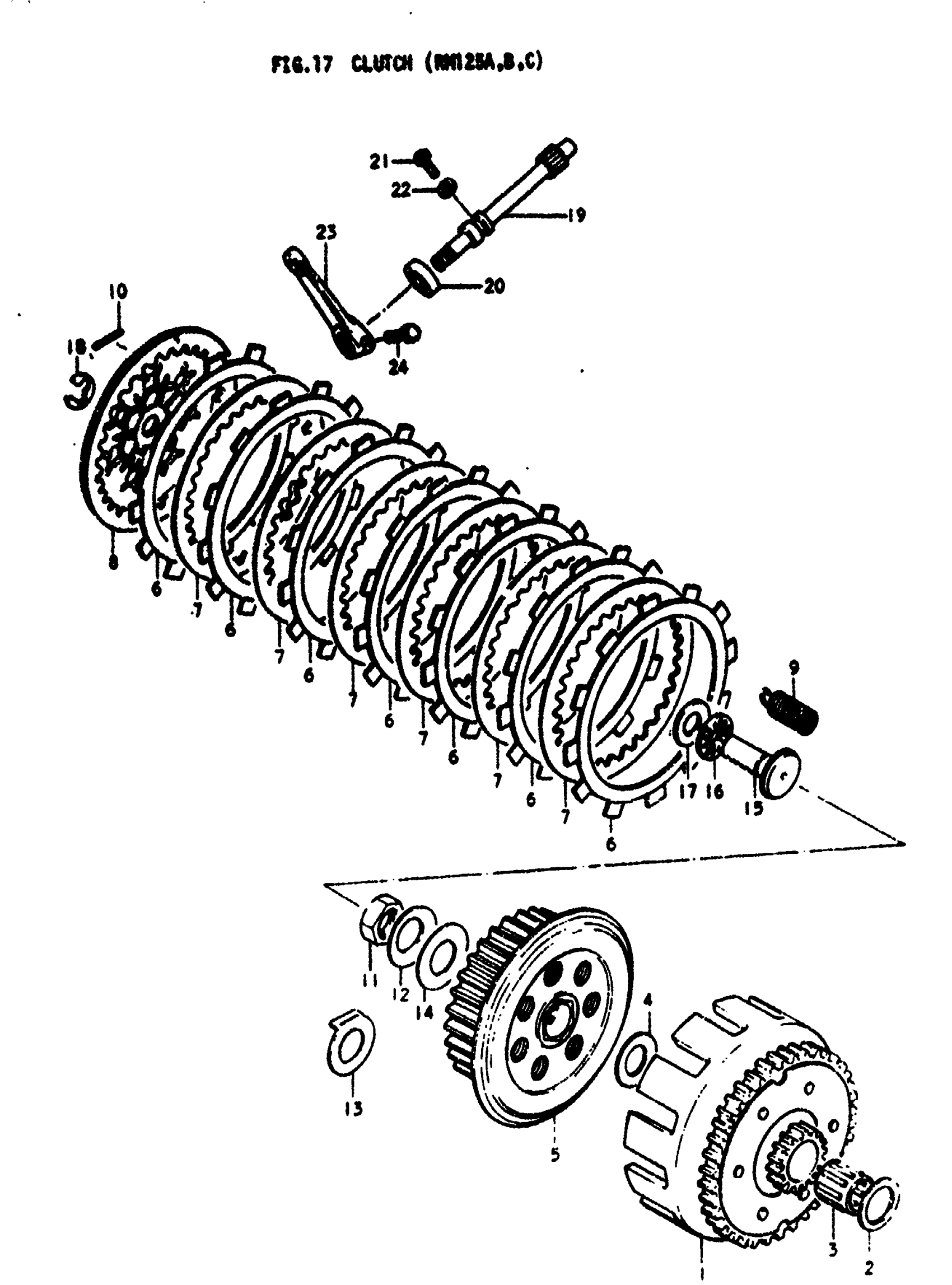

Suzuki RM125 (1978) CLUTCH (RM125A Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | A; NT:63/17

21200-41300

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | B,C; NT:62/17

21200-41301

Unavailable

2

THRUST WASHER | A,B,C

08211-20323

$3.03

3

BEARING | A,B,C

09263-20023

$19.98

4

THRUST WASHER | A,B,C; 17x34x1.5

08211-17342

$2.72

5

HUB, SLEEVE | A; TO 21410-41301 USED WITH 09169-14002 This part replaces 21410-41300.

21410-41301

Unavailable

5

HUB, SLEEVE | A,B,C; F.NO.41684~

21410-41301

Unavailable

6

PLATE, CLUTCH DRIVE | A,B,C This part replaces 21441-28300.

21441-13A01

$14.73

7

PLATE, CLUTCH DRIVEN (T:1.6) | A,B,C This part replaces 21451-28000.

21451-19A00

$7.58

7

PLATE, CLUTCH DRIVEN (T:1.6) | A,B,C; OPT ALUMINIUM This part replaces 21451-41700.

21451-19A00

$7.58

8

PLATE, PRESSURE | A,B,C

21460-28000

$25.25

9

SPRING | A,B,C

09443-12018

$2.92

10

PIN | A,B,C

09261-02001

$1.56

11

NUT | A,B,C

09140-14002

$3.40

12

LOCK WASHER | A

09164-14005

Unavailable

13

LOCK WASHER | A,B,C; F.NO.41684~

09169-14002

Unavailable

14

WASHER | A

08212-14301

Unavailable

15

RACK | A,B,C This part replaces 23165-28300.

23165-46000

$22.21

16

BEARING | A,B,C

09263-10002

$10.19

17

WASHER | A,B,C

08212-10241

$2.23

18

.E-RING | A,B,C This part replaces 08332-11088.

08332-1108A

$1.78

19

PINION, RELEASE | A; TO 23261-41301 This part replaces 23261-41300.

23261-41301

$43.68

19

PINION, RELEASE | B,C

23261-41301

$43.68

20

OIL SEAL | A,B,C

09284-10002

$2.90

21

BOLT | A,B,C

09135-06009

$2.23

22

WASHER | A,B,C This part replaces 08322-21068.

08322-01067

$2.13

23

ARM, RELEASE | A,B,C

23271-41300

Unavailable

24

BOLT, CANISTER | A,B,C This part replaces 01107-06168.

01500-06167

$1.97
