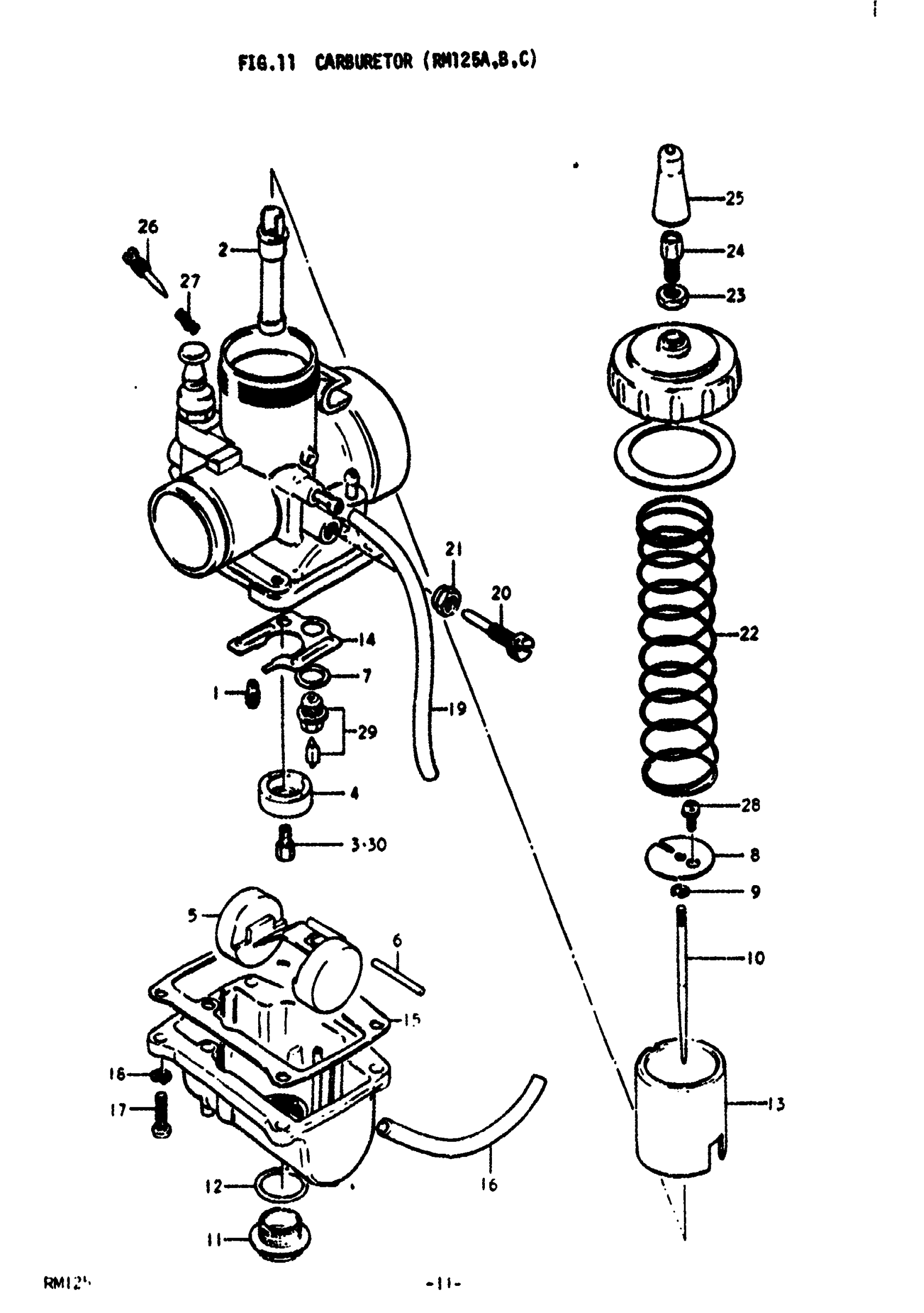

Suzuki RM125 (1978) CARBURETOR (RM125A Diagram

#

Description
Price

0

CARBURETOR ASSY | A This part replaces 13200-41312.

13200-41650

Unavailable

0

CARBURETOR ASSY | B

13200-41650

Unavailable

0

CARBURETOR ASSY | C; Includes Item(s) 1 - 29

13200-41320

Unavailable

1

JET, PILOT (30) | A,B; #30 This part replaces 09492-30003.

09492-30006

$9.55

1

JET, PILOT | C; #35

09492-35004

Unavailable

2

JET, NEEDLE | A,B; R-0

09494-00174

Unavailable

2

JET, NEEDLE | A; R-3

09494-00176

Unavailable

2

JET, NEEDLE | C; R-4

09494-00226

Unavailable

3

JET, MAIN (280) | A; #280 This part replaces 09491-56001.

09491-56003

Unavailable

3

JET, MAIN | B; #230

09491-46001

$11.57

3

JET. MAIN (240) | C; #240 This part replaces 09491-48001.

09491-48003

Unavailable

4

RING | A,B,C

13331-16510

Unavailable

5

FLOAT | A,B,C

13252-32010

Unavailable

6

.PIN, FLOAT | A,B,C

13254-01010

$3.62

7

GASKET, VALVE SEAT | A,B,C

13392-16600

$1.94

8

SEAT, THROTTLE SPRING | A,B

13581-40010

Unavailable

8

SEAT, THROTTLE SPRING | C

13581-16600

Unavailable

9

CLIP, NEEDLE | A,B,C

13394-10010

$5.45

10

NEEDLE,JET | A,B,C; 60P5-3 This part replaces 13383-97510.

13383-41510

Unavailable

11

PLUG, DRAIN | A,B,C

13247-32210

$15.23

12

O RING | A,B,C

13249-41310

$4.40

13

VALVE, THROTTLE | A; CA:2.5

13551-16611

Unavailable

13

VALVE, THROTTLE | B,C; CA:2.0

13551-41650

Unavailable

14

PLATE, FLOAT CHAMBER | A,B,C

13259-41310

Unavailable

15

GASKET, FLOAT CHAMBER | A,B,C

13251-30110

Unavailable

16

HOSE (3.5X6.5X600) | A,B This part replaces 13684-16600.

09351-35653-600

$4.64

17

SCREW | A,B,C This part replaces 02112-05168.

02112-05167

$1.97

18

LOCK WASHER | A,B,C This part replaces 08321-21058.

08321-0105A

$1.84

19

HOSE (3.5X6.5X600) | A,B,C This part replaces 13686-16600.

09351-35653-600

$4.64

20

SCREW, THROTTLE STOP | A,B,C This part replaces 13267-15110.

13267-40230

$9.85

21

NUT | A,B,C

13661-16600

$4.64

22

SPRING | A,B,C This part replaces 13573-16600.

13573-16601

Unavailable

23

NUT | A,B,C

13661-16600

$4.64

24

ADJUSTER, CABLE | A; L:25 TO 13577-41612 This part replaces 13577-41611.

13577-41612

$7.01

24

ADJUSTER, CABLE | B; L:28

13577-41612

$7.01

24

ADJUSTER | C This part replaces 13577-03010.

13577-48110

$8.30

25

CAP | A,B

13681-33010

$9.32

25

CAP | C

13681-16601

$8.26

26

SCREW, PILOT AIR | A,B,C

13269-15010

Unavailable

27

SPRING | A,B,C

13268-01010

$5.28

28

SCREW | A,B,C This part replaces 02111-04067.

02112-0406B

$1.55

29

VALVE ASSY, NEEDLE | A,B,C

13370-16600

Unavailable

30

JET, MAIN (210) | A,B,C; #210; OPT This part replaces 09491-42001.

09491-42005

Unavailable

30

JET, MAIN | A,B,C; #220; OPT This part replaces 09491-44001.

09491-44007

Unavailable

30

JET. MAIN (240) | A,B; #240; OPT This part replaces 09491-48001.

09491-48003

Unavailable

30

JET, MAIN (250) | A,B,C; #250; OPT This part replaces 09491-50003.

09491-50008

Unavailable

30

JET, MAIN | A,B,C; #260; OPT This part replaces 09491-52001.

09491-52006

$10.38

30

JET, MAIN (270) | A,B,C; #270; OPT This part replaces 09491-54001.

09491-54002

Unavailable

30

JET, MAIN (290) | A,B,C; #290; OPT This part replaces 09491-58001.

09491-58002

Unavailable

30

JET, MAIN (300) | A,B,C; #300; OPT This part replaces 09491-60003.

09491-60007

$13.05

30

JET, MAIN (310) | A,B,C; #310; OPT This part replaces 09491-62001.

09491-62005

$11.83
