- RM100 (2003)
TRANSMISSION

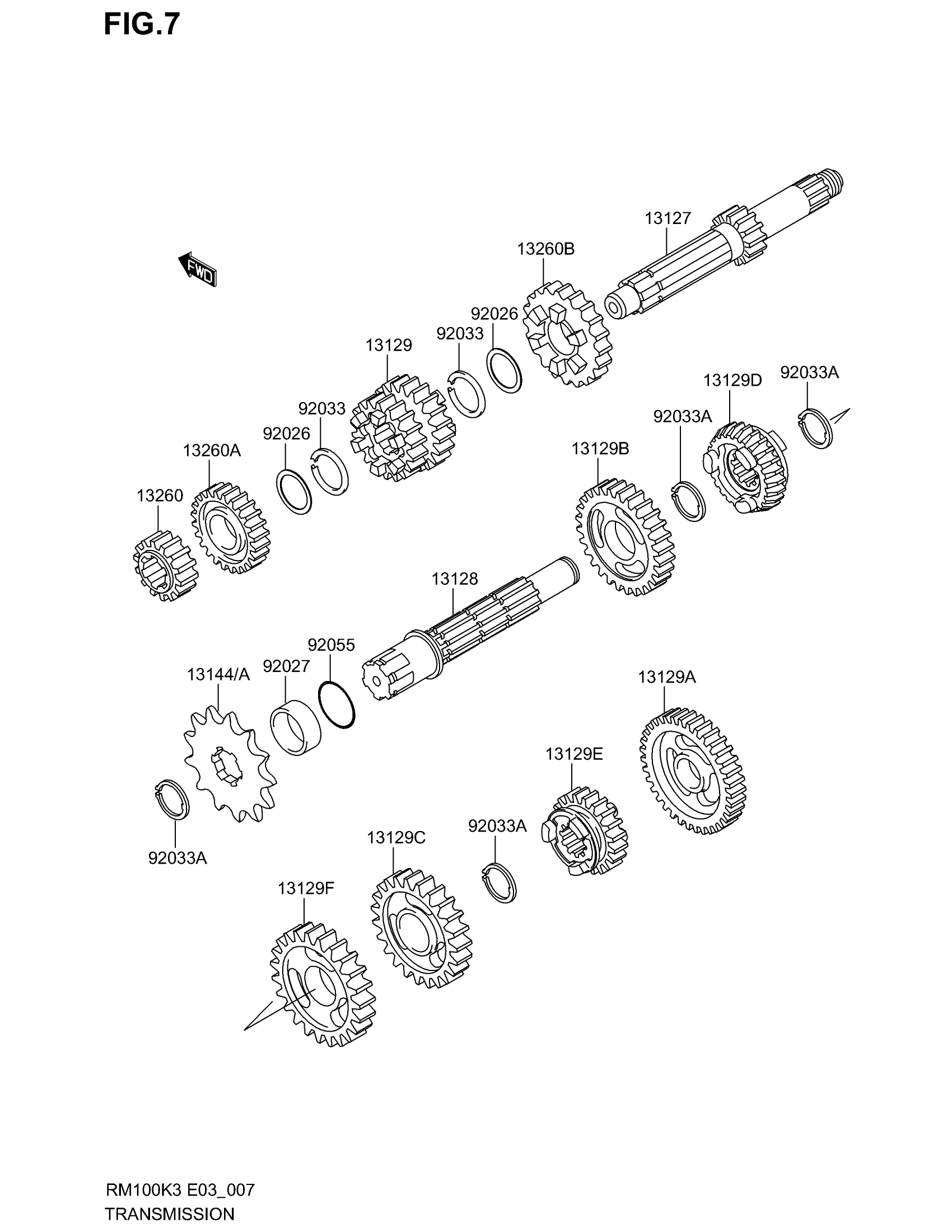

Suzuki RM100 (2003) TRANSMISSION Diagram
#
Description
Price
13127
SHAFT-TRANSMISSION INPUT,13T
K1312-71261
Unavailable
13128
NO DESCRIPTION AVAILABLE This part replaces K1312-81126.
K1312-80022
Unavailable
13129
GEAR,INPUT 3RD&4TH,18T&20T
K1312-91722
Unavailable
13129A
GEAR,OUTPUT LOW,33T
K1312-91725
Unavailable
13129B
GEAR,OUTPUT 2ND,30T
K1312-91726
Unavailable
13260
GEAR,OUTPUT 4TH,25T
K1326-01024
Unavailable
13129C
GEAR,OUTPUT 5TH,24T
K1312-91729
Unavailable
13129D
GEAR,OUTPUT 6TH,22T
K1312-91730
Unavailable
13260A
GEAR,OUTPUT 3RD,27T
K1326-01023
Unavailable
13144
SPROCKET-OUTPUT,14T | OPTION
K1314-41022
Unavailable
13144A
SPROCKET,OUTPUT This part replaces K1314-41023.
K1314-40564
Unavailable
13260B
GEAR,INPUT 2ND,16T
K1326-01014
Unavailable
13260C
GEAR-TRANSMISSION SPUR,5TH,22T
K1326-01950
Unavailable
13260D
GEAR-TRANSMISSION SPUR,6TH,23T
K1326-01951
Unavailable
92026
SPACER,18X23X0.50
K9202-61602
Unavailable
92033
RING-SNAP
KK920-33028
Unavailable
92033A
RING-SNAP,18MM
K9203-31079
Unavailable
92055
RING-O,17.5X1.5
KK920-55022
Unavailable
