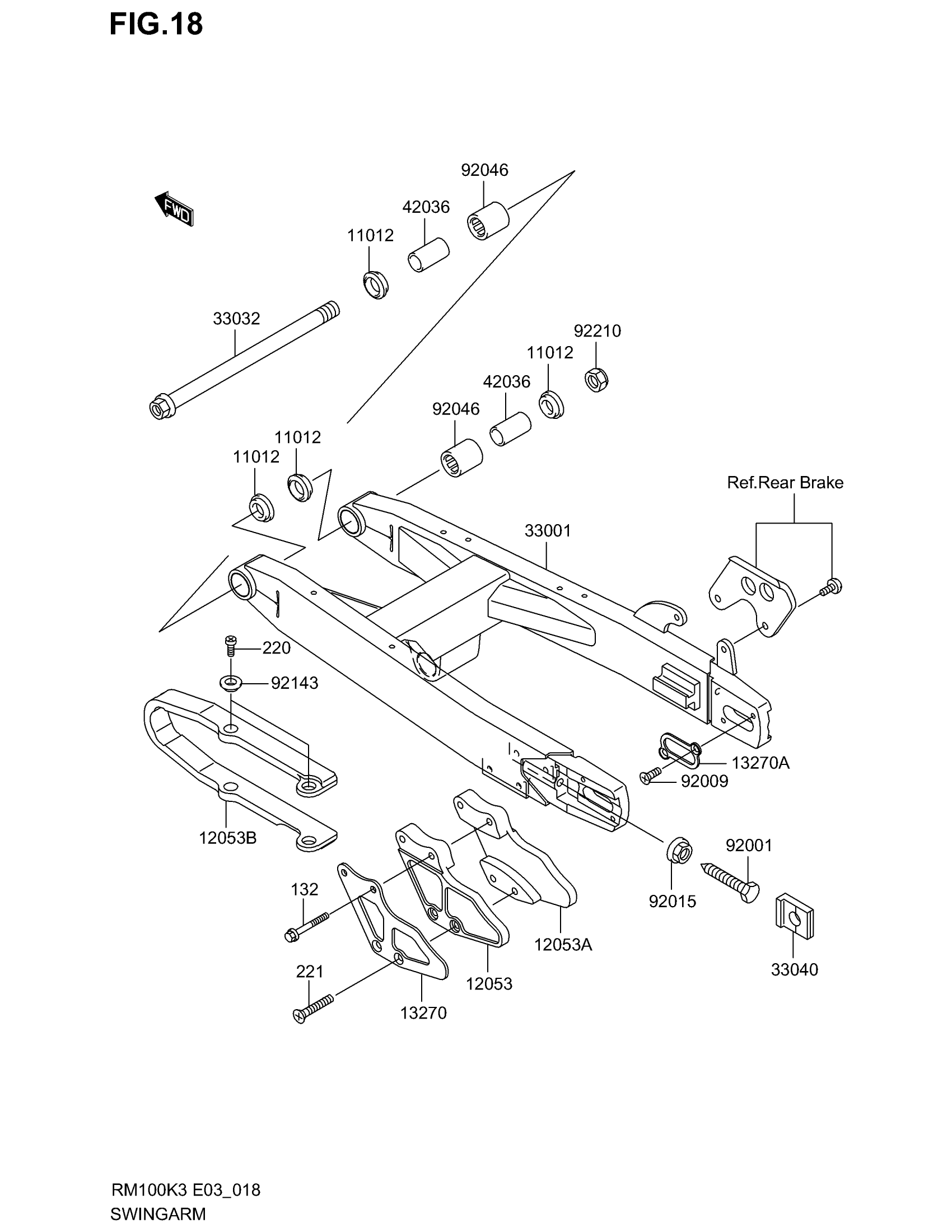

Suzuki RM100 (2003) SWINGARM Diagram

#

Description

Price

11012

CAP

K1101-21263

Unavailable

12053

GUIDE-CHAIN,RR,LH

K1205-31203

Unavailable

12053A

GUIDE-CHAIN,RR,RH

K1205-31204

Unavailable

12053B

GUIDE-CHAIN,FR

K1205-31414

Unavailable

13270

PLATE,GUIDE CHAIN

K1327-01829

Unavailable

13270A

PLATE

K1327-01899

Unavailable

33001

ARM-COMP-SWING,SILVER

KK330-01154-3CE

Unavailable

33032

SHAFT-SWING ARM

K3303-21161

Unavailable

33040

ADJUSTER-CHAIN This part replaces K3304-01173.

K3304-00039

Unavailable

42036

SLEEVE,SWING ARM,L=34

K4203-61067

Unavailable

92001

BOLT,8X46

K9200-11179

Unavailable

92009

SCREW,5X10

K9200-91828

Unavailable

92015

NUT,FLANGED,8MM

K9201-51014

$3.08

92046

BEARING-NEEDLE

K9204-61046

Unavailable

92143

COLLAR

K9214-31676

$4.73

92210

NUT,LOCK,12MM

K9221-01249

Unavailable

132

BOLT,FLANGED,SM This part replaces KK132-V0650.

K132B-A0650

$2.05

220

SCREW-PAN-CROS, This part replaces KK220-B0508.

K220A-A0508

$1.49

221

SCREW-CSK-CROS,6X45

KK221-B0645

Unavailable
