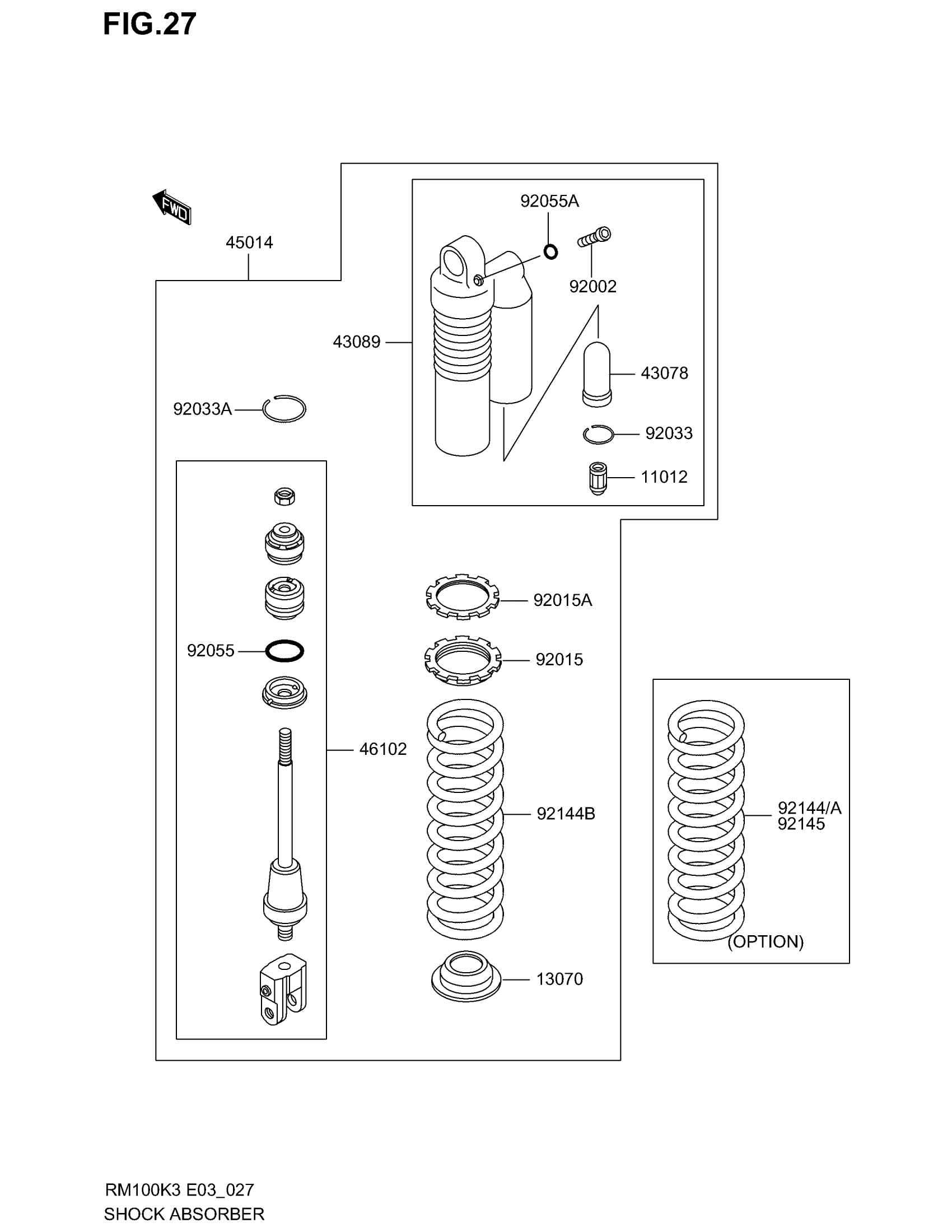

Suzuki RM100 (2003) SHOCK ABSORBER Diagram

#

Description
Price

11012

CAP,VALVE AIR

K1101-21391

Unavailable

13070

GUIDE,SPRING

K1307-01233

Unavailable

43078

RESERVOIR,SHOCKABSORBER

K4307-81112

Unavailable

43089

CYLINDER-SHOCKABSORBER

K4308-91162

Unavailable

45014

SHOCKABSORBER,S.RED

KK450-14181-7VM

Unavailable

46102

ROD,SHOCKABSORBER

K4610-21411

Unavailable

92002

BOLT,DRAIN

K9200-21955

Unavailable

92015

NUT,SPRING ADJUST

K9201-51679

Unavailable

92015A

NUT,SPRING ADJUST LOCK

K9201-51713

Unavailable

92033

RING-SNAP,REARSHOCK

K9203-31091

Unavailable

92033A

RING-SNAP,SHOCKABSORBER

K9203-31211

Unavailable

92055

RING-O,ROD

K9205-51334

Unavailable

670

O RING,4MM

KK670-B1504

Unavailable

92144

SPRING,SHOCKABSORBER,K=4.6,RED | OPTION

KK921-44157-0VM

Unavailable

92144A

SPRING,SHOCKABSORBER,K=5.0,RED | OPTION

KK921-44157-1VM

Unavailable

92144B

SPRING,SHOCKABSORBER,K=4.8,RED

KK921-44194-5VM

Unavailable

92145

SPRING,SHOCKABSORBER,K=4.4,RED | OPTION

KK921-45137-1VM

Unavailable
