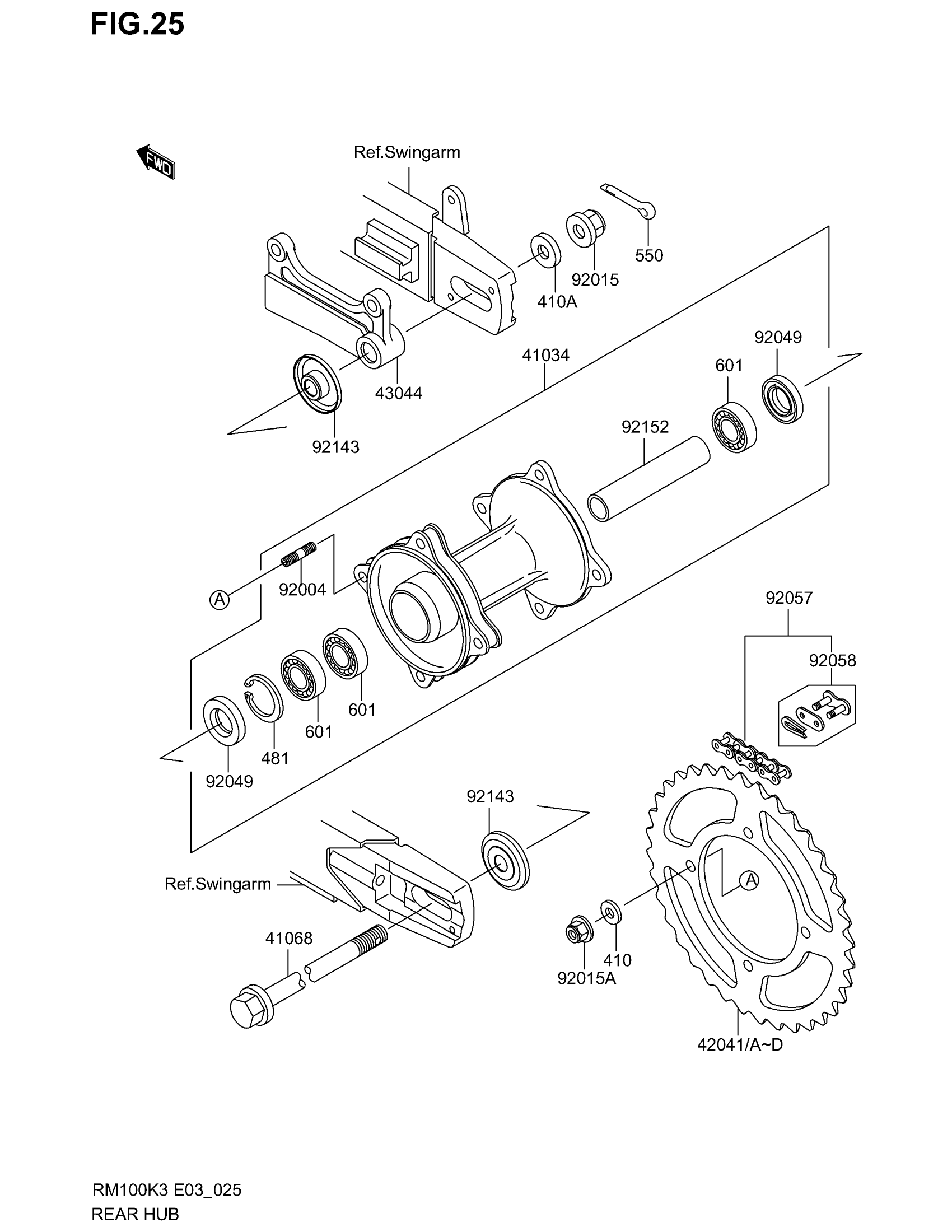

Suzuki RM100 (2003) REAR HUB Diagram

#

Description
Price

41034

DRUM-ASSY,REAR BRAKE

K4103-41323

Unavailable

41068

AXLE,RR

K4106-81401

Unavailable

42041

SPROCKET-HUB,49T | OPTION

K4204-11207

Unavailable

42041A

SPROCKET-HUB,50T | OPTION

K4204-11228

Unavailable

42041B

SPROCKET-HUB,51T

K4204-11229

Unavailable

42041C

SPROCKET-HUB,52T | OPTION

K4204-11245

Unavailable

42041D

SPROCKET-HUB,53T | OPTION

K4204-11246

Unavailable

43044

HOLDER-COMP-CALIPER

K4304-41122

Unavailable

92004

STUD,8X16

K9200-41183

Unavailable

92015

NUT,FLANGED,14MM

K9201-51401

$9.72

92015A

NUT,8MM

K9201-51432

$5.00

92049

SEAL-OIL

K9204-91469

Unavailable

92057

CHAIN,DRIVE,DID420DS2X124L

K9205-71497

Unavailable

92058

JOINT-CHAIN,DRIVE

K9205-81086

Unavailable

92143

COLLAR,RR AXLE,L=12.5

K9214-31938

Unavailable

92152

COLLAR,RR BRAKE DRUM,L=95

K9215-21090

Unavailable

410

WASHER,PLAIN,SM This part replaces KK410-B0800.

K410A-A0800

$1.49

410A

WASHER-PLAIN-SMALL,14MM

KK410-B1400

Unavailable

481

CIRCLIP-TYPE-C,35MM

KK481-J3500

Unavailable

550

PIN-COTTER,2.5X20

KK550-D2520

Unavailable

601

BEARING-BALL

KKK60-1B620-2UU

Unavailable
