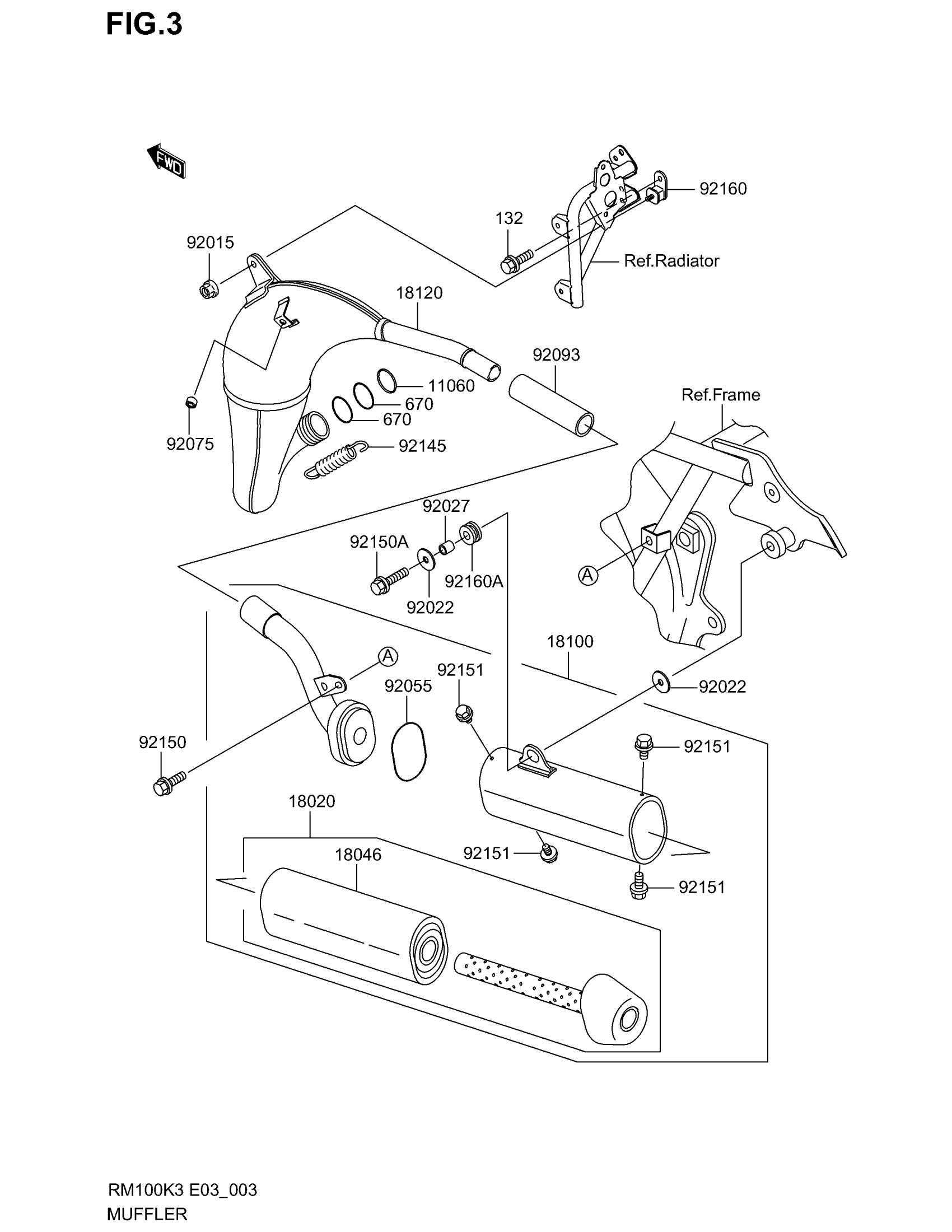

Suzuki RM100 (2003) MUFFLER Diagram

#

Description

Price

11060

GASKET,EXHAUST HOLDER

K1106-01842

Unavailable

18020

BAFFLE

K1802-01272

Unavailable

18046

WOOL

K1804-61559

Unavailable

18100

BODY-ASSY-MUFFLER

K1810-01084

Unavailable

18120

CHAMBER-EXHAUST

K1812-01127

Unavailable

92015

NUT,FLANGED, 6M This part replaces K9201-51078.

K9221-00630

$2.12

92022

WASHER,6.5X22X1.6

KK920-22237

Unavailable

92027

COLLAR,6.8X10X10.5

KK920-27120

Unavailable

92055

RING-O,BAFFLE PIPE

K9205-51461

Unavailable

92075

DAMPER

K9207-51598

Unavailable

92093

SEAL,MUFFLER JOINT

K9209-31200

Unavailable

92145

SPRING,EXHAUST This part replaces K9214-51340.

K9214-52327

$9.85

92150

BOLT,FLANGED,6X14

K9215-01504

Unavailable

92150A

BOLT,FLANGED,6X25

K9215-01507

Unavailable

92151

BOLT,6X10

K9215-11822

Unavailable

92160

DAMPER,MUFFLER,FR

K9216-01176

$22.48

92160A

DAMPER,MUFFLER FITTING

K9216-01913

Unavailable

92150B

BOLT-FLANGED-SM This part replaces K9215-01599.

K132B-A0612

$1.49

670

O RING

KK670-E3034

Unavailable
