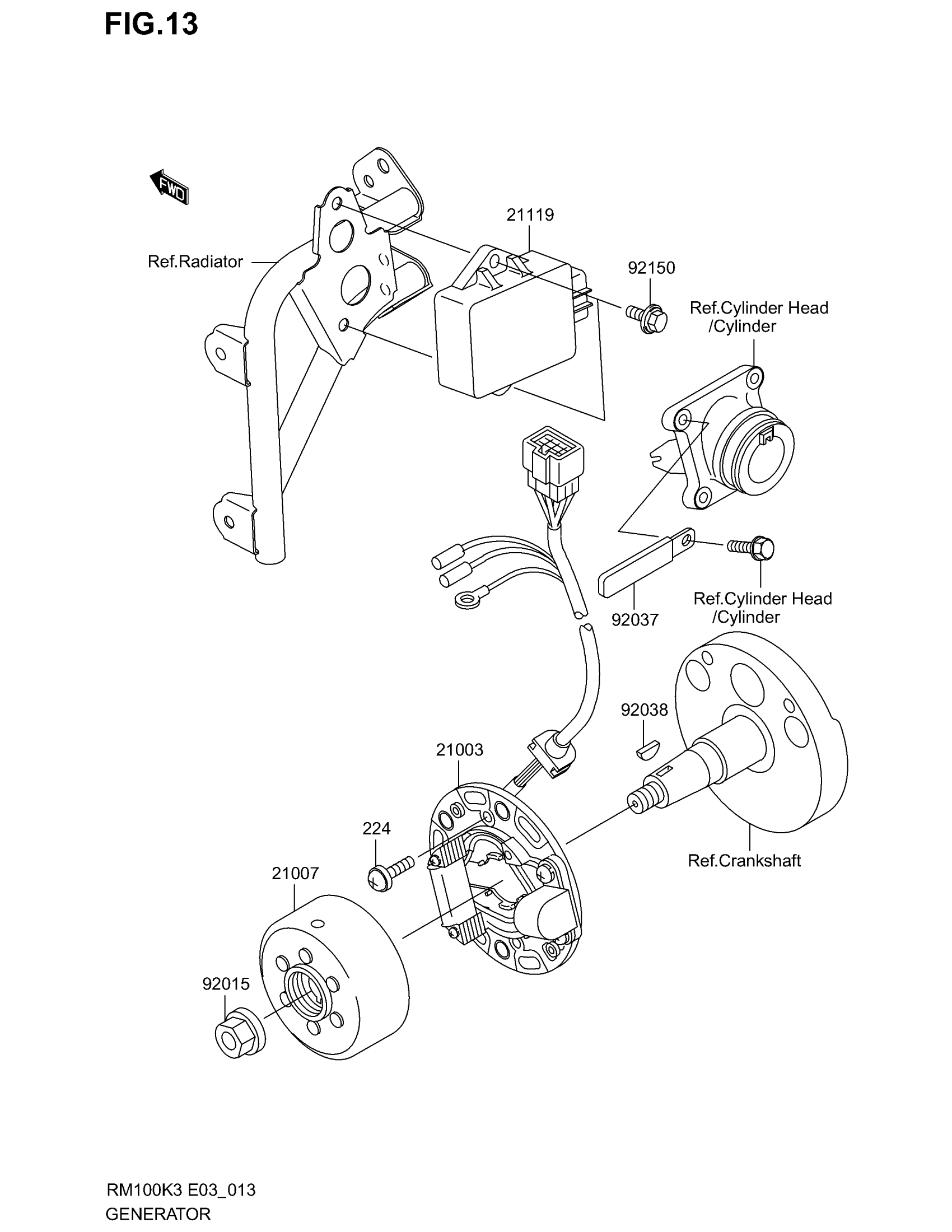

Suzuki RM100 (2003) GENERATOR Diagram

#

Description

Price

21003

STATOR

K2100-31366

Unavailable

21007

ROTOR,MAGNETO

K2100-71239

Unavailable

21119

IGNITER

K2111-91589

Unavailable

92015

NUT,FLANGED,10MM

KK920-15077

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

K9203-71069

Unavailable

92038

KEY,WOODRUFF

KK920-38001

Unavailable

92150

BOLT,FLANGED,6X16

K9215-01506

$3.29

92009

SCREW,6X14

K9200-91333

Unavailable
