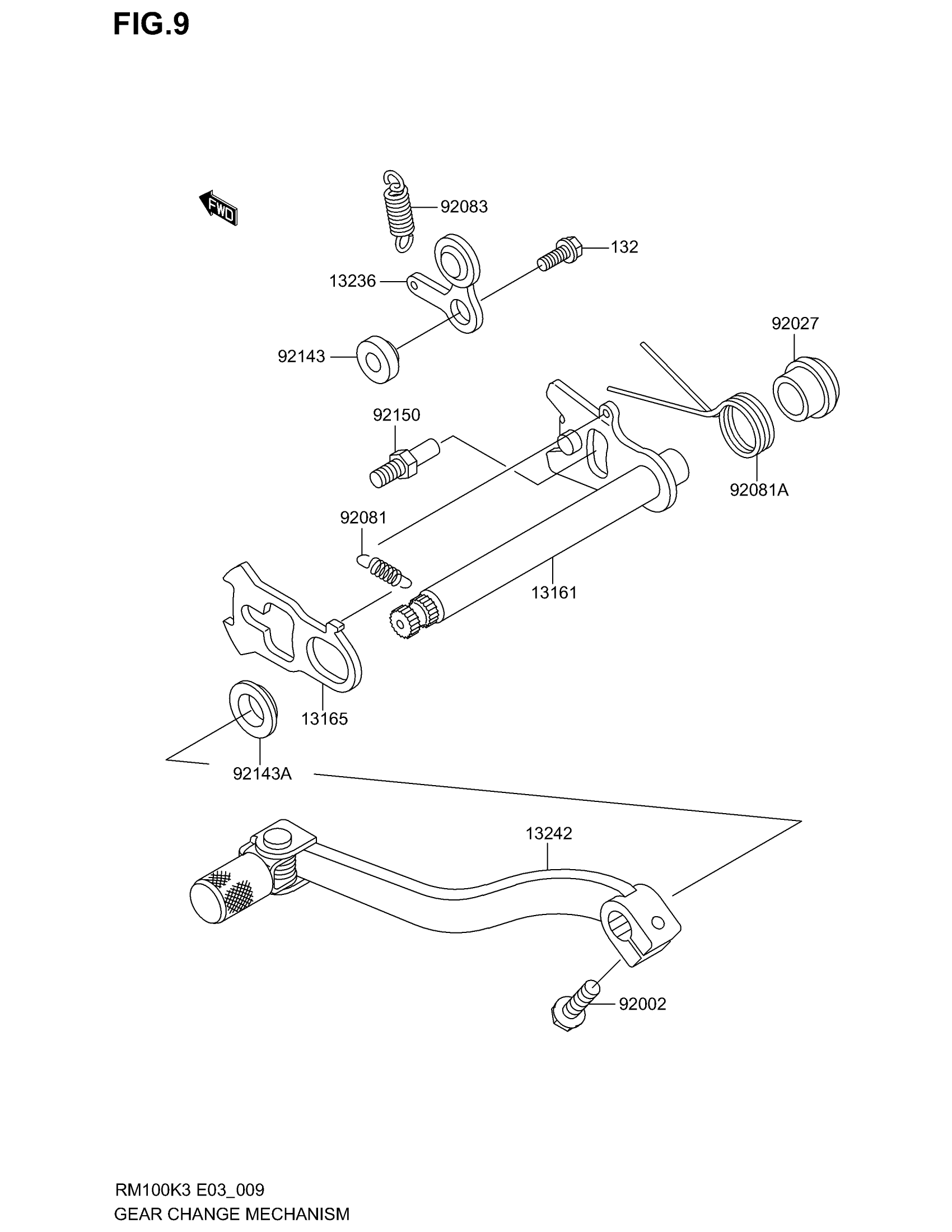

Suzuki RM100 (2003) GEAR CHANGE MECHANISM Diagram

#

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

K1316-11126

Unavailable

13165

PAWL,CHANGE LEVER

K1316-51114

Unavailable

13236

LEVER-COMP,POSITION

K1323-61152

Unavailable

13242

LEVER-ASSY-CHANGE,PEDAL

K1324-21286

Unavailable

92002

BOLT,6X20

K9200-21237

Unavailable

92027

COLLAR

K9202-71940

Unavailable

92081

SPRING,CHANGE LEVER

KK920-81076

Unavailable

92081A

SPRING,CHANGE SHAFT RETURN

K9208-11716

Unavailable

92083

SPRING,CHANGE DRUM LEVER

KK920-83012

Unavailable

92143

COLLAR

K9214-31055

Unavailable

92143A

COLLAR

K9214-31995

Unavailable

92150

BOLT,RETURN SPRING

K9215-01467

Unavailable

132

BOLT FLANGED, S This part replaces KK132-G0616.

K132B-A0616

Unavailable
