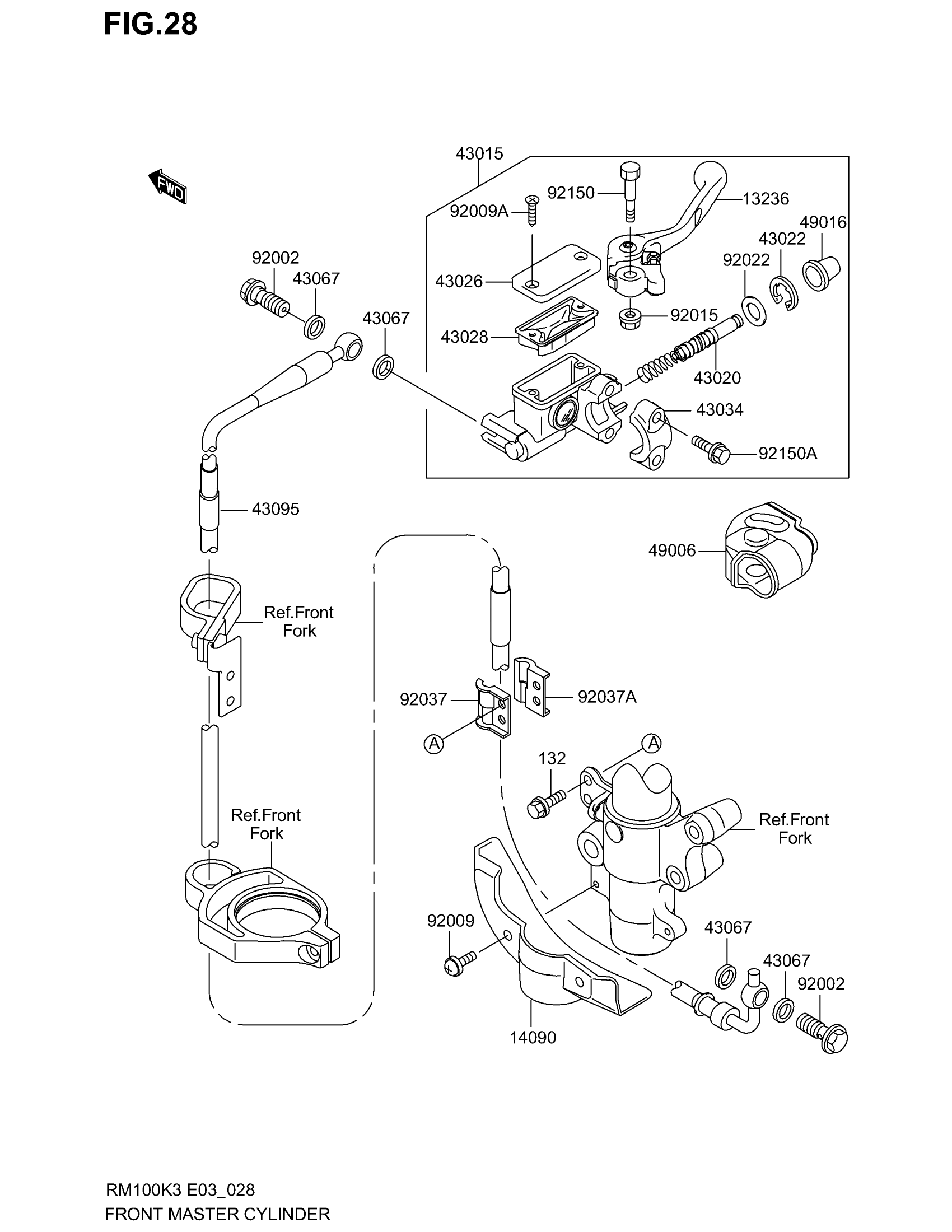

Suzuki RM100 (2003) FRONT MASTER CYLINDER Diagram

LEVER-COMP,FRONT BRAKE

K1323-61346

$38.73

COVER,BRAKE HOSE,WHITE

KK140-90186-0RZ

Unavailable

CYLINDER ASSY,M This part replaces K4301-51674.

K4301-50167

Unavailable

PISTON,BRAKE This part replaces K4302-01123.

K4302-00016

Unavailable

STOPPER-BRAKE,PISTON

K4302-21010

Unavailable

CAP-BRAKE

K4302-61075

$11.77

DIAPHRAGM

K4302-81067

$16.23

HOLDER-BRAKE

K4303-41110

Unavailable

WASHER,SEAL,10. This part replaces KK430-67001.

K4909-10001

$1.68

HOSE-BRAKE,FR

K4309-51091

Unavailable

BOOT,FRONT BRAK This part replaces K4900-61344.

K4900-60078

$12.28

COVER-SEAL,MASTER CYLINDER

K4901-61044

Unavailable

BOLT,OIL,L=23 This part replaces K9200-21888.

K9215-30627

$4.82

SCREW,6X14 This part replaces K9200-91287.

K9217-20401

Unavailable

SCREW,4MM

K9200-91458

$2.82

NUT,FLANGED,6MM

K9201-51528

Unavailable

WASHER

K9202-21814

Unavailable

CLAMP,BRAKE HOSE,OUTSIDE

K9203-71362

Unavailable

CLAMP,BRAKE HOSE,INSIDE

K9203-71363

Unavailable

BOLT,LEVER SET

K9215-01451

$11.55

BOLT

K9200-21894

$3.85

BOLT FLANGED, S This part replaces KK132-G0616.

K132B-A0616

Unavailable
