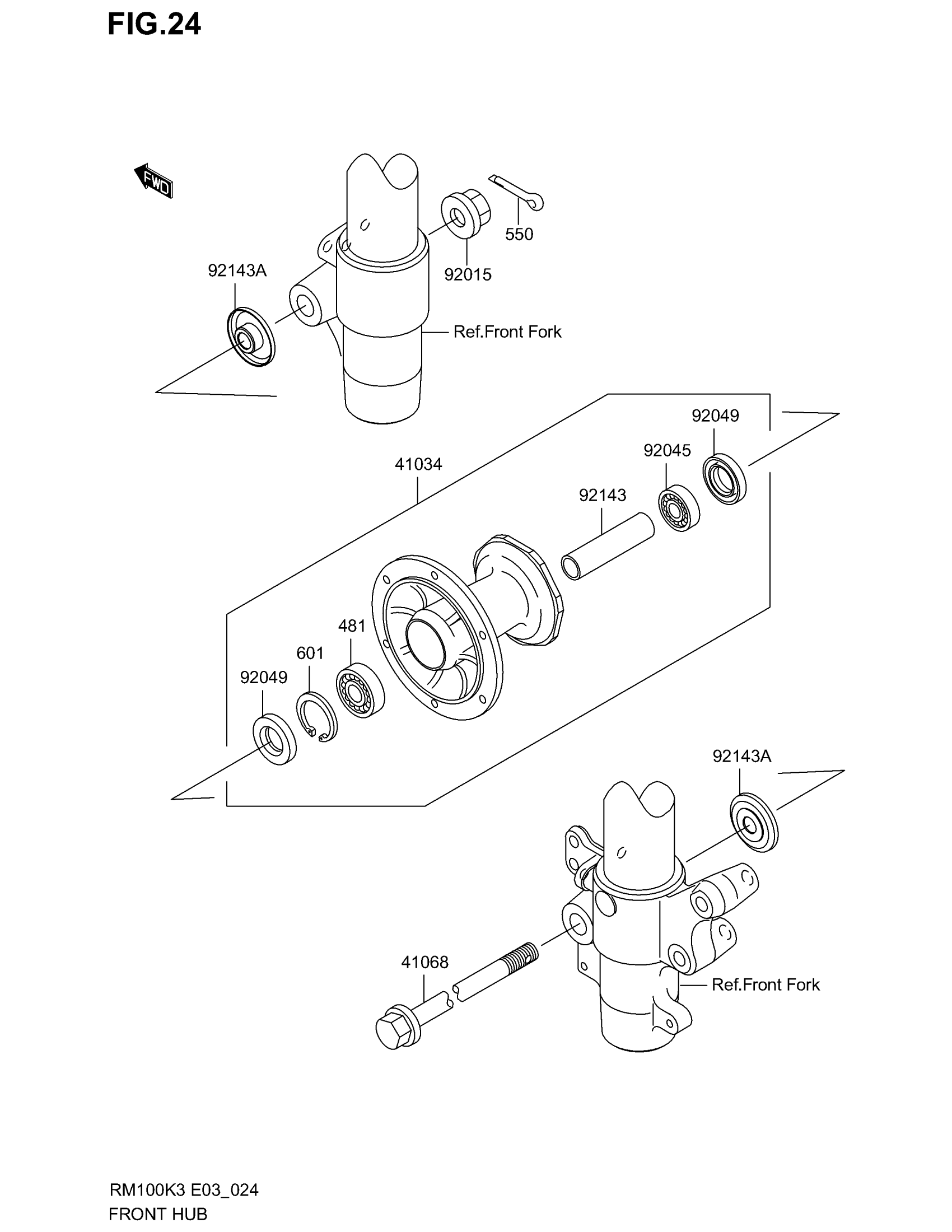

Suzuki RM100 (2003) FRONT HUB Diagram

#

Description

Price

41034

DRUM-ASSY,FRONT BRAKE

K4103-41310

Unavailable

41068

AXLE,FR

K4106-81333

Unavailable

92015

NUT,FLANGED,12MM

K9201-51433

Unavailable

92045

BEARING-BALL,TMB201LLUC3/2A

K9204-51062

Unavailable

92049

SEAL-OIL,TC20376.5

K9204-91257

Unavailable

92143

COLLAR,FR BRAKE DRUM,L=76

K9214-31935

Unavailable

92143A

COLLAR,FR AXLE,L=12

K9214-31936

Unavailable

481

CIRCLIP-TYPE-C,37MM

KK481-J3700

Unavailable

550

PIN-COTTER,2.5X20

KK550-D2520

Unavailable

601

BEARING-BALL,#6201UUC3

KKK60-1B630-1UU

Unavailable
