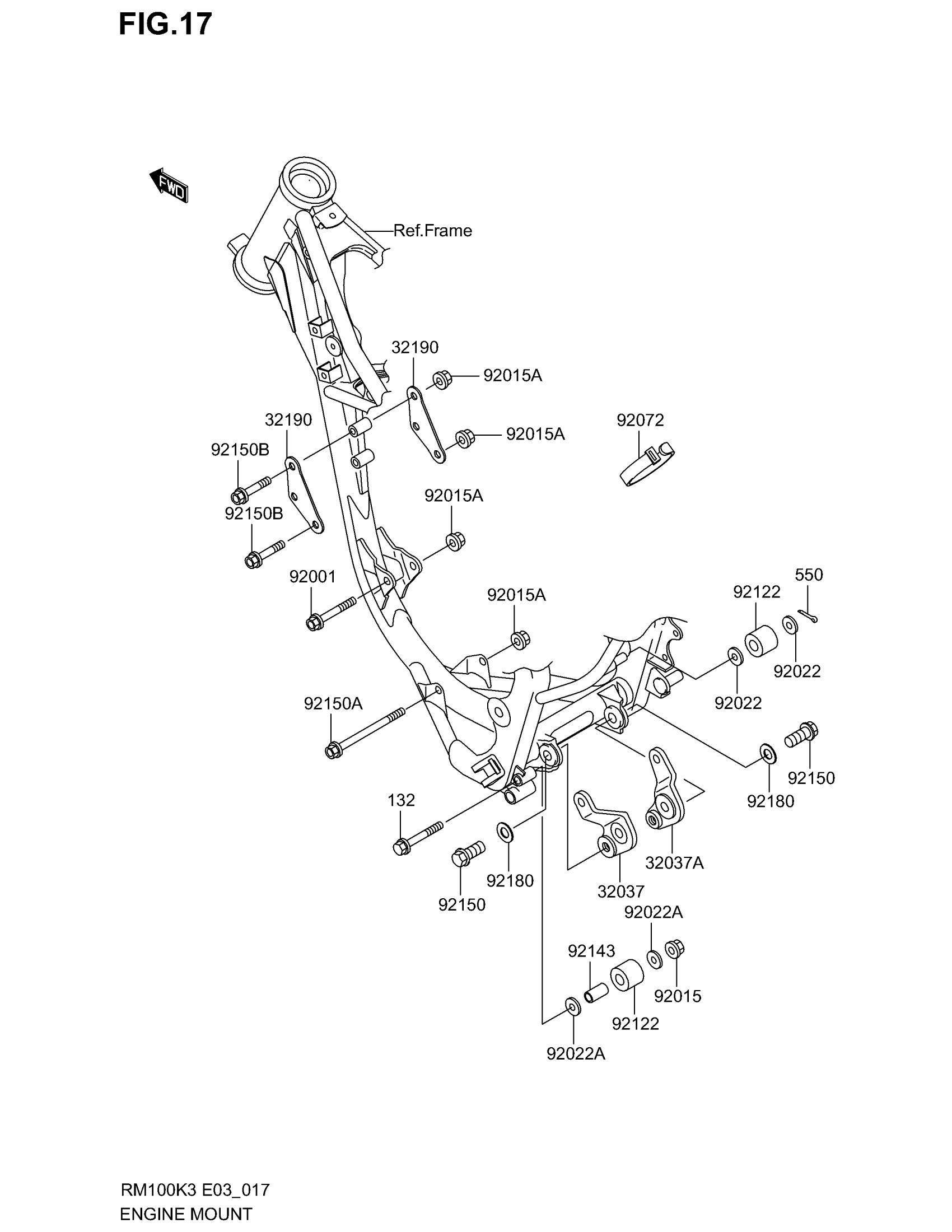

Suzuki RM100 (2003) ENGINE MOUNT Diagram

#

Description

Price

32037

BRACKET-SHOCKABSORBER

K3203-71552

Unavailable

32037A

BRACKET-SHOCKABSORBER

K3203-71553

Unavailable

32190

BRACKET-ENGINE,HEAD

K3219-01119

Unavailable

92002

BOLT,8X63

K9200-21215

Unavailable

92015

NUT,8MM

K9201-51143

Unavailable

92015A

NUT,8MM

K9201-51432

$5.00

92022

WASHER

KK920-22107

Unavailable

92022A

WASHER,8.5X20X1.6

K9202-21561

Unavailable

92072

BAND,L=140

K9207-21293

Unavailable

92122

ROLLER,CHAIN GUIDE

K9212-21213

Unavailable

92143

COLLAR,9.5X12.7X25

K9214-31432

Unavailable

92150

BOLT,FLANGED,12X27

K9215-01359

Unavailable

92150A

BOLT,FLANGED,8X105

K9215-01482

Unavailable

92150B

BOLT,FLANGED,8X45

K9215-01487

Unavailable

92180

SHIM,12.5X24X0.5

K9218-01060

Unavailable

132

BOLT-FLANGED-SMALL

KK132-G0860

Unavailable

550

PIN-COTTER,2.5X18

KK550-D2518

Unavailable
