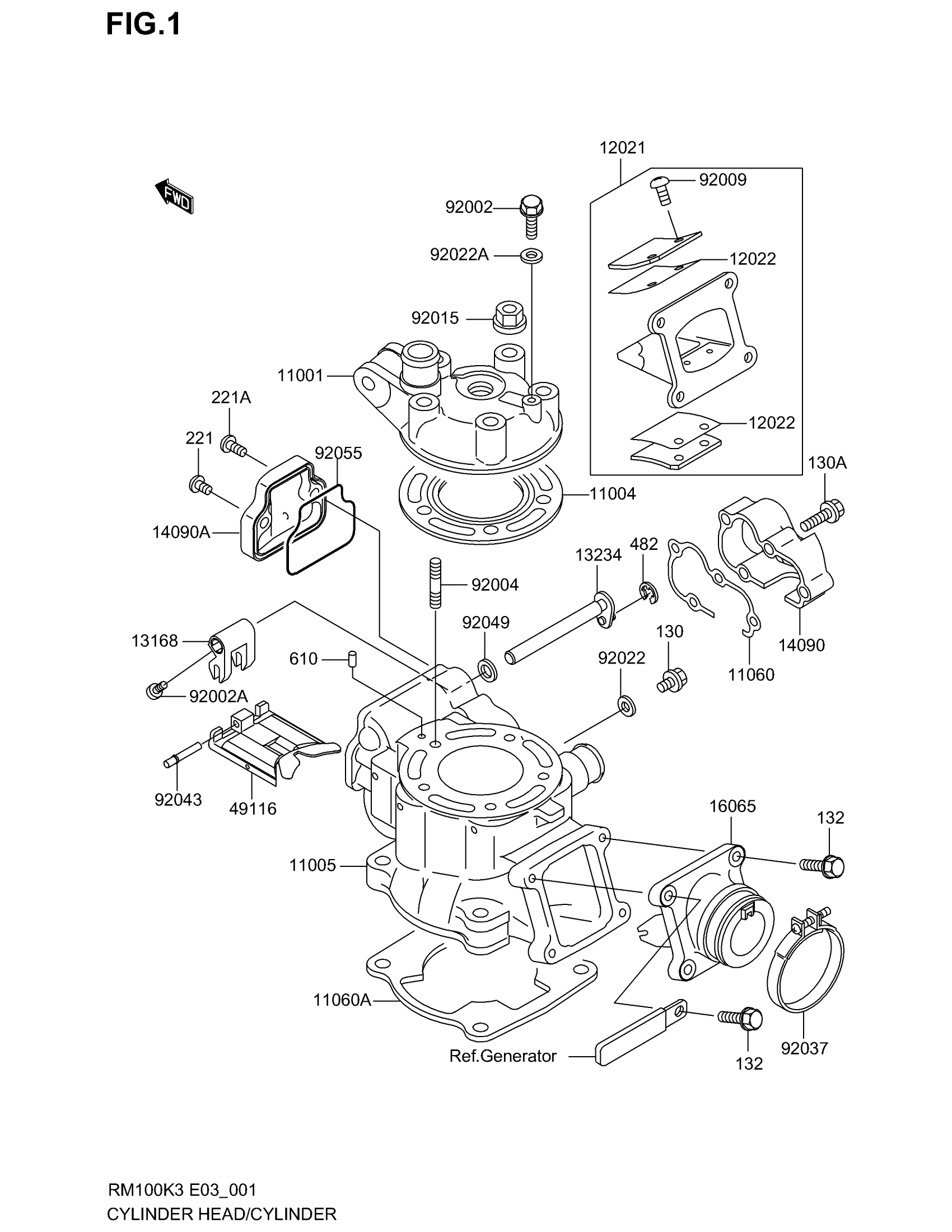

Suzuki RM100 (2003) CYLINDER HEAD/CYLINDER Diagram

#

Description
Price

11001

HEAD-CYLINDER

K1100-11463

Unavailable

11004

GASKET-HEAD

K1100-41214

Unavailable

11005

CYLINDER,ENGINE This part replaces K1100-51985.

K1100-50053

Unavailable

11060

GASKET,GOVERNOR COVER

K1106-01778

Unavailable

11060A

GASKET,CYLINDER BASE

K1106-01779

Unavailable

12021

VALVE-ASSY-REED

K1202-11123

Unavailable

12022

VALVE-REED

K1202-21084

Unavailable

13168

LEVER,MAIN VALVE

K1316-81499

Unavailable

13234

SHAFT-COMP

K1323-41105

Unavailable

14090

COVER

K1409-01811

Unavailable

14090A

COVER

K1409-01812

Unavailable

16065

HOLDER-CARBURETOR

K1606-51372

Unavailable

49116

VALVE-ASSY

K4911-61158

Unavailable

92002

BOLT,6X10

K9200-21222

Unavailable

92002A

BOLT,SOCKET,4X8

K9200-21403

Unavailable

92004

STUD,8X32

K9200-41253

Unavailable

92009

SCREW,REED VALVE

K9200-91014

Unavailable

92015

NUT,8MM

K9201-51143

Unavailable

92022

WASHER,6.1X12X1

KK920-22077

Unavailable

92022A

WASHER,6.2X11X1

KK920-22304

$2.76

92037

CLAMP

K9203-71843

Unavailable

92043

PIN,MAIN VALVE

K9204-31470

Unavailable

92049

SEAL-OIL,SD088144

K9204-91238

Unavailable

92055

RING-O

K9205-51566

Unavailable

130

BOLT-FLANGED

KK130-G0608

Unavailable

130A

NO DESCRIPTION AVAILABLE This part replaces KK130-G0525.

K130B-A0525

Unavailable

132

BOLT-FLANGED-SM This part replaces KK132-G0620.

K132B-A0620

Unavailable

221

NO DESCRIPTION AVAILABLE This part replaces KK221-B0616.

K221A-A0616

Unavailable

221A

SCREW-CSK-CROS, This part replaces KK221-B0620.

K221A-A0620

Unavailable

482

CIRCLIP-TYPE-E

KK482-J5000

Unavailable

610

ROLLER,4X8

KK610-A0408

$1.49
