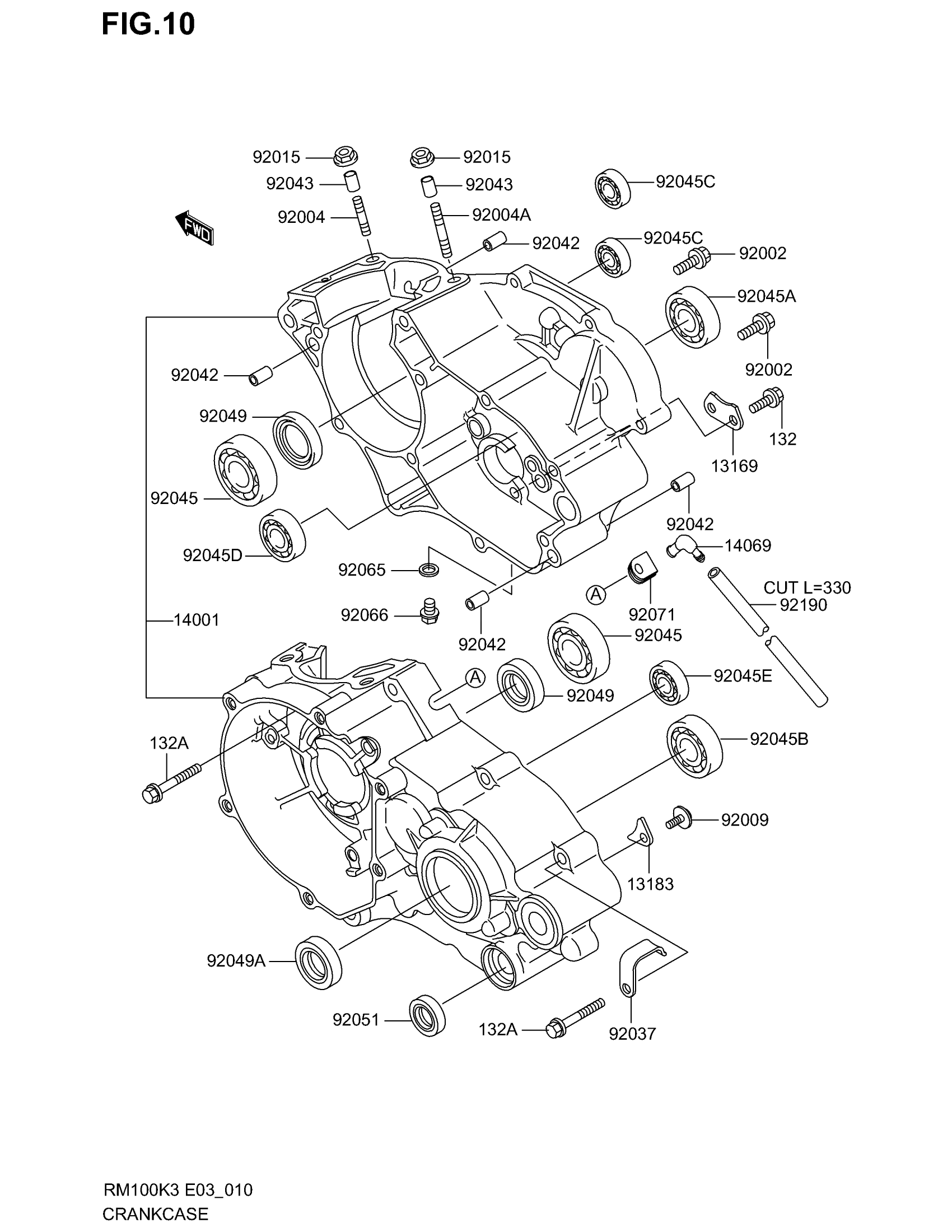

Suzuki RM100 (2003) CRANKCASE Diagram

#

Description
Price

13169

PLATE,CHANGE DRUM

KK131-69012

Unavailable

13183

PLATE

K1318-31182

Unavailable

14001

SET-CRANKCASE

K1400-11313

Unavailable

14069

BREATHER,CRANKC This part replaces K1406-91001.

K1406-91062

Unavailable

92002

BOLT,6X16

K9200-21659

Unavailable

92004

STUD,8X28.5

K9200-41252

Unavailable

92004A

STUD,8X37

K9200-41254

Unavailable

92009

SCREW,6X10

K9200-91563

Unavailable

92015

NUT,8MM

K9201-51143

Unavailable

92037

CLAMP,HARNESS

K9203-71318

Unavailable

92042

PIN,DOWEL,6.3X8X14

KK920-42007

$4.03

92043

PIN,8.2X10X14

K9204-31264

$2.10

92045

BEARING-BALL,R-6304C3

K9204-51059

$30.70

92045A

BEARING-BALL,6004TMB

K9204-51118

Unavailable

92045B

BEARING-BALL,6204

K9204-51226

Unavailable

92045C

BEARING-BALL,626MC3

K9204-51304

Unavailable

92045D

BEARING-BALL,TMB002

K9204-51360

Unavailable

92045E

BEARING-BALL,16101JRXC3

K9204-51450

Unavailable

92049

SEAL-OIL,SD20407GS

K9204-91188

$14.27

92049A

SEAL-OIL,TC25375

K9204-91292

Unavailable

92051

SEAL-OIL,TB13225.5

KK920-51005

Unavailable

92065

GASKET,10.5X16X1

KK920-65058

$3.00

92066

PLUG,DRAIN

K9206-61437

$5.00

92071

GROMMET,BREATHER

KK920-71042

Unavailable

92059

TUBE,6X9X380

K9205-91868

Unavailable

92150

BOLT-FLANGED-SM This part replaces K9215-01599.

K132B-A0612

$1.49

132

BOLT,FLANGED,SM This part replaces KK132-V0635.

K132B-A0635

Unavailable
