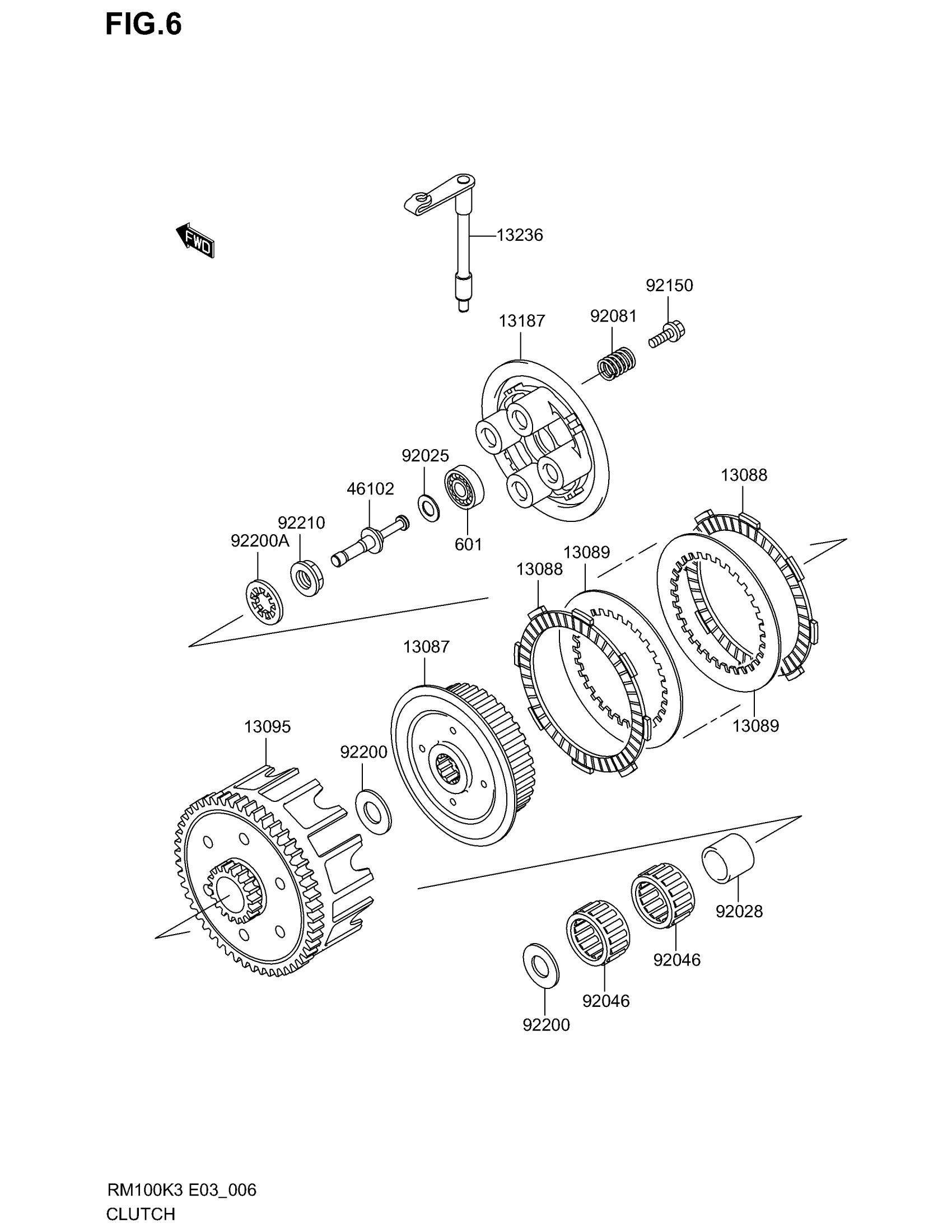

Suzuki RM100 (2003) CLUTCH Diagram

#

Description

Price

13087

HUB-CLUTCH

K1308-71170

Unavailable

13088

PLATE-FRICTION,ID=91

K1308-81016

Unavailable

13089

PLATE-CLUTCH

K1308-91120

Unavailable

13095

HOUSING-COMP-CLUTCH

K1309-51406

Unavailable

13187

PLATE-CLUTCH OPERATING

K1318-71013

Unavailable

13236

LEVER-COMP,RELEASE

K1323-61298

Unavailable

46102

ROD,CLUTCH RELEASE

K4610-21409

Unavailable

92025

SHIM

K9202-51780

Unavailable

92028

BUSHING,20X25X21.1

K9202-81811

Unavailable

92046

BEARING-NEEDLE,KT252910EG

K9204-61254

Unavailable

92081

SPRING,CLUTCH

K9208-11492

Unavailable

92150

BOLT

K9215-01715

Unavailable

92200

WASHER,20.3X33X2.0

K9220-01351

Unavailable

92200A

WASHER

K9220-01352

Unavailable

92210

NUT,16MM

K9221-01113

Unavailable

601

BEARING-BALL

KK601-A6001

Unavailable
