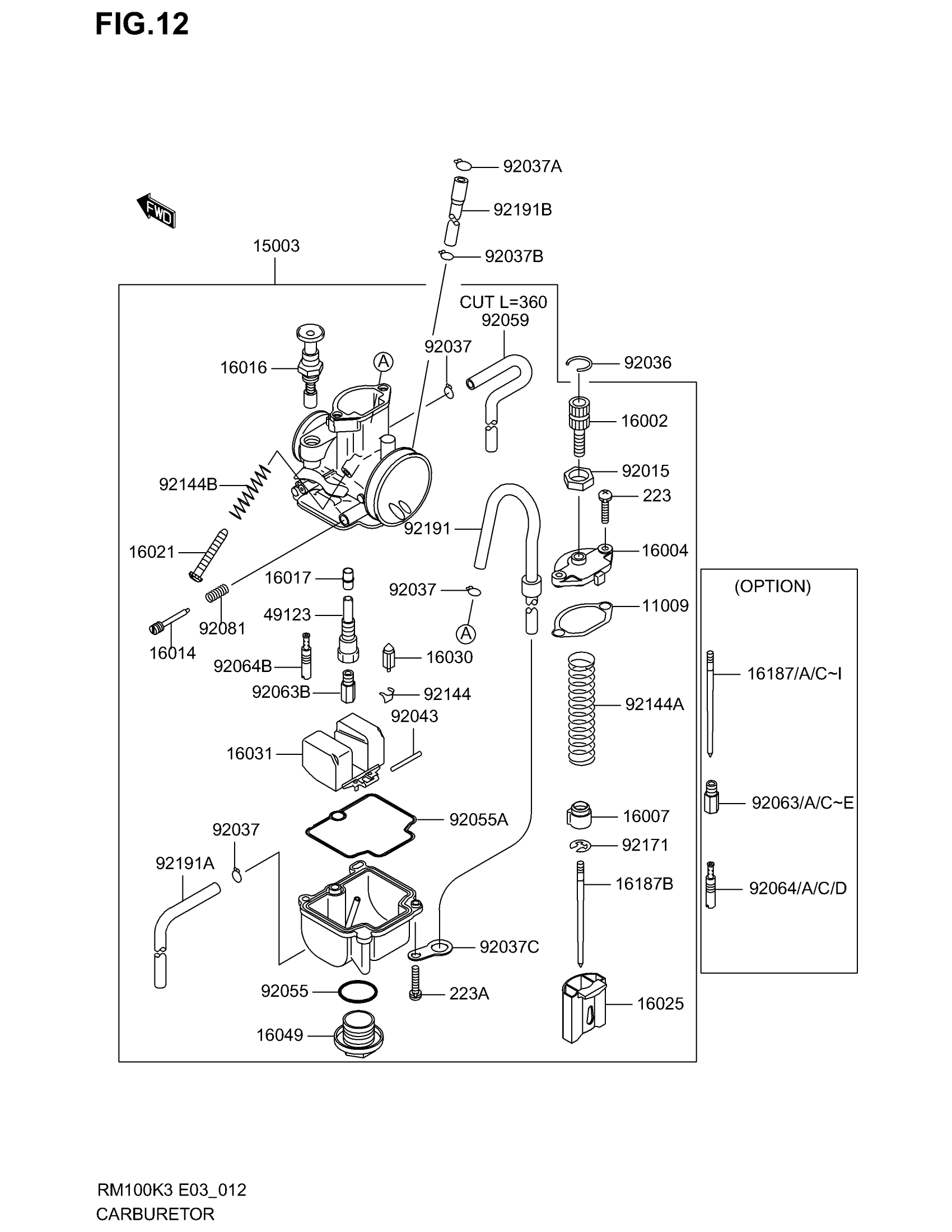

Suzuki RM100 (2003) CARBURETOR Diagram

#

Description
Price

11009

GASKET,MIXING CHAMBER

K1100-91759

Unavailable

15003

CARBURETOR-ASSY

K1500-31643

Unavailable

16002

ADJUSTER-CABLE

K1600-21056

Unavailable

16004

CAP-CHAMBER,MIXING

K1600-41065

Unavailable

16007

SEAT-SPRING,THROTTLE VALVE

K1600-71155

Unavailable

16014

SCREW-PILOT AIR

K1601-41058

Unavailable

16016

PLUNGER,STARTER

K1601-61075

Unavailable

16017

JET-NEEDLE

K1601-71431

Unavailable

16021

SCREW-THROTTLE STOP

K1602-11161

Unavailable

16025

VALVE-THROTTLE,CA3.5

K1602-51220

Unavailable

16030

VALVE-FLOAT

K1603-01064

Unavailable

16031

FLOAT

K1603-11065

Unavailable

16049

COVER-MAIN JET

K1604-91051

Unavailable

16187

NEEDLE-JET,NAPD | OPTION

K1618-71177

Unavailable

16187A

NEEDLE-JET,NAPE | OPTION

K1618-71178

Unavailable

16187B

NEEDLE-JET,NAPF

K1618-71179

Unavailable

16187C

NEEDLE-JET,NAPG | OPTION

K1618-71180

Unavailable

16187D

NEEDLE-JET,NAPH | OPTION

K1618-71181

Unavailable

16187E

NEEDLE-JET,NAQD | OPTION

K1618-71183

Unavailable

16187F

NEEDLE-JET,NAQE | OPTION

K1618-71184

Unavailable

16187G

NEEDLE-JET,NAQF | OPTION

K1618-71185

Unavailable

16187H

NEEDLE-JET,NAQG | OPTION

K1618-71186

Unavailable

16187I

NEEDLE-JET,NAQH | OPTION

K1618-71187

Unavailable

49123

HOLDER-MAIN JET

K4912-31054

Unavailable

92015

NUT,CABLE ADJUST LOCK

K9201-51574

Unavailable

92036

RING-SNAP

KK920-36018

$3.08

92037

CLAMP,TUBE

K9203-71396

$4.28

92037A

CLAMP,TUBE

KK920-37147

$5.42

92037B

CLAMP

K9203-71712

Unavailable

92037C

CLAMP,HOSE

K9203-71969

Unavailable

92043

PIN,FLOAT

K9204-31148

Unavailable

92055

RING-O,MAIN JET COVER

K9205-51167

$7.73

92055A

RING-O,FLOAT CHAMBER

K9205-51389

Unavailable

92059

TUBE,4X7X480

K9205-91898

Unavailable

92063

JET-MAIN,#132 | OPTION

K9206-31337

Unavailable

92063A

JET-MAIN,#135 | OPTION

K9206-31338

Unavailable

92063B

JET-MAIN,#138

K9206-31359

Unavailable

92063C

JET-MAIN,#140 | OPTION

K9206-31360

Unavailable

92063D

JET-MAIN,#142 | OPTION

K9206-31361

Unavailable

92063E

JET-MAIN,#148 | OPTION

K9206-31363

Unavailable

92064

JET-PILOT,#40 | OPTION

K9206-41140

Unavailable

92064A

JET-PILOT,#42 | OPTION

K9206-41141

Unavailable

92064B

JET-PILOT,#45

K9206-41142

Unavailable

92064C

JET-PILOT,#48 | OPTION

K9206-41143

Unavailable

92064D

JET-PILOT,#50 | OPTION

K9206-41144

Unavailable

92081

SPRING,ADJUST SCREW

K9208-11555

Unavailable

92144

SPRING,FLOAT VALVE

K9214-41178

Unavailable

92144A

SPRING,THROTTLE VALVE

K9214-41566

Unavailable

92144B

SPRING,THROTTLE STOP SCREW

K9214-41782

Unavailable

92171

CLAMP

K9217-11323

Unavailable

92191

TUBE,4X7X560

K9219-11243

Unavailable

92191A

TUBE,4X7X420

K9219-11591

Unavailable

92191B

TUBE

K9219-11610

Unavailable

223

NO DESCRIPTION AVAILABLE This part replaces KK223-C0414.

K223A-B0414

Unavailable

223A

SCREW-PAN-WS-CROS

KK223-C0416

Unavailable
