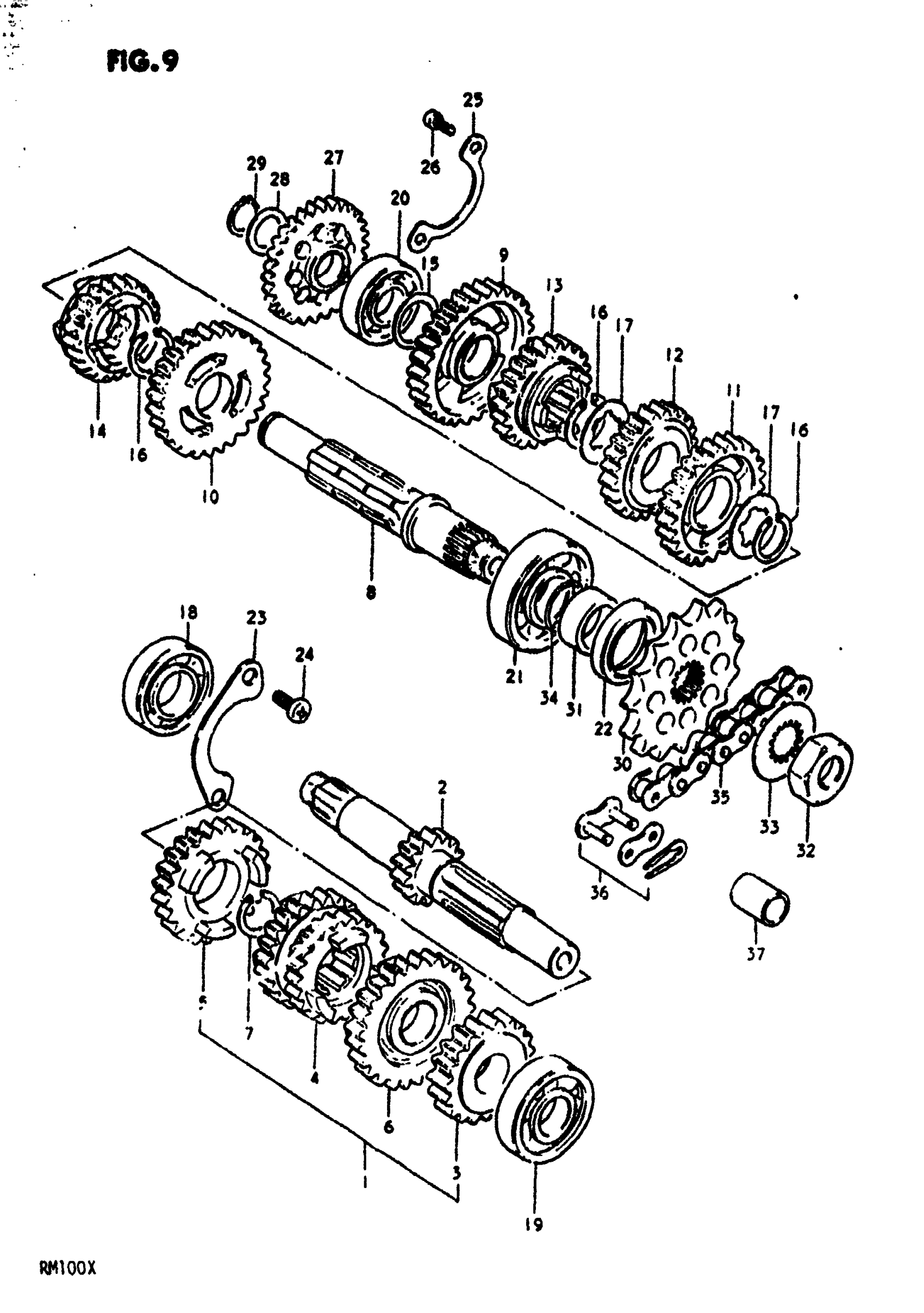

Suzuki RM100 (1981) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N,T This part replaces 24120-40200.

24120-40210

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X; Includes Item(s) 2 - 7 This part replaces 24120-40201.

24120-40210

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 24121-40200.

24121-40210

Unavailable

3

GEAR,2ND DRIVE | MODEL N,T This part replaces 24221-41301.

24221-41304

Unavailable

3

GEAR,2ND DRIVE | MODEL X This part replaces 24221-41302.

24221-41304

Unavailable

4

GEAR, 3/4 DRIVE (NT:17/21) This part replaces 24231-41300.

24231-14110

Unavailable

5

GEAR, 5TH DRIVE (NT:22) This part replaces 24251-41300.

24251-14101

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 24260-41301.

24260-40210

Unavailable

7

CIRCLIP

09380-20007

$2.43

8

DRIVESHAFT | MODEL N,T This part replaces 24131-41302.

24131-41303

Unavailable

8

DRIVESHAFT | MODEL X

24131-41303

Unavailable

9

GEAR, 1ST DRIVEN (NT:28)

24310-41300

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 24321-41300.

24321-41310

Unavailable

11

GEAR, 3RD DRIVEN (NT:24) | MODEL N,T This part replaces 24331-41301.

24331-41302

Unavailable

11

GEAR, 3RD DRIVEN (NT:24) | MODEL X

24331-41302

Unavailable

12

GEAR, 4TH DRIVEN (NT:25)

24341-41303

Unavailable

13

GEAR, 5TH DRIVEN (NT:23)

24351-41301

Unavailable

14

GEAR, 6TH DRIVEN (NT:22)

24361-41300

Unavailable

15

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

16

CIRCLIP

09380-20007

$2.43

17

WASHER

09167-20011

$2.31

18

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

19

BEARING, LH

08113-60020

$16.01

20

BEARING (15X35X11) This part replaces 08113-62020.

08113-62027

$14.40

21

BEARING, LH

09262-20043

Unavailable

22

OIL SEAL

09283-25035

$6.51

23

HOLDER, BEARING

24741-48000

Unavailable

24

SCREW This part replaces 02112-06128.

02112-06127

$1.84

25

HOLDER, BEARING

24751-40200

Unavailable

26

SCREW This part replaces 02112-06108.

02112-06107

$1.49

27

GEAR, KICK IDLE (NT:28)

26260-40200

Unavailable

28

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

29

CIRCLIP This part replaces 08331-31159.

08331-3115A

$2.25

30

SPROCKET, ENGINE (NT:13) | STD

27511-41701

Unavailable

30

SPROCKET (NT:14) | OPT This part replaces 27511-41301.

27511-41310

$23.98

30

SPROCKET, ENGINE (NT:15) | OPT

27511-41711

Unavailable

31

SPACER

09180-20039

$7.31

32

NUT

09140-16013

Unavailable

33

WASHER

09167-20012

$2.44

34

O RING

09280-20001

$1.65

35

CHAIN, DRIVE (428x132L) | MODEL N This part replaces 27600-41311.

27600-40220

Unavailable

35

CHAIN, DRIVE (428x132L) | MODEL T,X; Includes Item(s) 36 - 36

27600-40220

Unavailable

36

JOINT (DID)

27620-28310

Unavailable

36

JOINT (RK)

27620-40220

$11.07

37

CUSHION, CHAIN

09320-13001

Unavailable
