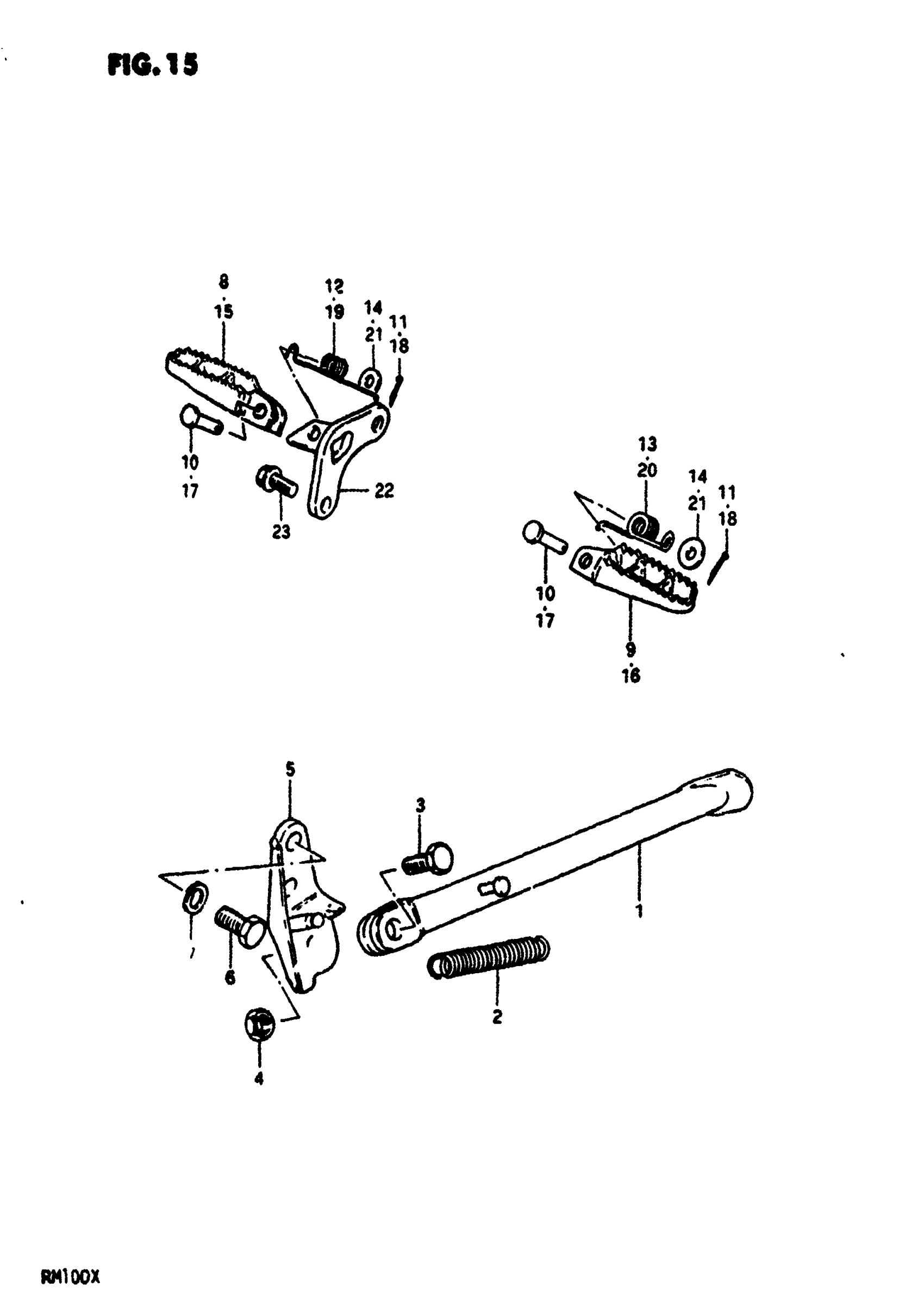

Suzuki RM100 (1981) STAND - FOOTREST Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 42310-48100.

42310-48410

Unavailable

2

SPRING | MODEL N This part replaces 09443-14005.

09443-14017

$3.04

2

SPRING | MODEL T,X

09443-14017

$3.04

3

BOLT (10X30)

09100-10067

$2.61

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

BRACKET

42330-40400

Unavailable

6

BOLT

09100-10118

Unavailable

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

8

FOOTREST, FRONT RH (BLACK) | MODEL N This part replaces 43550-40400.

43551-37202-019

Unavailable

9

FOOTREST, FRONT LH (BLACK) | MODEL N This part replaces 43560-40400.

43561-40401-019

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL N; TO 09200-08033MODEL N; WITH 04111-30208 This part replaces 09200-08028.

09200-08033

Unavailable

11

COTTER PIN | MODEL N This part replaces 04111-20208.

04111-2020A

$1.49

12

SPRING, RH | MODEL N

09448-16017

Unavailable

13

SPRING, LH | MODEL N

09448-16016

Unavailable

14

WASHER | MODEL N This part replaces 08322-21088.

08322-01087

$2.13

15

FOOTREST, FRONT RH (BLACK) | MODEL T,X This part replaces 43551-40400.

43551-37202-019

Unavailable

16

FOOTREST, FRONT LH (BLACK) | MODEL T,X This part replaces 43561-40400.

43561-40401-019

Unavailable

17

PIN | MODEL T,X This part replaces 09200-08035.

09200-08064

$6.13

18

COTTER PIN | MODEL T,X This part replaces 04111-20208.

04111-2020A

$1.49

19

SPRING | MODEL T,X This part replaces 09448-14014.

09448-14014-XC0

Unavailable

20

SPRING, LH | MODEL T,X

09448-14015

Unavailable

21

WASHER | MODEL T,X This part replaces 08322-21088.

08322-01087

$2.13

22

HOLDER, FOOTREST RH | MODEL N This part replaces 43510-40200.

43510-40201

Unavailable

22

HOLDER, FOOTREST RH | MODEL T, X

43510-40201

Unavailable

23

BOLT

09103-10100

$5.57
