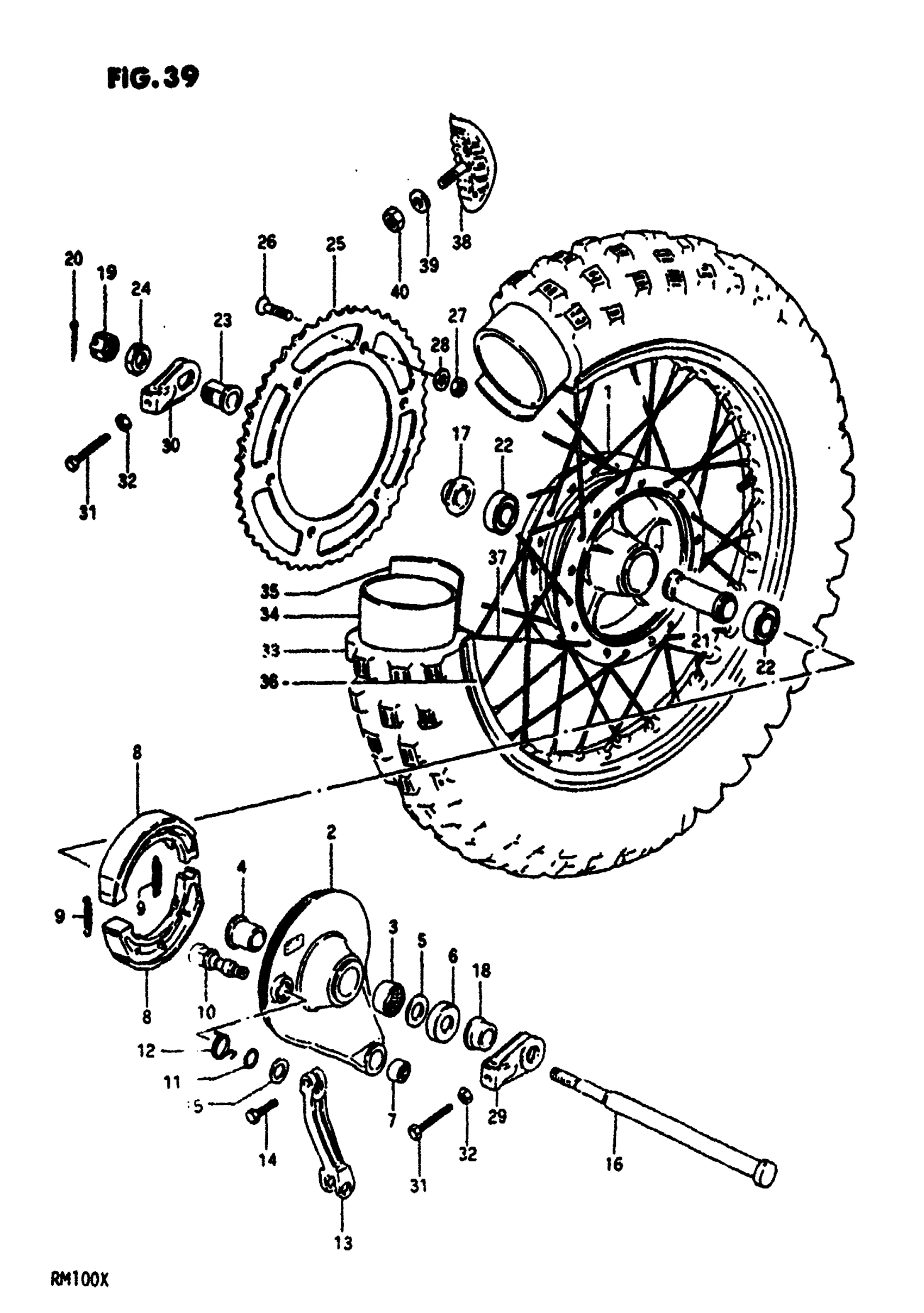

Suzuki RM100 (1981) REAR WHEEL (RM100X) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-40202

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 64200-41840.

64200-41841

Unavailable

3

BEARING

09263-22025

Unavailable

4

SPACER, PANEL

64213-40300

Unavailable

5

THRUST WASHER This part replaces 09160-15028.

08211-15341

$2.85

6

COVER This part replaces 64845-40300.

61262-22A01

$6.05

7

BEARING This part replaces 64352-40400.

64352-40401

Unavailable

8

SHOE SET,BRAKE This part replaces 64410-40200.

64400-13810

Unavailable

9

SPRING This part replaces 09443-07001.

09443-07025

$2.08

10

CAM, BRAKE

54441-01002

$18.80

11

DUST SEAL

09280-12001

$2.90

12

SPRING

09448-30005

Unavailable

13

LEVER, BRAKE CAM

64451-40200

Unavailable

14

BOLT This part replaces 01107-06258.

01500-06257

$1.97

15

WASHER | 12.5x20x1

09160-12011

$1.54

16

AXLE, REAR

64711-40210

Unavailable

17

SPACER, AXIE LH

64750-40210

Unavailable

18

SPACER, AXIE RH

09180-15049

Unavailable

19

NUT This part replaces 08314-31128.

08314-3112A

$2.41

20

PIN This part replaces 04111-30308.

04111-3030A

$1.49

21

NO DESCRIPTION AVAILABLE This part replaces 64730-40300.

64730-40301

Unavailable

22

BEARING

08123-62027

$18.57

23

SPACER, CHAIN ADJUSTER

64791-28001

$23.32

24

NUT This part replaces 09140-18005.

09140-18501

$2.93

25

SPROCKET, REAR (NT:60)

64511-40242

Unavailable

25

SPROCKET, REAR (NT.58) | OPT

64511-40232

Unavailable

25

SPROCKET, REAR (NT:62) | OPT

64511-40252

Unavailable

26

SCREW

09120-08004

$2.40

27

NUT This part replaces 08319-31088.

08319-3108A

$2.32

28

WASHER This part replaces 08322-11088.

08322-01087

$2.13

29

ADJUSTER,CHAIN, This part replaces 61410-28004.

61410-28005

$10.09

30

LH CHAIN ADJUST This part replaces 61420-28003.

61420-28004

$11.48

31

BOLT

09100-08146

$2.82

32

NUT This part replaces 08310-12088.

08310-00087

$2.13

33

TIRE (41018) | BS This part replaces 65100-40230.

65100-14130

Unavailable

34

TUBE ASSY, WHEEL INNER This part replaces 65200-41330.

65200-42AA1

$65.62

35

PROTECTOR, INNER TUBE

65261-33030

$5.50

36

RIM, WHEEL (185x18)

65311-40200

Unavailable

37

SPOKE ASSY, REAL

65320-40210

Unavailable

38

STOPPER, BEAD This part replaces 65270-30001.

65270-43D00

$58.75

39

WASHER This part replaces 08322-11088.

08322-01087

$2.13

40

NUT This part replaces 08310-12088.

08310-00087

$2.13
