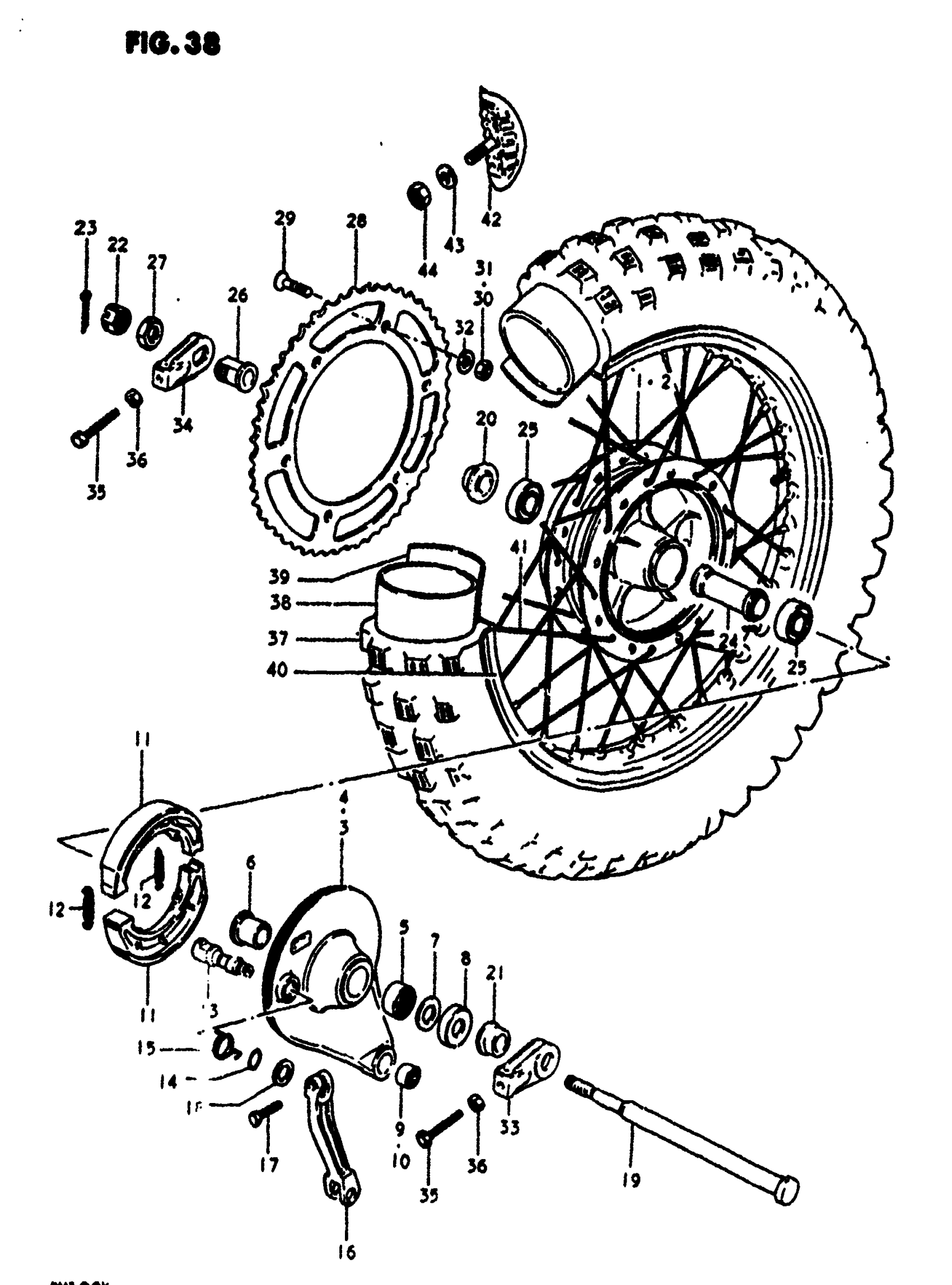

Suzuki RM100 (1981) REAR WHEEL (RM100N Diagram

#

Description
Price

1

HUB, REAR WHEEL | MODEL N This part replaces 64110-40200.

64110-40202

Unavailable

2

HUB, REAR WHEEL | MODEL T This part replaces 64110-40201.

64110-40202

Unavailable

2

HUB, REAR WHEEL | MODEL T

64110-40202

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 64210-40200.

64210-40202

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 64200-41840.

64200-41841

Unavailable

5

BEARING

09263-22025

Unavailable

6

SPACER, PANEL

64213-40300

Unavailable

7

THRUST WASHER This part replaces 09160-15028.

08211-15341

$2.85

8

COVER This part replaces 64845-40300.

61262-22A01

$6.05

9

BUSH | MODEL N

09319-10008

$7.40

10

BEARING | MODEL T This part replaces 64352-40400.

64352-40401

Unavailable

11

SHOE SET,BRAKE This part replaces 64410-40200.

64400-13810

Unavailable

12

SPRING This part replaces 09443-07001.

09443-07025

$2.08

13

CAM, BRAKE

54441-01002

$18.80

14

DUST SEAL

09280-12001

$2.90

15

SPRING | MODEL T

09448-30005

Unavailable

16

LEVER, BRAKE CAM

64451-40200

Unavailable

17

BOLT This part replaces 01107-06258.

01500-06257

$1.97

18

WASHER | 12.5x20x1

09160-12011

$1.54

19

AXLE, REAR

64711-40210

Unavailable

20

SPACER, AXLE LH

64750-40210

Unavailable

21

SPACER, AXLE RH

09180-15049

Unavailable

22

NUT This part replaces 08314-31128.

08314-3112A

$2.41

23

PIN This part replaces 04111-30308.

04111-3030A

$1.49

24

NO DESCRIPTION AVAILABLE This part replaces 64730-40300.

64730-40301

Unavailable

25

BEARING

08123-62027

$18.57

26

SPACER, CHAIN ADJUSTER

64791-28001

$23.32

27

NUT This part replaces 09140-18005.

09140-18501

$2.93

28

SPROCKET, REAR (NT:60) | MODEL N This part replaces 64511-40240.

64511-40242

Unavailable

28

SPROCKET, REAR (NT:62) | MODEL T This part replaces 64511-40251.

64511-40252

Unavailable

28

SPROCKET, REAR (NT.58) | MODEL N This part replaces 64511-40230.

64511-40232

Unavailable

28

SPROCKET, REAR (NT:62) | MODEL N This part replaces 64511-40250.

64511-40252

Unavailable

28

SPROCKET, REAR (NT.58) | MODEL T This part replaces 64511-40231.

64511-40232

Unavailable

28

SPROCKET, REAR (NT:60) | MODEL T

64511-40242

Unavailable

29

SCREW

09120-08004

$2.40

30

NUT | MODEL N

09159-08021

Unavailable

31

NUT | MODEL T This part replaces 08319-31088.

08319-3108A

$2.32

32

WASHER | MODEL T This part replaces 08322-11088.

08322-01087

$2.13

33

ADJUSTER,CHAIN, This part replaces 61410-28004.

61410-28005

$10.09

34

LH CHAIN ADJUST This part replaces 61420-28003.

61420-28004

$11.48

35

BOLT

09100-08146

$2.82

36

NUT This part replaces 08310-12088.

08310-00087

$2.13

37

TIRE (41018) This part replaces 65100-40230.

65100-14130

Unavailable

38

TUBE ASSY, WHEEL INNER This part replaces 65200-41330.

65200-42AA1

$65.62

39

PROTECTOR, INNER TUBE

65261-33030

$5.50

40

RIM, WHEEL (185x18)

65311-40200

Unavailable

41

SPOKE SET | MODEL N This part replaces 65300-40821.

65320-40200

Unavailable

41

SPOKE ASSY, REAR | MODEL T

65320-40201

Unavailable

42

STOPPER, BEAD This part replaces 65270-30001.

65270-43D00

$58.75

43

WASHER This part replaces 08322-11088.

08322-01087

$2.13

44

NUT This part replaces 08310-12088.

08310-00087

$2.13
