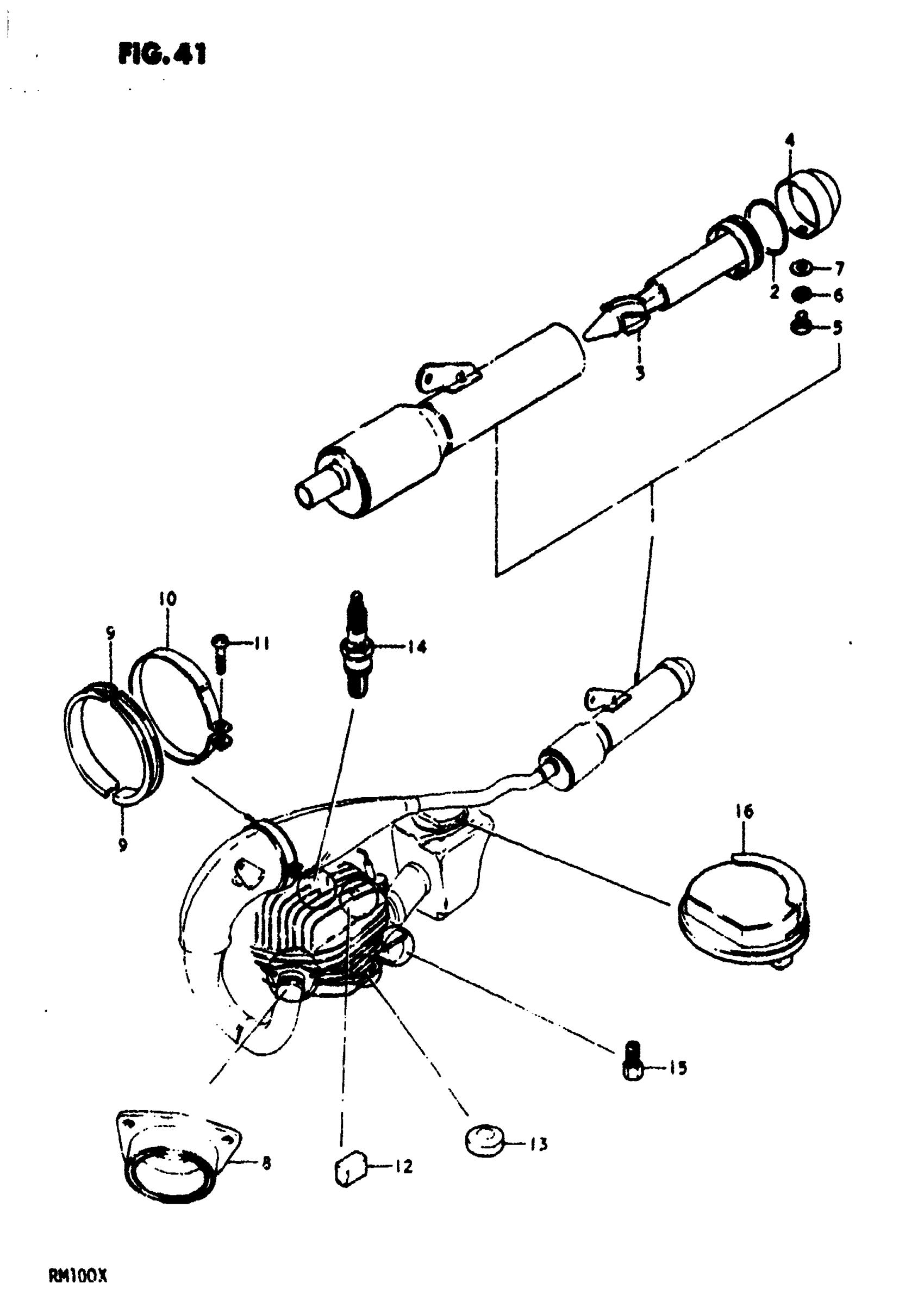

Suzuki RM100 (1981) OPTIONAL Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | MODEL N,T This part replaces 14300-40822.

14300-40823

Unavailable

0

OFF-ROAD SOUND KIT | MODEL X; Includes Item(s) 1 - 16

14300-40870

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 14303-40210.

14303-40210-H01

Unavailable

2

O RING

09280-55001

$5.52

3

TUBE, CLEAN OUT

14850-30510

Unavailable

4

COVER, TAIL This part replaces 14649-41500.

14649-30520

Unavailable

5

SCREW

09128-06013

$1.49

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

NO DESCRIPTION AVAILABLE | MODEL N,T This part replaces 14170-40220.

14170-40240

Unavailable

8

FLANGE, EXHAUST PIPE | MODEL X

14170-40260

Unavailable

9

RUBBER, MUFFLER

14319-41700

Unavailable

10

CLAMP

09402-92601

Unavailable

11

SCREW This part replaces 02112-06258.

02112-06257

$1.78

12

RUBBER PAD, CYLINDER HEAD

11252-25000

$4.52

13

RUBBER PAD This part replaces 11252-28000.

11252-13630

$3.25

14

SPARK PLUG (NGK,B8EGV) This part replaces 09482-00096.

09482-00208

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 09482-00158.

09482-00270-111

Unavailable

15

JET, MAIN (120) | MODEL N This part replaces 09491-24002.

09491-24014

Unavailable

15

JET, MAIN (180) | MODEL T,X This part replaces 09491-36003.

09491-36006

Unavailable

16

CAP, AIR CLEANER

13740-40200

Unavailable
