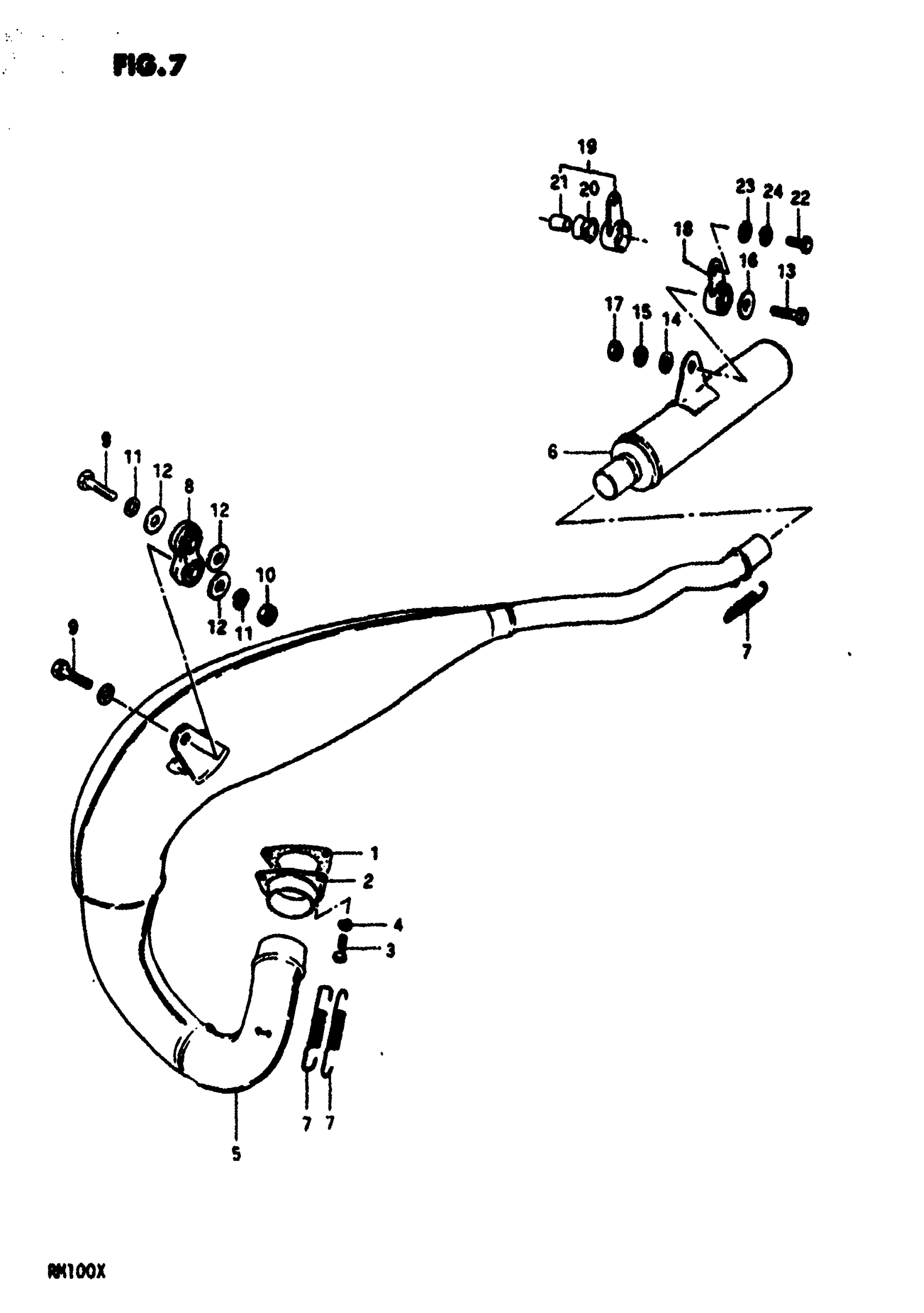

Suzuki RM100 (1981) MUFFLER Diagram

#

Description
Price

1

GASKET,EXH FLAN | MODEL N,T This part replaces 14181-40200.

14181-40200-H17

Unavailable

1

GASKET, EXHAUST FRANGE | MODEL X

14181-40250

Unavailable

2

FLANGE, EXHAUST PIPE | MODEL N

14170-40200

Unavailable

2

FLANGE, EXHAUST PIPE | MODEL T

14170-41300

Unavailable

2

FLANGE, EXHAUST PIPE | MODEL X

14170-40250

Unavailable

3

SCREW This part replaces 02112-06168.

02112-06167

$1.49

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 14310-40200.

14310-40200-H01

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 14310-40210.

14310-40210-H01

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 14310-40250.

14310-40250-H01

Unavailable

6

MUFFLER, 2ND | MODEL N,T This part replaces 14330-40200.

14330-40201

$31.65

6

MUFFLER, 2ND | MODEL X

14330-40201

$31.65

7

SPRING

09443-11002

$3.10

8

DAMPER

14770-40000

Unavailable

9

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

10

NUT This part replaces 08310-12088.

08310-00087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

WASHER This part replaces 09160-08035.

09160-08130

$2.03

13

BOLT This part replaces 01107-08308.

01500-08307

$3.04

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

17

NUT This part replaces 08310-12088.

08310-00087

$2.13

18

DAMPER, REAR | MODEL N,T This part replaces 14770-16440.

14700-40810

Unavailable

19

DAMPER, REAR | MODEL X; Includes Item(s) 20 - 21

14700-40810

Unavailable

20

CUSHION, EXHAUST SUPPORT | MODEL X This part replaces 09320-12026.

09320-12043

$7.98

21

SPACER 8.2X12X1 | MODEL X This part replaces 09180-08032.

09180-08143

$3.77

22

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

23

WASHER This part replaces 08322-11088.

08322-01087

$2.13

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
